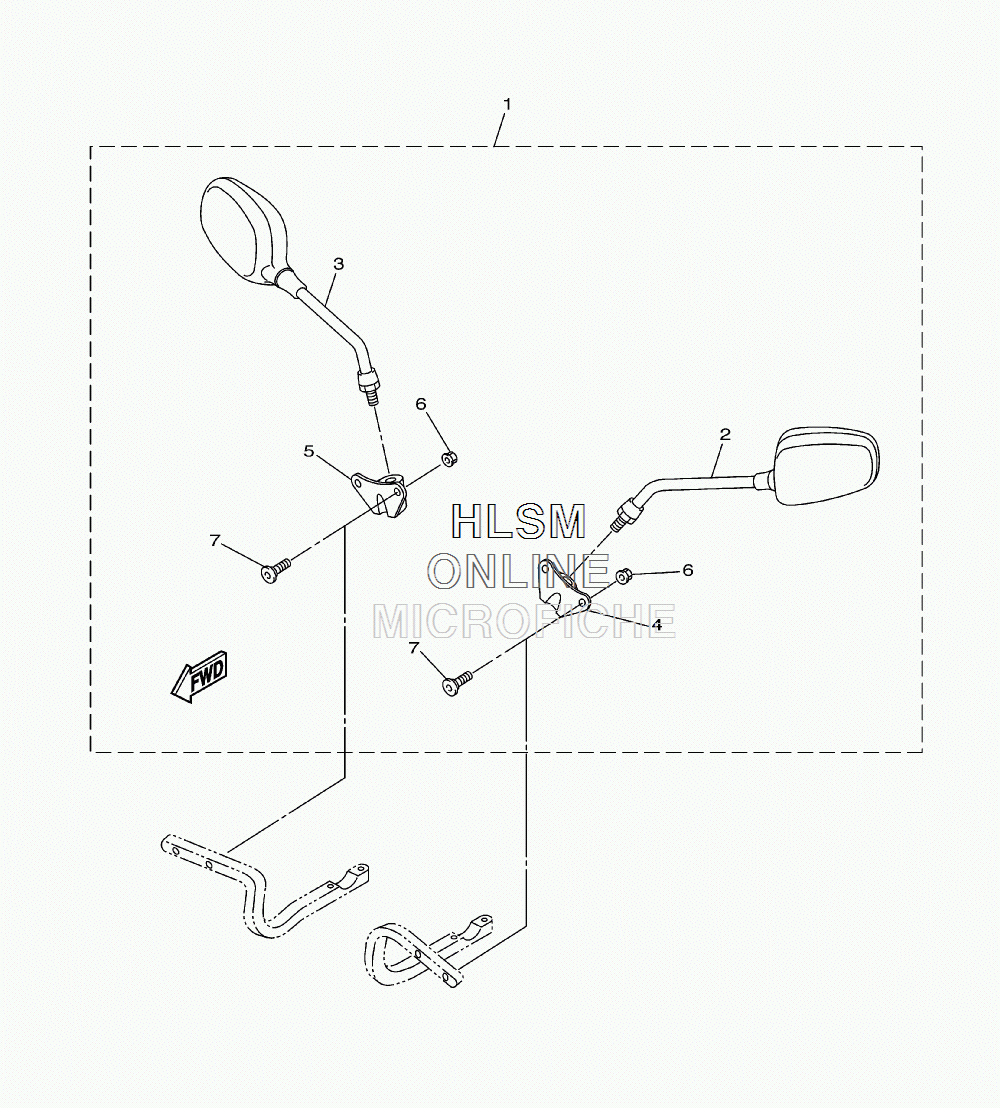

REAR VIEW MIRROR ASSY (OPTION) для Yamaha FX NYTRO MTX - 2008 года выпуска`
-
№АртикулНазвание
-
18HB-W2628-00-00 REAR VIEW MIRROR SET (OPT)REAR VIEW MIRROR SET (OPT)
-
24GA-26280-10-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
34GA-26290-10-00 ...REAR VIEW MIRROR ASSY (RIGHT)...REAR VIEW MIRROR ASSY (RIGHT)
-
48HB-2628N-00-00 ...BASE, MIRROR (LEFT)...BASE, MIRROR (LEFT)
-
58HB-2628N-10-00 ...BASE, MIRROR (RIGHT)...BASE, MIRROR (RIGHT)
-
695602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
790109-06234-00 ...BOLT...BOLT
