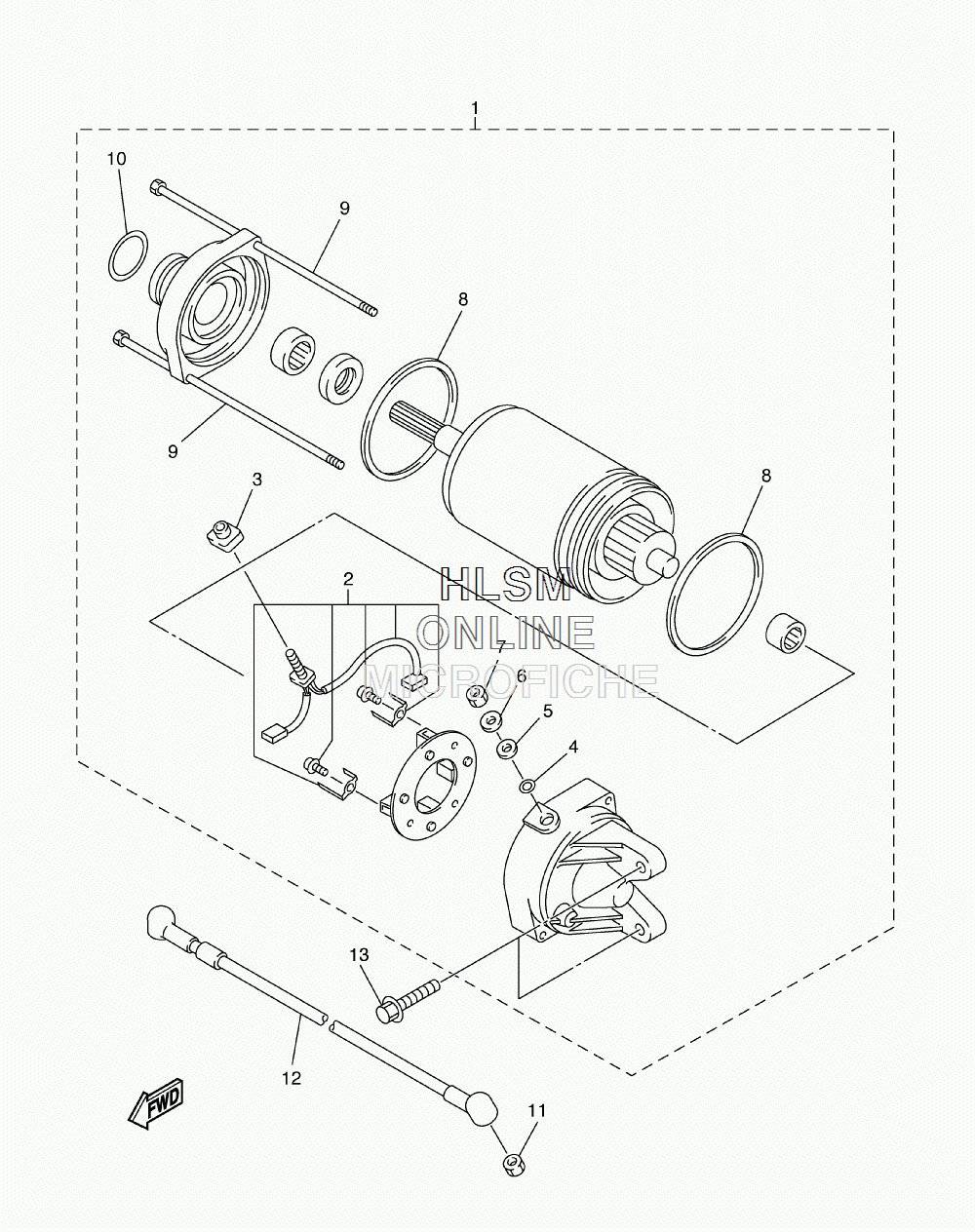

STARTER - ELECTRICAL STARTER ASSY для Yamaha APEX MTX - 2008 года выпуска`
-
№АртикулНазвание
-
18FP-81890-00-00 MOTOR ASSYMOTOR ASSY
-
28ES-81801-00-00 ...BRUSH SET...BRUSH SET
-
35PX-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
493210-06001-00 ...O-RING...O-RING
-
58FA-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
690201-06726-00 ...WASHER, PLATE...WASHER, PLATE
-
795304-06700-00 ...NUT...NUT
-
85PX-81861-00-00 ...GASKET...GASKET
-
98FA-81846-00-00 ...SCREW...SCREW
-
1093210-24235-00 ...O-RING...O-RING
-
1195304-06700-00 NUTNUT
-
128FA-8183G-00-00 CORD COMP.CORD COMP.
-
1395812-08030-00 BOLT, FLANGEBOLT, FLANGE
