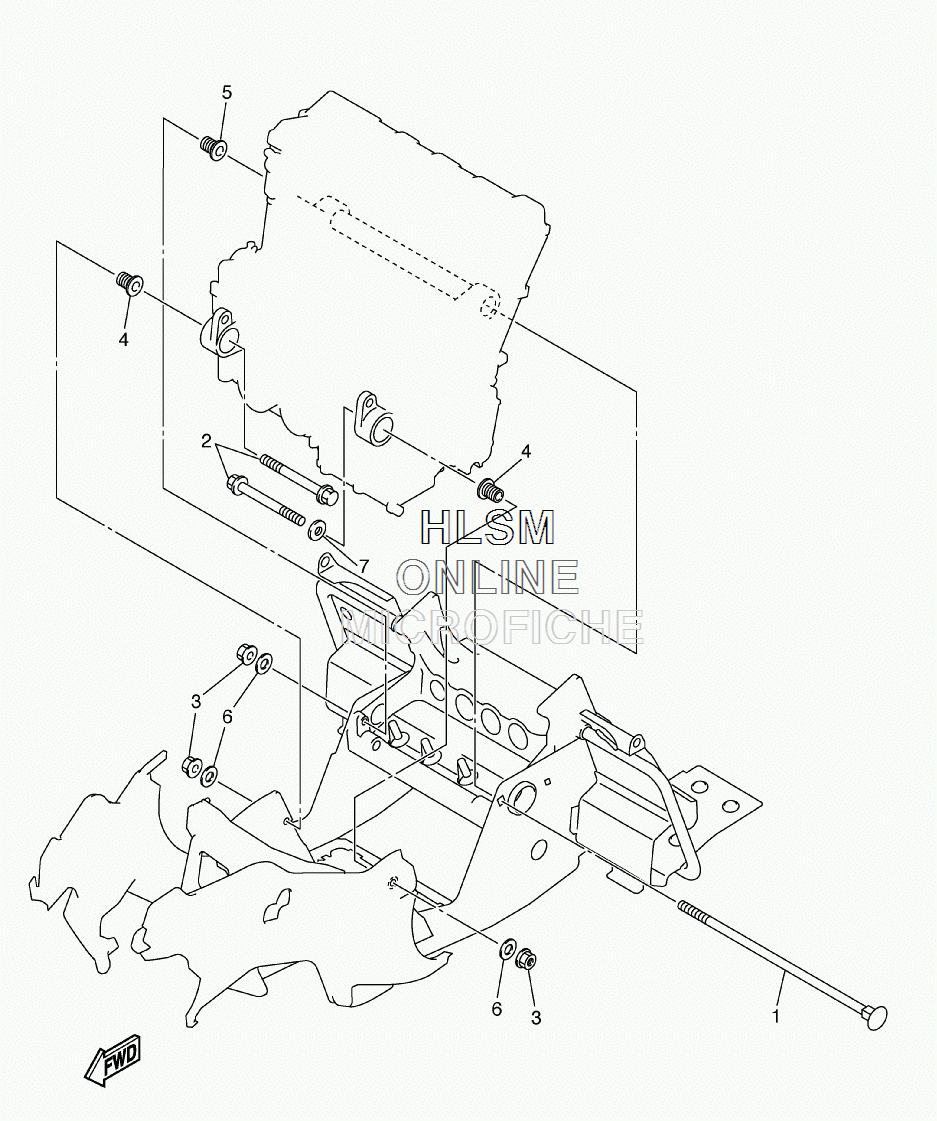

ENGINE MOUNTING для Yamaha APEX MTX - 2008 года выпуска`
-
№АртикулНазвание
-
18FA-21481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
295817-12100-00 BOLT, FLANGEBOLT, FLANGE
-
390179-12004-00 NUTNUT
-
48FG-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
58FG-2149C-00-00 BOLTBOLT
-
690201-120T5-00 WASHER, PLATEWASHER, PLATE
-
790201-125A3-00 WASHER, PLATEWASHER, PLATE
