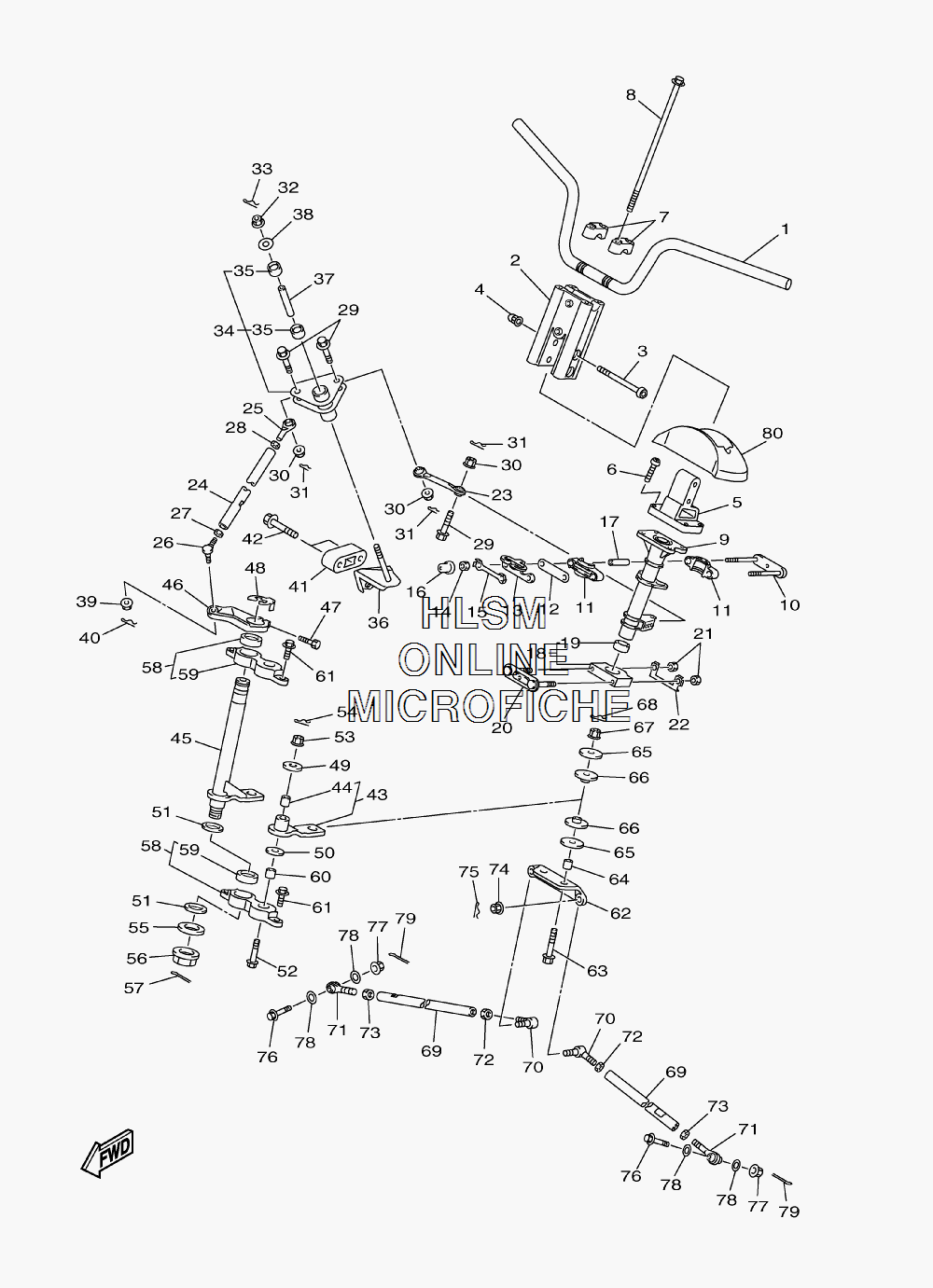

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VENTURE LITE 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
18GJ-26111-00-00 HANDLEBARHANDLEBAR
-
28GJ-2381B-00-00 JOINTJOINT
-
392014-08070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490176-08068-00 NUT, CROWNNUT, CROWN
-
58GF-2381T-10-00 BRKT 20BRKT 20
-
692014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
78K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
895814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
98GC-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
108FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
118FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
128FA-23867-00-00 HOLDER 2HOLDER 2
-
138GC-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1495312-08600-00 NUTNUT
-
151UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
168GC-82532-00-00 CAPCAP
-
1790387-09006-00 COLLARCOLLAR
-
188GC-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1993315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
208GJ-23857-00-00 HOLDERHOLDER
-
2195312-08600-00 NUTNUT
-
228GJ-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
238GC-23828-00-00 ROD, STEERINGROD, STEERING
-
248GC-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
258GC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
268CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2795302-10700-00 NUTNUT
-
2890170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2990105-08321-00 BOLT, FLANGEBOLT, FLANGE
-
3095702-08500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3190468-16001-00 CLIPCLIP
-
3295702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
3390468-18189-00 CLIPCLIP
-
348GC-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
3593317-41767-00 ...BEARING...BEARING
-
368GC-23881-00-00 BRACKET 1BRACKET 1
-
378GC-23846-00-00 SHAFT, PITMANSHAFT, PITMAN
-
3890201-121U3-00 WASHER, PLATEWASHER, PLATE
-
3995702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
4091402-25020-00 PIN, COTTERPIN, COTTER
-
418GJ-23448-00-00 SPACERSPACER
-
4295812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
438GC-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
448GC-23526-00-00 ...BUSH...BUSH
-
458GC-2389M-00-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
468GC-2381A-00-00 ARM, INSIDEARM, INSIDE
-
4791312-08025-00 BOLTBOLT
-
488GC-23183-00-00 CIRCLIPCIRCLIP
-
4990201-124G7-00 WASHER, PLATEWASHER, PLATE
-
5090201-25291-00 WASHER, PLATEWASHER, PLATE
-
5190201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
528GC-23346-00-00 BOLT 1BOLT 1
-
5395702-12500-00 NUT, WITH WASHERNUT, WITH WASHER
-
5490468-12006-00 CLIPCLIP
-
5590201-220T0-00 WASHER, PLATEWASHER, PLATE
-
5690179-22412-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5791402-20035-00 PIN, COTTERPIN, COTTER
-
588GC-2389H-00-00 BRACKET, PIVOTBRACKET, PIVOT
-
5993315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
608GC-23113-00-00 COLLARCOLLAR
-
6195822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
628GC-23826-00-00 ARM, IDLERARM, IDLER
-
6390105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6490387-10008-00 COLLARCOLLAR
-
6590201-100S2-00 WASHER, PLATEWASHER, PLATE
-
668GC-23362-00-00 BUSH 1BUSH 1
-
6795702-10500-00 NUT, FLANGENUT, FLANGE
-
6890468-18189-00 CLIPCLIP
-
698GC-23831-00-00 ROD, TIEROD, TIE
-
708CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
718GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
7295302-10700-00 NUTNUT
-
7390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
7495702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
7590468-18189-00 CLIPCLIP
-
768GC-23493-00-00 BOLTBOLT
-
7795702-08500-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
7890201-06018-00 WASHER, PLATEWASHER, PLATE
-
7991402-20020-00 PIN, COTTERPIN, COTTER
-
808GJ-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
