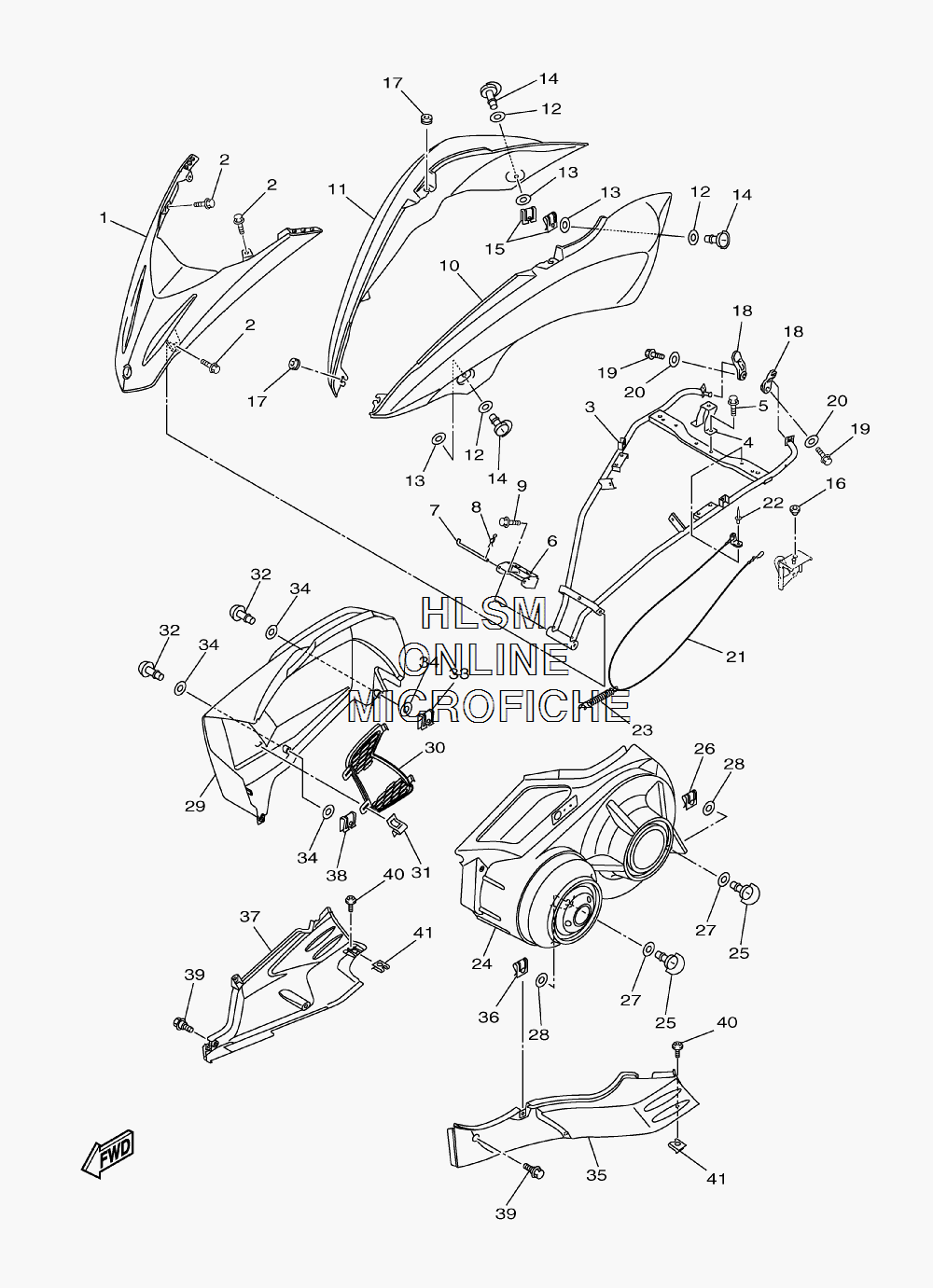

HOOD ASSY для Yamaha VENTURE LITE 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
18GJ-77111-00-33 SHROUD FOR YBSHROUD FOR YB
-
18GJ-77111-00-P0 SHROUD FOR MBM2SHROUD FOR MBM2
-
290109-06220-00 BOLTBOLT
-
38GJ-77145-00-00 HINGE 1HINGE 1
-
48GJ-77125-00-00 STAY 1STAY 1
-
595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
68GJ-77146-00-00 HINGE 2HINGE 2
-
78GJ-77384-00-00 PINPIN
-
890468-12120-00 CLIPCLIP
-
995822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
108GJ-2835U-20-00 PANEL 1 FOR YBPANEL 1 FOR YB
-
108GJ-2835U-00-00 PANEL 1 FOR MBM2PANEL 1 FOR MBM2
-
118GJ-2835V-20-00 PANEL 2 FOR YBPANEL 2 FOR YB
-
118GJ-2835V-00-00 PANEL 2 FOR MBM2PANEL 2 FOR MBM2
-
122TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
135TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
143FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
154XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
164N0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1790480-12053-00 GROMMETGROMMET
-
188GJ-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1990109-085G1-00 BOLTBOLT
-
2092902-10200-00 WASHERWASHER
-
218GJ-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
2290267-47187-00 RIVET, BLINDRIVET, BLIND
-
2389A-77159-00-00 CLAMP, RODCLAMP, ROD
-
248GC-2197H-00-00 HOOD 3 FOR YBHOOD 3 FOR YB
-
248GC-2197H-20-00 HOOD 3 FOR MBM2HOOD 3 FOR MBM2
-
253FV-28386-00-00 HEADHEAD
-
264XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
272TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
285TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
298GC-2198H-00-00 HOOD 4 FOR YBHOOD 4 FOR YB
-
298GC-2198H-20-00 HOOD 4 FOR MBM2HOOD 4 FOR MBM2
-
308GC-77134-00-00 LOUVER 4LOUVER 4
-
3190468-06001-00 CLIPCLIP
-
325PW-28386-00-00 HEADHEAD
-
335PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
342TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
358GC-2196A-00-00 FRAME UNDER 1 FOR YBFRAME UNDER 1 FOR YB
-
358GC-2196A-20-00 FRAME UNDER 1 FOR MBM2FRAME UNDER 1 FOR MBM2
-
364XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
378GC-2196E-00-00 FRAME, UNDER 2 FOR YBFRAME, UNDER 2 FOR YB
-
378GC-2196E-20-00 FRAME, UNDER 2 FOR MBM2FRAME, UNDER 2 FOR MBM2
-
385PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3990109-06220-00 BOLTBOLT
-
4090149-06105-00 SCREWSCREW
-
4190183-06100-00 NUT, SPRINGNUT, SPRING
