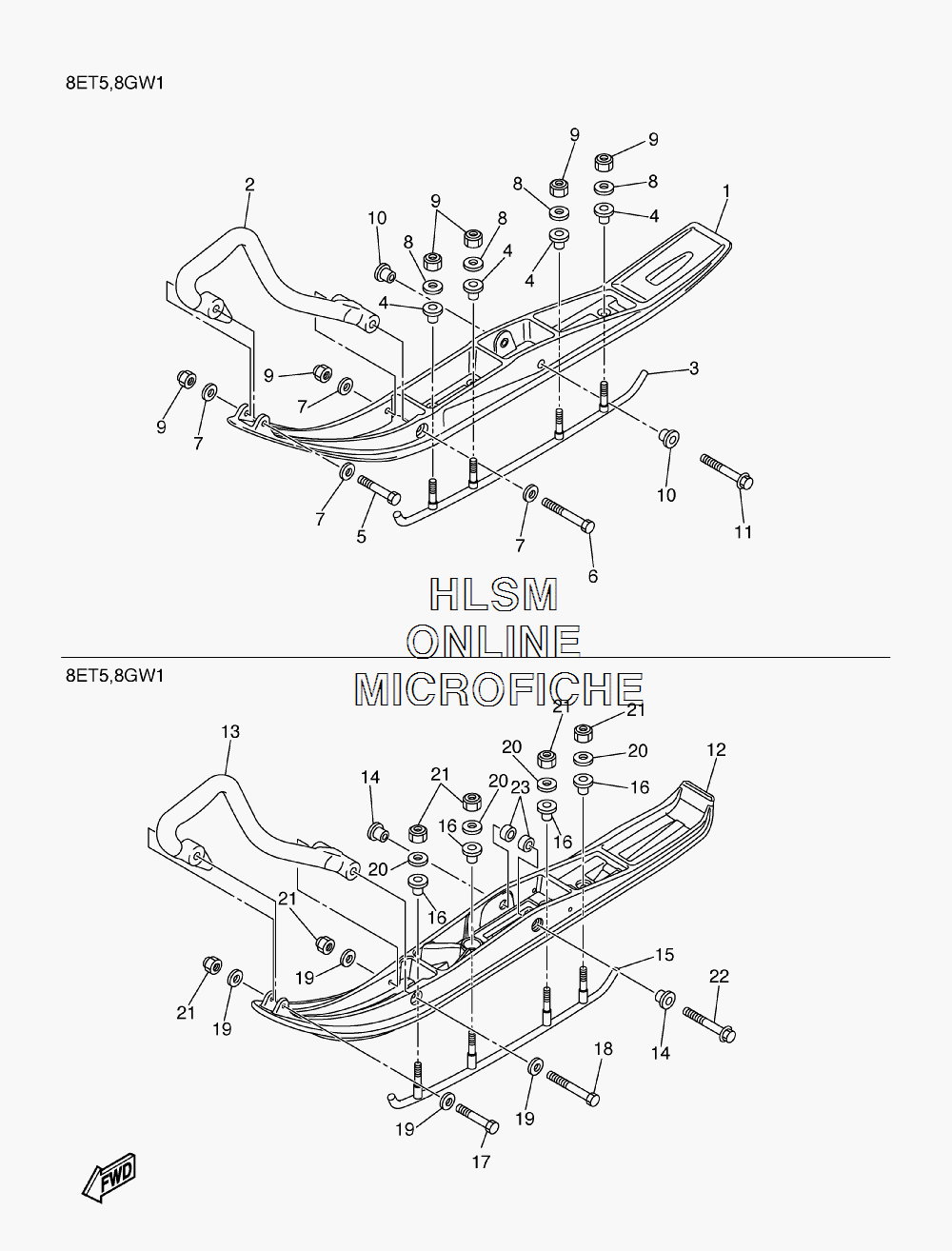

SUSPENSION - ALTERNATE SKI для Yamaha VENTURE GT 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EK-F3731-00-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
128FM-F3711-00-00 SKI 1SKI 1
-
138EK-F3712-00-00 BLUE 8DM HANDLE PLASTICBLUE 8DM HANDLE PLASTIC
-
148EX-23754-00-00 COLLAR, 1COLLAR, 1
-
158EN-F3731-00-00 RUNNER 1RUNNER 1
-
168EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
179702M-08055-00 BOLTBOLT
-
189702M-08100-00 BOLTBOLT
-
1990201-08784-00 WASHER, PLATEWASHER, PLATE
-
2090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
219570M-08300-00 NUT, NYLONNUT, NYLON
-
2290105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-10029-00 COLLARCOLLAR
