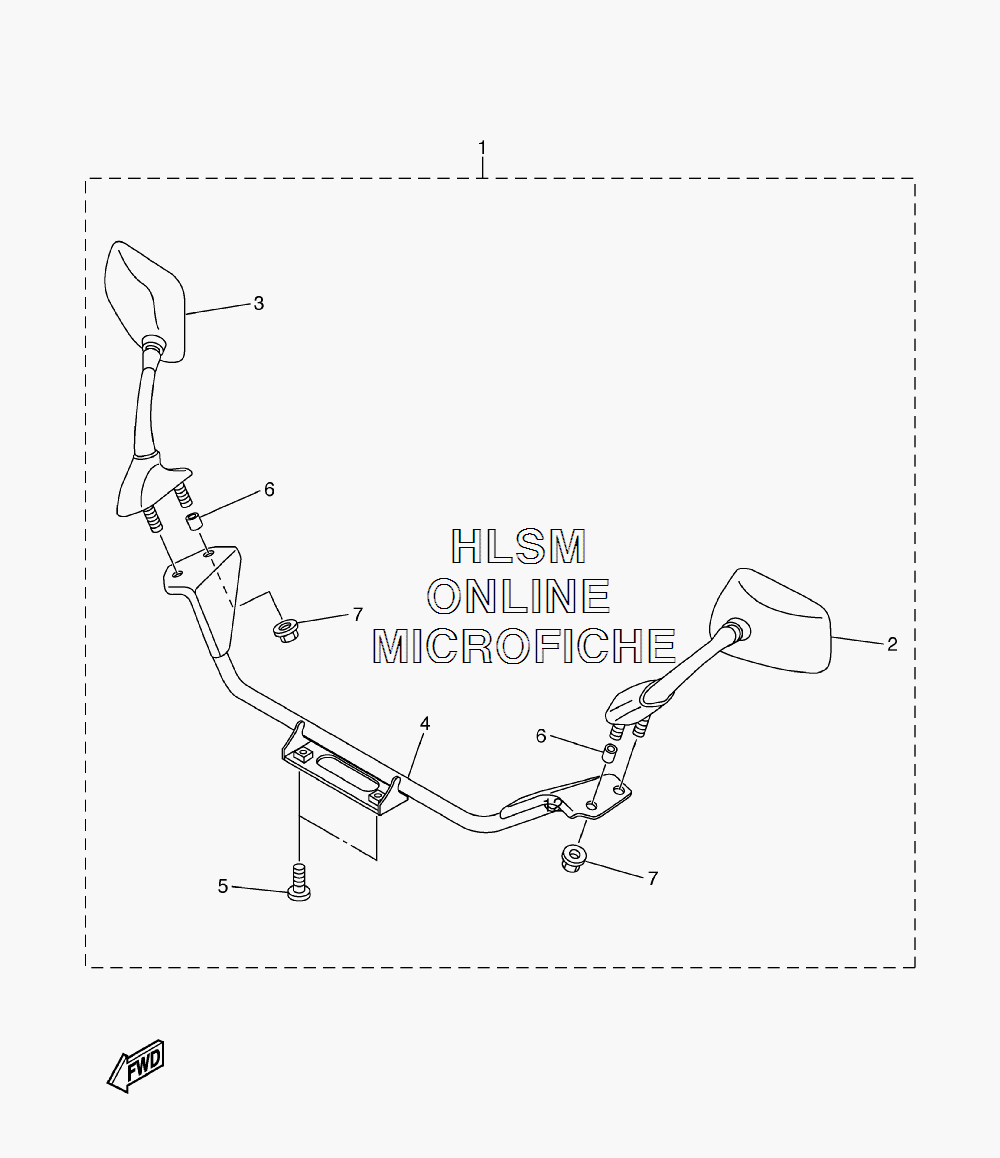

REAR VIEW MIRROR SET для Yamaha VENTURE GT 2-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
18ET-262A0-00-00 MIRROR KIT ASSY.MIRROR KIT ASSY.
-
28ET-26280-00-00 ...MIRROR ASSY (LH)...MIRROR ASSY (LH)
-
38ET-26290-00-00 ...MIRROR ASSY (RH)...MIRROR ASSY (RH)
-
48ET-77241-00-00 ...STAY, FAIRING...STAY, FAIRING
-
590150-06015-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
690387-0610J-00 ...COLLAR...COLLAR
-
795607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
