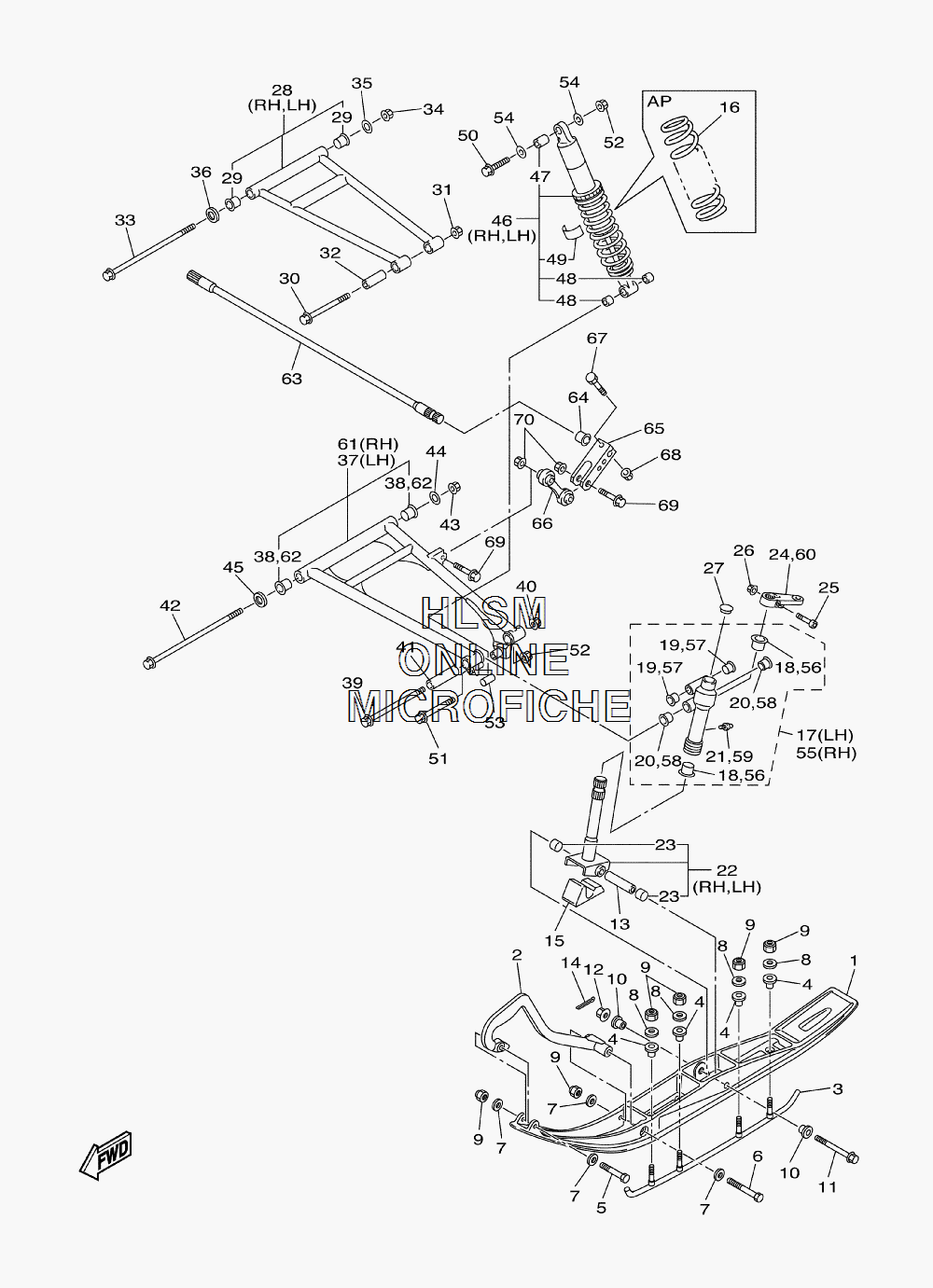

SUSPENSION - FRONT W/ SKI ASSY для Yamaha ATTAK GT - 2007 года выпуска`
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASTICBLUE 8DM HANDLE PLASTIC
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EK-F3731-00-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168FR-23760-00-00 SPRING ASSY 1 (K=2.3) (OPT)SPRING ASSY 1 (K=2.3) (OPT)
-
168FR-23760-10-00 SPRING ASSY 1 (K=3.0) (OPT)SPRING ASSY 1 (K=3.0) (OPT)
-
178ES-23501-00-00 STEERING KNUCKLE ASSY (LEFT) FOR DPBMCSTEERING KNUCKLE ASSY (LEFT) FOR DPBMC
-
178ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT) FOR YBSTEERING KNUCKLE ASSY (LEFT) FOR YB
-
1890381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
228ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2390384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
248FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2590110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
273YK-22472-40-00 CAP, CASECAP, CASE
-
288FR-23540-30-00 FRONT UPPER ARM COMP.FRONT UPPER ARM COMP.
-
288FR-23540-10-00 FRONT UPPER ARM COMP. FOR DRMKFRONT UPPER ARM COMP. FOR DRMK
-
288FR-23540-20-00 FRONT UPPER ARM COMP. FOR YBFRONT UPPER ARM COMP. FOR YB
-
2990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3090105-10N56-00 BOLT, FLANGEBOLT, FLANGE
-
3195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290387-10N58-00 COLLARCOLLAR
-
3390105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3690209-15N50-00 WASHERWASHER
-
378ES-23570-30-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
378ES-23570-10-00 FRONT LOWER ARM COMP. (LEFT) FOR DRMKFRONT LOWER ARM COMP. (LEFT) FOR DRMK
-
378ES-23570-20-00 FRONT LOWER ARM COMP. (LEFT) FOR YBFRONT LOWER ARM COMP. (LEFT) FOR YB
-
3890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3990105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190387-12N54-00 COLLARCOLLAR
-
4290105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4590209-15N50-00 WASHERWASHER
-
468FR-2376A-00-00 ABSORBER ASSY 1 FOR YBABSORBER ASSY 1 FOR YB
-
468FR-2376A-30-00 ABSORBER ASSY 1 FOR DPBMCABSORBER ASSY 1 FOR DPBMC
-
468GV-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
478FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
4890384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
494AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
494AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
5090105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5190105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5390387-10N59-00 COLLARCOLLAR
-
5490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
558ES-23502-00-00 STEERING KNUCKLE ASSY (RIGHT) FOR DPBMCSTEERING KNUCKLE ASSY (RIGHT) FOR DPBMC
-
558ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT) FOR YBSTEERING KNUCKLE ASSY (RIGHT) FOR YB
-
5690381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5790381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
608FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
618ES-23580-30-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
618ES-23580-10-00 FRONT LOWER ARM COMP. (RIGHT) FOR DRMKFRONT LOWER ARM COMP. (RIGHT) FOR DRMK
-
618ES-23580-20-00 FRONT LOWER ARM COMP. (RIGHT) FOR YBFRONT LOWER ARM COMP. (RIGHT) FOR YB
-
6290381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
638FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
648FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
658FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
668ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6790101-06765-00 BOLTBOLT
-
6895604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6995814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7095604-08200-00 NUT, U FLANGENUT, U FLANGE
