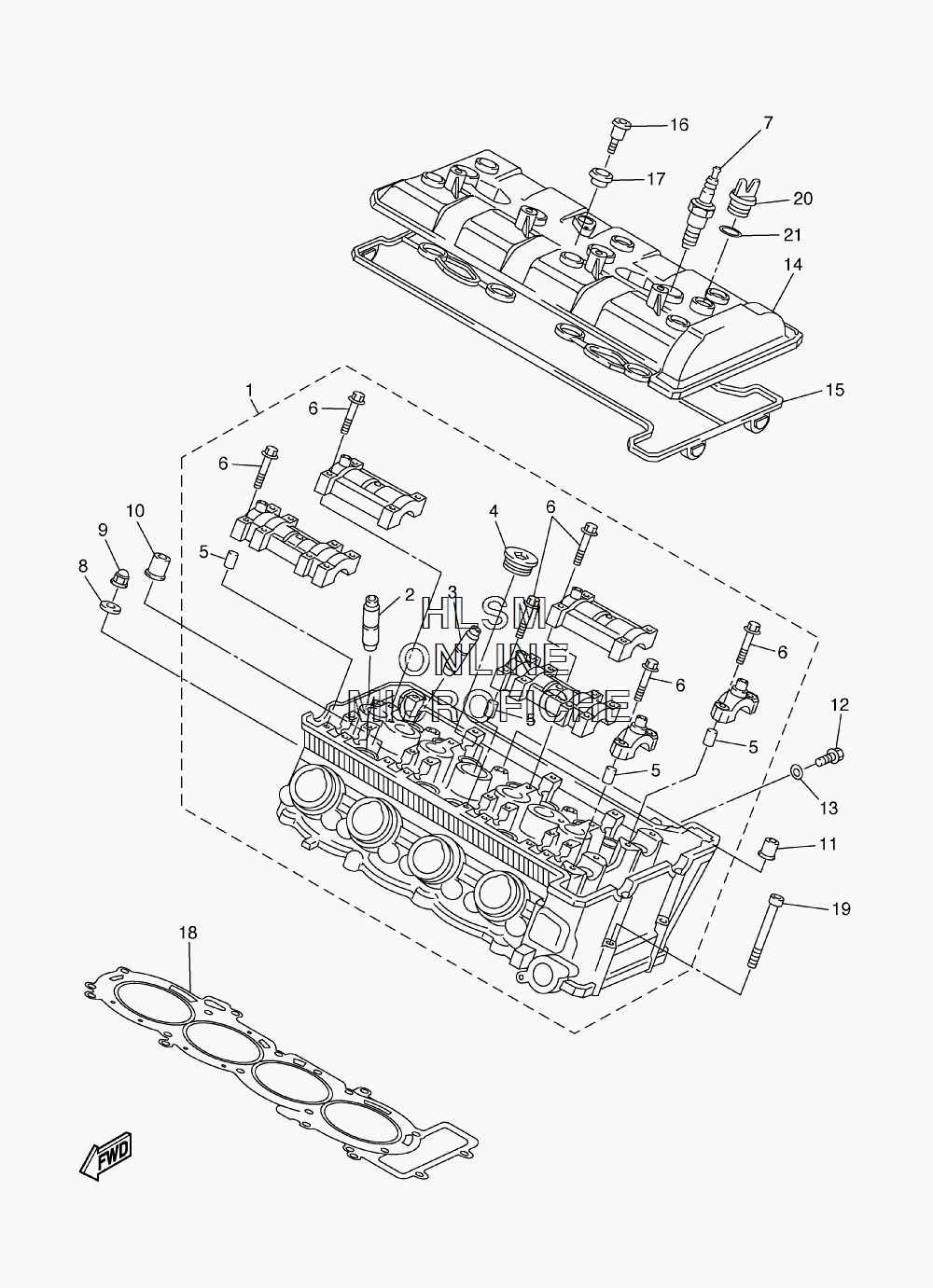

CYLINDER W/ HEAD ASSY для Yamaha ATTAK GT - 2007 года выпуска`
-
№АртикулНазвание
-
18FP-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23TJ-11133-10-00 ...GUIDE, INTAKE VALVE 1 O/S...GUIDE, INTAKE VALVE 1 O/S
-
31WG-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
490340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
7NGK-CR9EB-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
890201-10013-00 WASHER, PLATEWASHER, PLATE
-
990176-10075-00 NUT, CROWNNUT, CROWN
-
1090179-10006-00 NUTNUT
-
1190179-10414-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1295027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-06014-00 GASKETGASKET
-
148FP-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
158FP-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1690109-066F0-00 BOLTBOLT
-
175VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
188FP-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991317-06060-00 BOLTBOLT
-
203Y1-15363-00-00 PLUG, OILPLUG, OIL
-
2193210-19123-00 O-RINGO-RING
