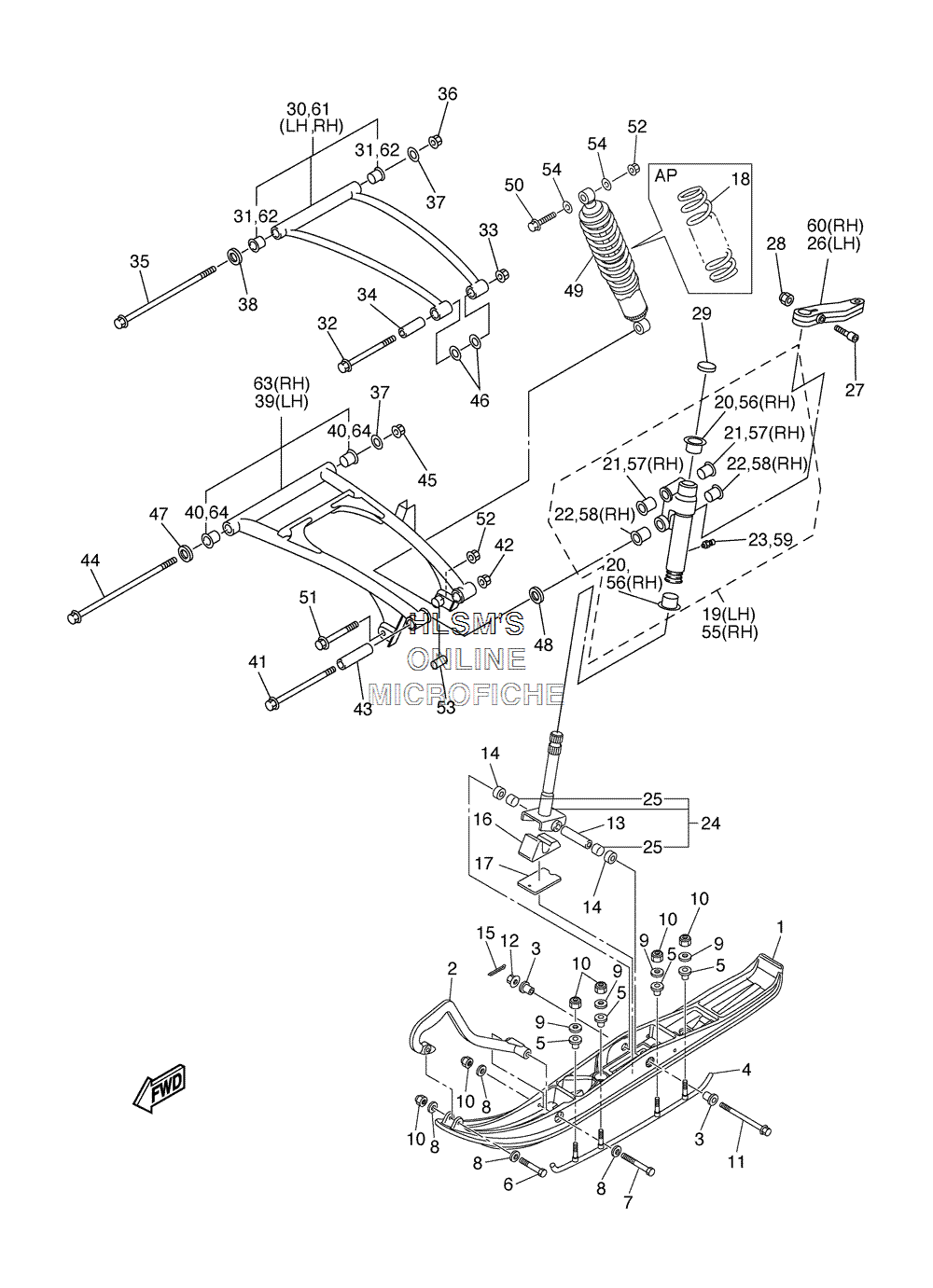

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VK PROFESSIONAL 2-Pass - 2006 года выпуска
-
№АртикулНазвание
-
18FN-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 HANDLE PLASTIC (BLACK)HANDLE PLASTIC (BLACK)
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-10029-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168ES-23743-00-00 STOPPER 1STOPPER 1
-
178FM-23744-00-00 STOPPER 2STOPPER 2
-
188ES-23760-00-00 SPRING ASSY 1 (K=24.5N/MM)SPRING ASSY 1 (K=24.5N/MM)
-
188ES-23760-10-00 SPRING ASSY 1 (K=20.6N/MM)SPRING ASSY 1 (K=20.6N/MM)
-
198ES-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
248ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2590384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
268FN-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2790110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
293YK-22472-40-00 CAP, CASECAP, CASE
-
308FN-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3290105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490387-10N58-00 COLLARCOLLAR
-
3590105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3890209-15N50-00 WASHERWASHER
-
398FN-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4090381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4190105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4295607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390387-12N54-00 COLLARCOLLAR
-
4490105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4690201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4790209-15N50-00 WASHERWASHER
-
4890201-12032-00 WASHER, PLATEWASHER, PLATE
-
498FN-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5090105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5190105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
5295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5390387-10N59-00 COLLARCOLLAR
-
5490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
558ES-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5690381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5790381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
608FN-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
618FN-23550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
6290381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
638FN-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
6490381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
