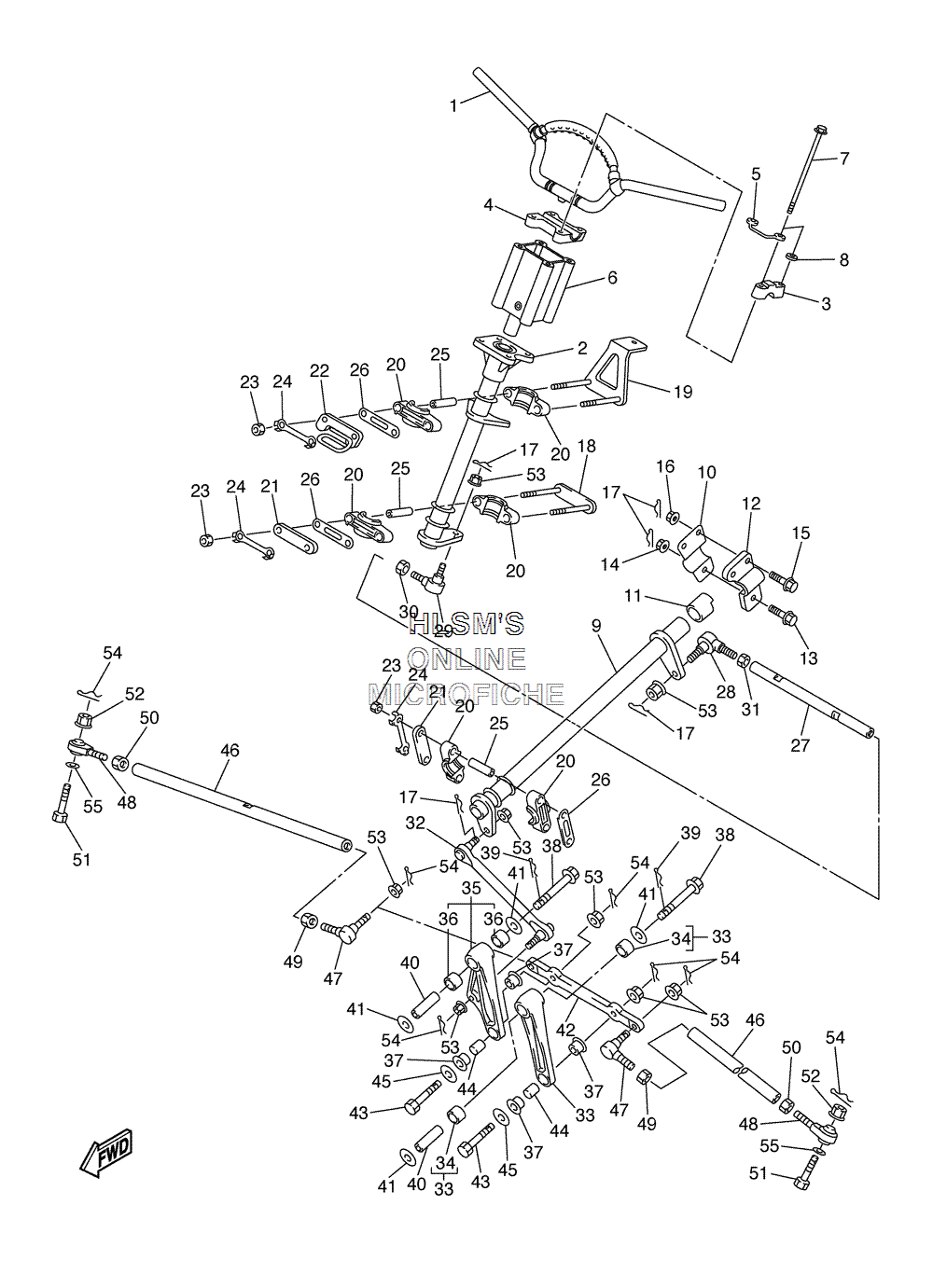

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VK PROFESSIONAL 2-Pass - 2006 года выпуска`
-
№АртикулНазвание
-
18FN-26110-00-00 HANDLE COMP.HANDLE COMP.
-
28FA-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
48ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
58DF-23857-00-00 HOLDERHOLDER
-
68FK-2381B-00-00 JOINTJOINT
-
790105-08072-00 BOLT, FLANGEBOLT, FLANGE
-
890201-08020-00 WASHER, PLATEWASHER, PLATE
-
98FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
108FA-23818-00-00 COVER, STEERINGCOVER, STEERING
-
118FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
128FN-23867-00-00 HOLDER 2HOLDER 2
-
1390105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790468-12006-00 CLIPCLIP
-
188FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
198FN-2376H-00-00 HOLDER, BEARINGHOLDER, BEARING
-
208FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
218FA-23867-00-00 HOLDER 2HOLDER 2
-
228FN-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2395317-08600-00 NUTNUT
-
241UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
2590387-09006-00 COLLARCOLLAR
-
268FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
278FN-23828-00-00 ROD, STEERINGROD, STEERING
-
288CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
298CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3095307-10700-00 NUTNUT
-
3190170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
328FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
338FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3490383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
358FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
3693317-41785-00 ...BEARING...BEARING
-
3790381-14001-00 BUSH, SOLIDBUSH, SOLID
-
3890105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
398FA-2384N-00-00 CLIP, RINGCLIP, RING
-
408FA-2412G-00-00 COLLARCOLLAR
-
4190201-121U3-00 WASHER, PLATEWASHER, PLATE
-
428FN-23826-00-00 ARM, IDLERARM, IDLER
-
4390102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4490387-10008-00 COLLARCOLLAR
-
4590201-10742-00 WASHER, PLATEWASHER, PLATE
-
468FN-23831-00-00 ROD, TIEROD, TIE
-
478CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
488FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
4995307-10700-00 NUTNUT
-
5090170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
5190102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5295707-10300-00 NUT, FLANGENUT, FLANGE
-
5395707-10500-00 NUT, FLANGENUT, FLANGE
-
5491401-20020-00 PIN, COTTERPIN, COTTER
-
5590201-08759-00 WASHER, PLATEWASHER, PLATE
