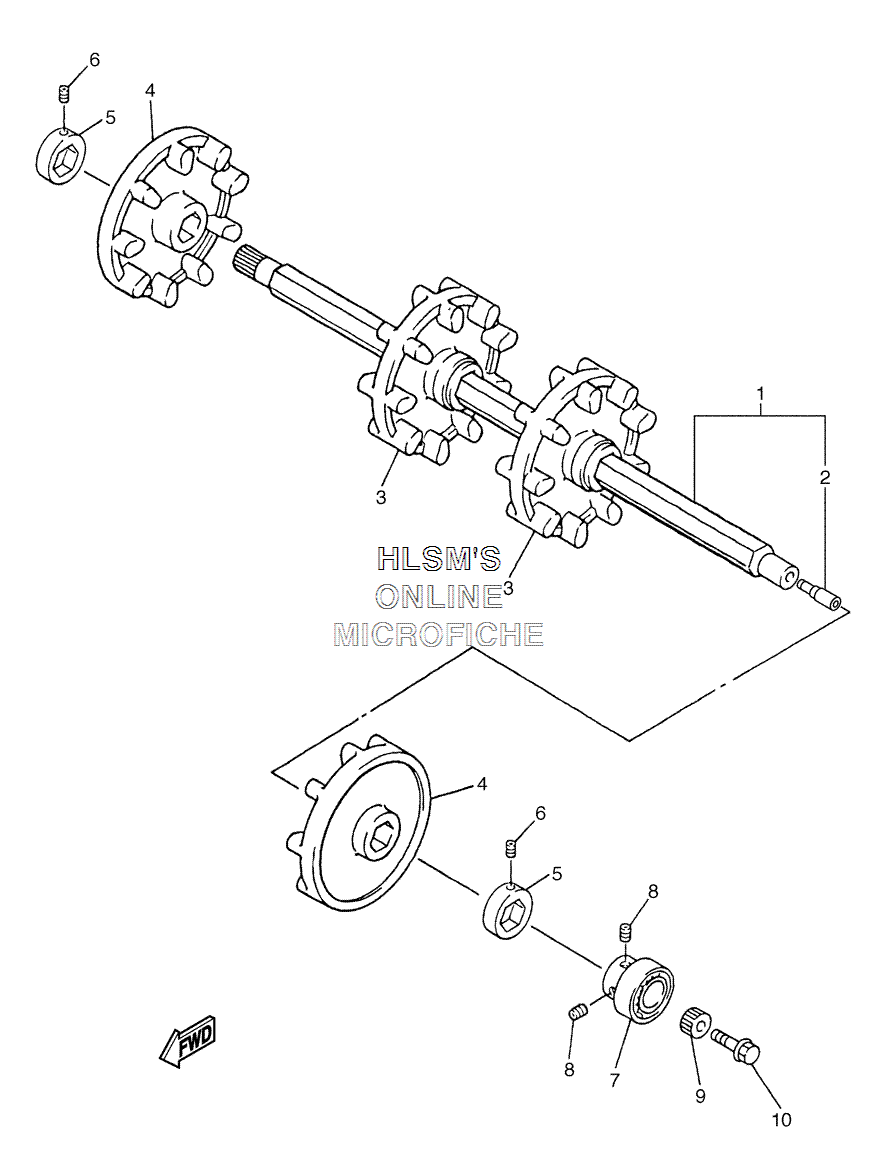

DRIVE TRAIN ASSEMBLY для Yamaha VENTURE 600 - 2006 года выпуска`
-
№АртикулНазвание
-
18EK-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38BW-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
48BW-47532-10-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
58BW-47526-00-00 COLLARCOLLAR
-
690113-06039-00 BOLT, SETBOLT, SET
-
793306-20589-00 BEARINGBEARING
-
890113-06064-00 BOLT, SETBOLT, SET
-
98EK-47715-00-00 JOINTJOINT
-
1090105-105A0-00 BOLT, WASHER BASEDBOLT, WASHER BASED
