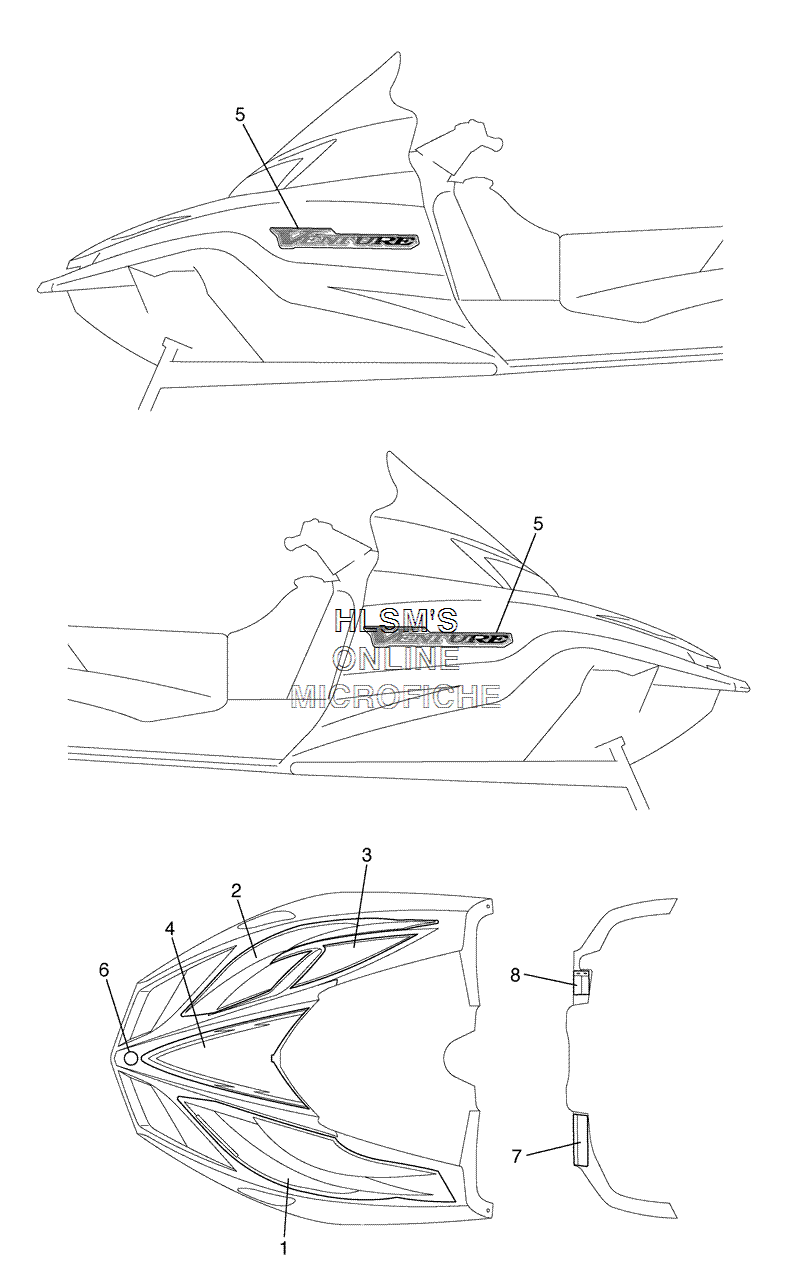

DECALS для Yamaha VENTURE 600 - 2006 года выпуска`
-
№АртикулНазвание
-
18EY-7711L-40-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
28EY-7711M-20-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
38EY-7711N-20-00 GRAPHIC, SHROUD 3GRAPHIC, SHROUD 3
-
48EY-7711R-20-00 GRAPHIC, SHROUD CENTERGRAPHIC, SHROUD CENTER
-
58FD-77141-00-00 EMBLEM 1EMBLEM 1
-
68AC-2414B-01-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
78DM-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
88DM-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DOUBLE SEAT ASSY. W/ HIGH BACKREST
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
