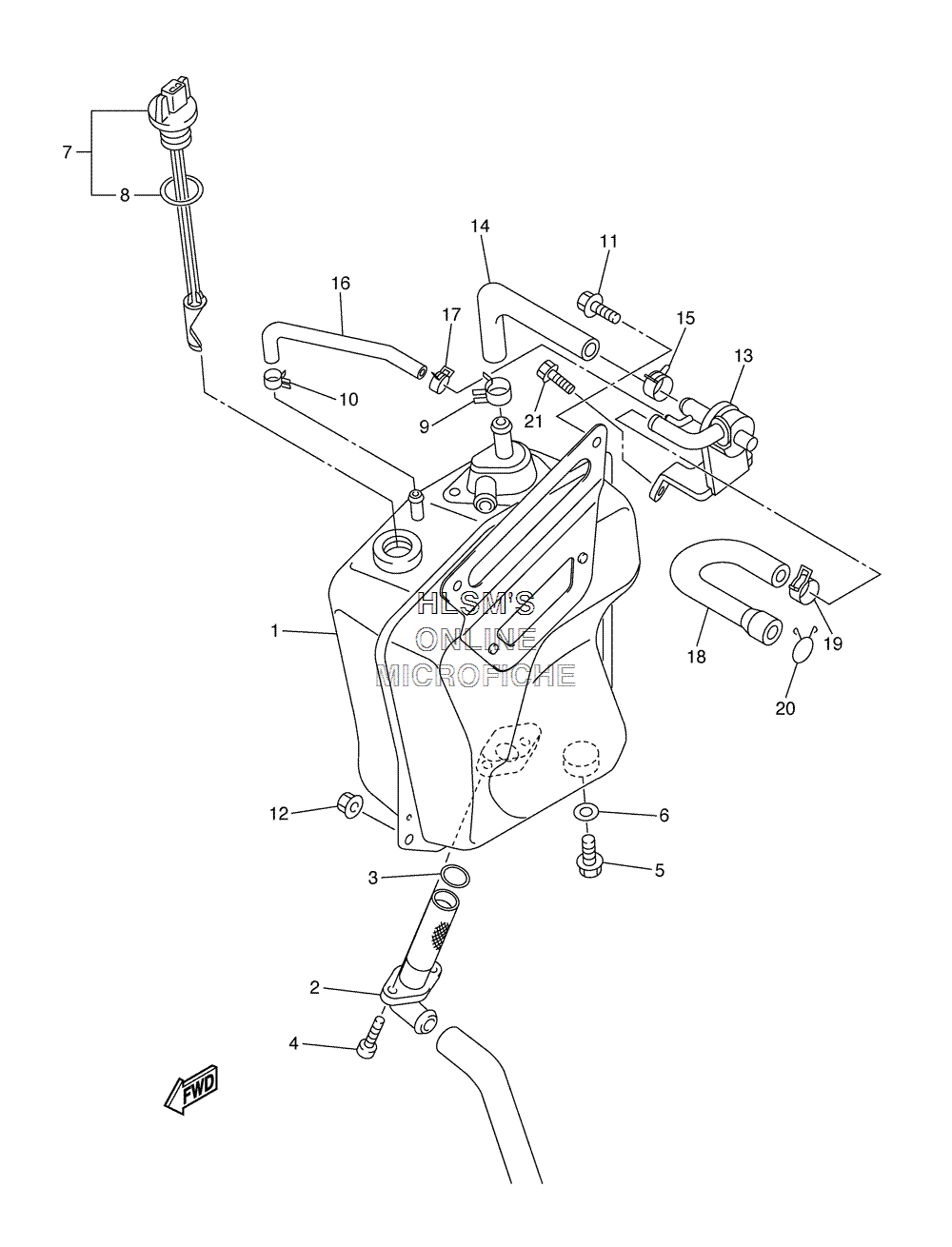

OIL TANK ASSY для Yamaha VECTOR GT - 2006 года выпуска`
-
№АртикулНазвание
-
18FG-21751-02-00 TANK, OILTANK, OIL
-
28FG-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
393210-19026-00 O-RINGO-RING
-
491317-06016-00 BOLTBOLT
-
595807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
690430-08204-00 GASKETGASKET
-
78FA-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
88FP-85075-00-00 ...O-RING...O-RING
-
990468-08104-00 CLIPCLIP
-
1090467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
1195817-06016-00 .BOLT, FLANGE.BOLT, FLANGE
-
1295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138ES-13520-00-00 VALVE ASSY.VALVE ASSY.
-
148ES-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
1590468-08104-00 CLIPCLIP
-
168ES-2174N-00-00 PIPE, OIL TANKPIPE, OIL TANK
-
1790467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
188ES-21816-00-00 PIPE 1PIPE 1
-
1990467-20085-00 CLIP, SCISSORCLIP, SCISSOR
-
2090467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
2195827-06020-00 BOLT, FLANGEBOLT, FLANGE
