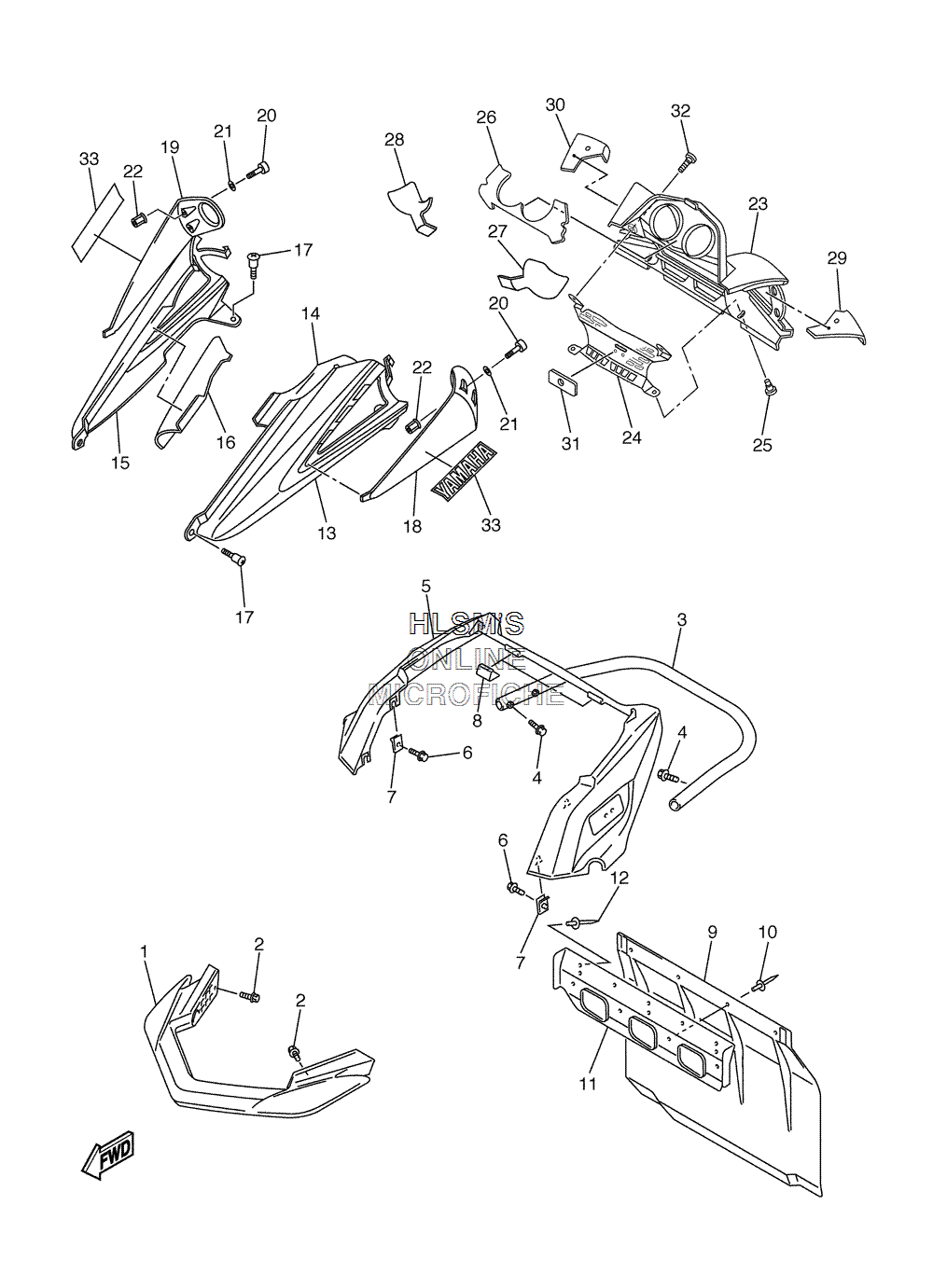

BUMPER - FRONT AND REAR для Yamaha VECTOR GT - 2006 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FA-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
98ED-K7595-01-00 FLAP, BLACKFLAP, BLACK
-
1090267-47200-00 RIVET, BLINDRIVET, BLIND
-
118FU-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
1290267-48095-00 RIVET, BLINDRIVET, BLIND
-
138ES-77551-00-00 PROTECTOR 1PROTECTOR 1
-
148ES-77261-01-00 LINING, SHROUD 1LINING, SHROUD 1
-
158ES-77552-00-00 PROTECTOR 2PROTECTOR 2
-
168ES-77262-01-00 LINING, SHROUD 2LINING, SHROUD 2
-
1790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
188ES-77554-00-P1 PROTECTOR 4 (RED)PROTECTOR 4 (RED)
-
188ES-77554-10-00 PROTECTOR 4 FOR BLACKPROTECTOR 4 FOR BLACK
-
198ES-77555-00-P1 PROTECTOR 5 (RED)PROTECTOR 5 (RED)
-
198ES-77555-10-00 PROTECTOR 5 FOR BLACKPROTECTOR 5 FOR BLACK
-
2091314-06020-00 BOLTBOLT
-
2190201-06M07-00 WASHER, PLATEWASHER, PLATE
-
2290179-06520-00 NUTNUT
-
238ES-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
248ES-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2590267-47187-00 RIVET, BLINDRIVET, BLIND
-
268ES-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
278ES-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
288ES-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
298ES-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
308ES-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
318ES-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
3290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3399244-00120-00 EMBLEM, YAMAHA (BLACK)EMBLEM, YAMAHA (BLACK)
