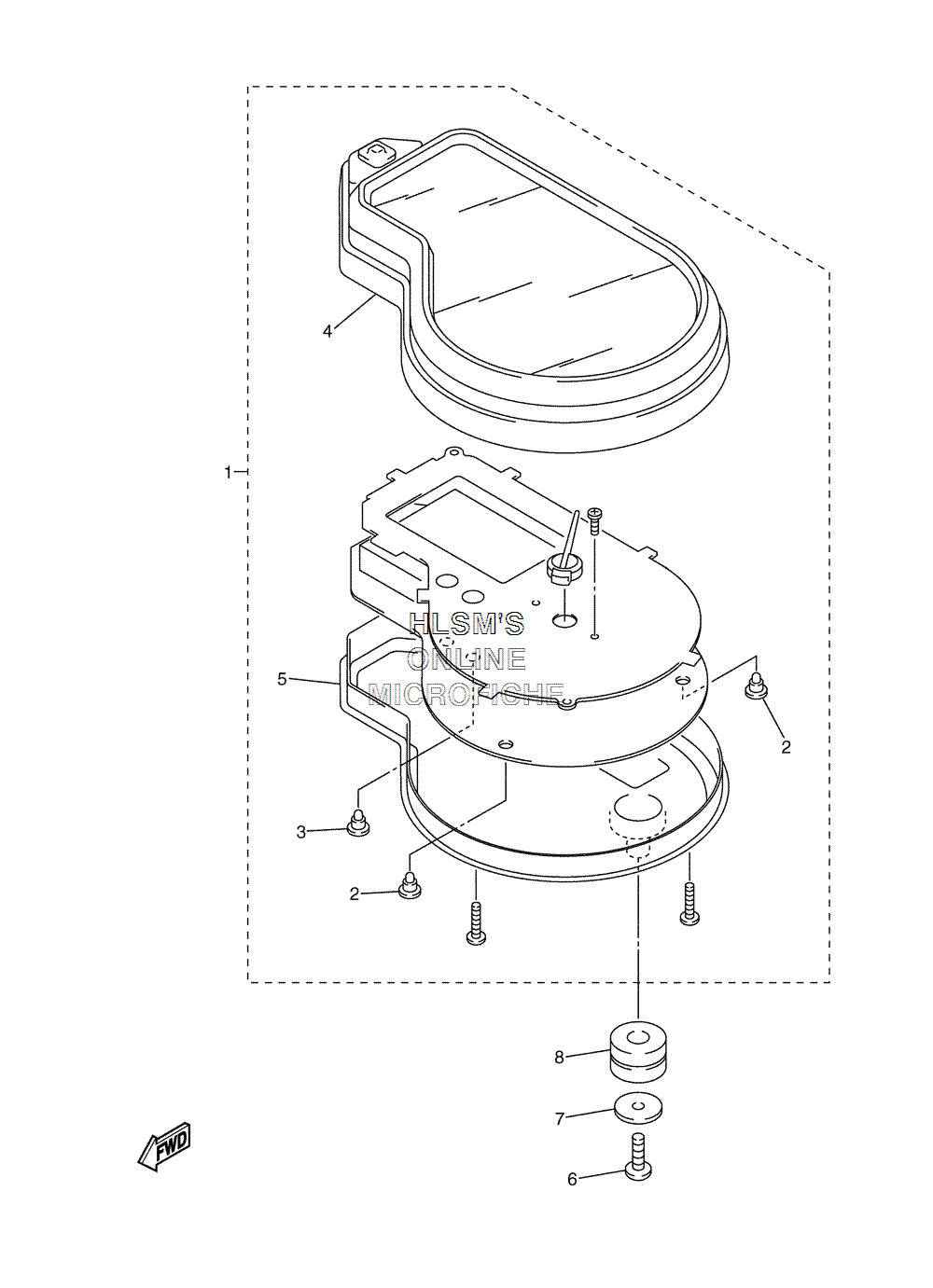

ELECTRICAL - INSTRUMENTS для Yamaha SX VIPER MOUNTAIN - 2006 года выпуска`
-
№АртикулНазвание
-
18EN-83500-20-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
24WM-83517-00-00 ...BULB (T3 14V-50MA)...BULB (T3 14V-50MA)
-
34WM-83517-10-00 ...BULB (T3.4 14V-80MA)...BULB (T3.4 14V-80MA)
-
48EK-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
58EK-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
697707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
790201-05036-00 WASHER, PLATEWASHER, PLATE
-
84XV-83513-00-00 DAMPERDAMPER
