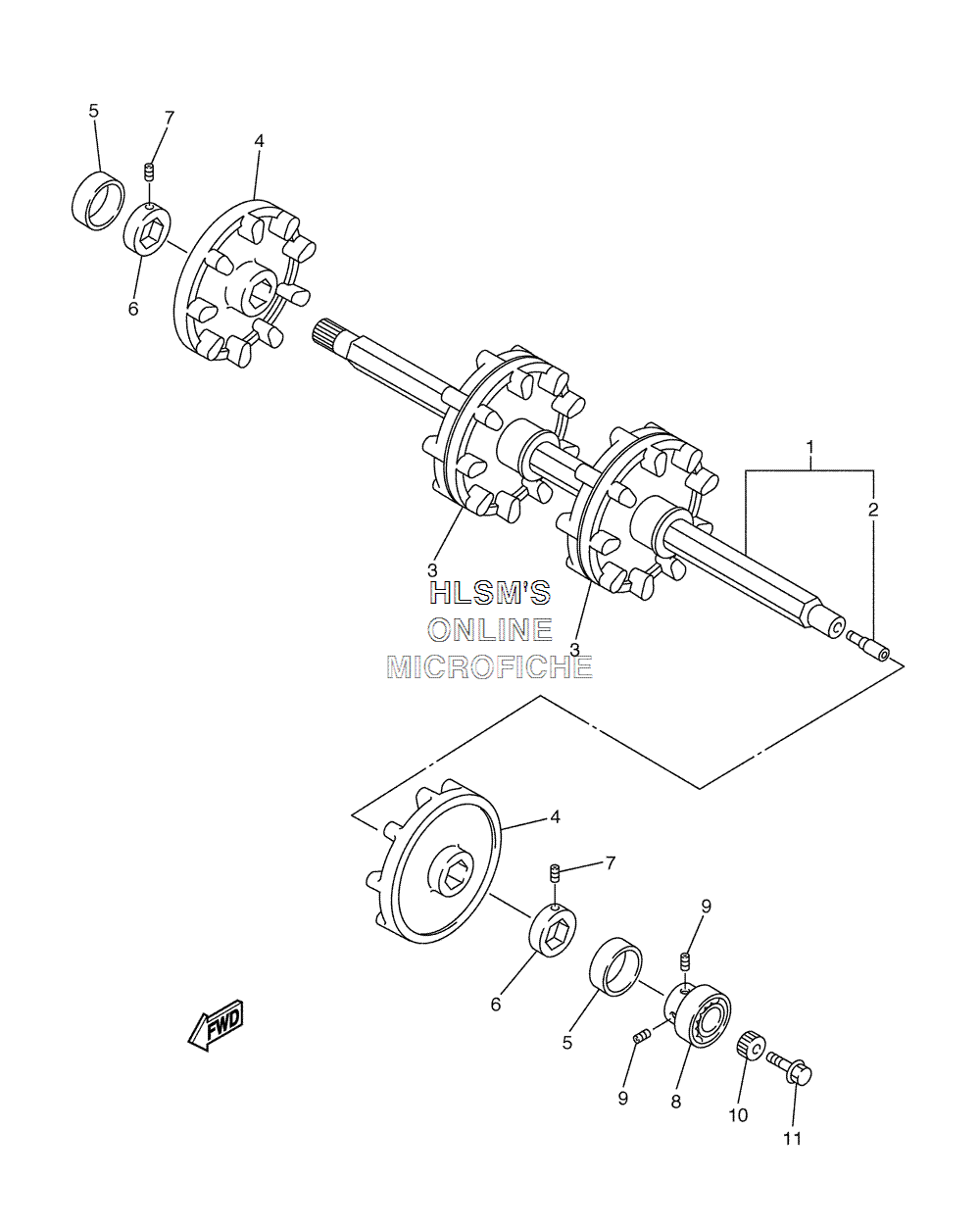

DRIVE TRAIN ASSEMBLY для Yamaha SX VIPER MOUNTAIN - 2006 года выпуска`
-
№АртикулНазвание
-
18EK-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38BF-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
48DP-47532-00-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
590387-514Y2-00 COLLARCOLLAR
-
68BW-47526-00-00 COLLARCOLLAR
-
790113-06039-00 BOLT, SETBOLT, SET
-
893306-20589-00 BEARINGBEARING
-
990113-06064-00 BOLT, SETBOLT, SET
-
108EK-47715-00-00 JOINTJOINT
-
1190105-105A0-00 BOLT, WASHER BASEDBOLT, WASHER BASED
