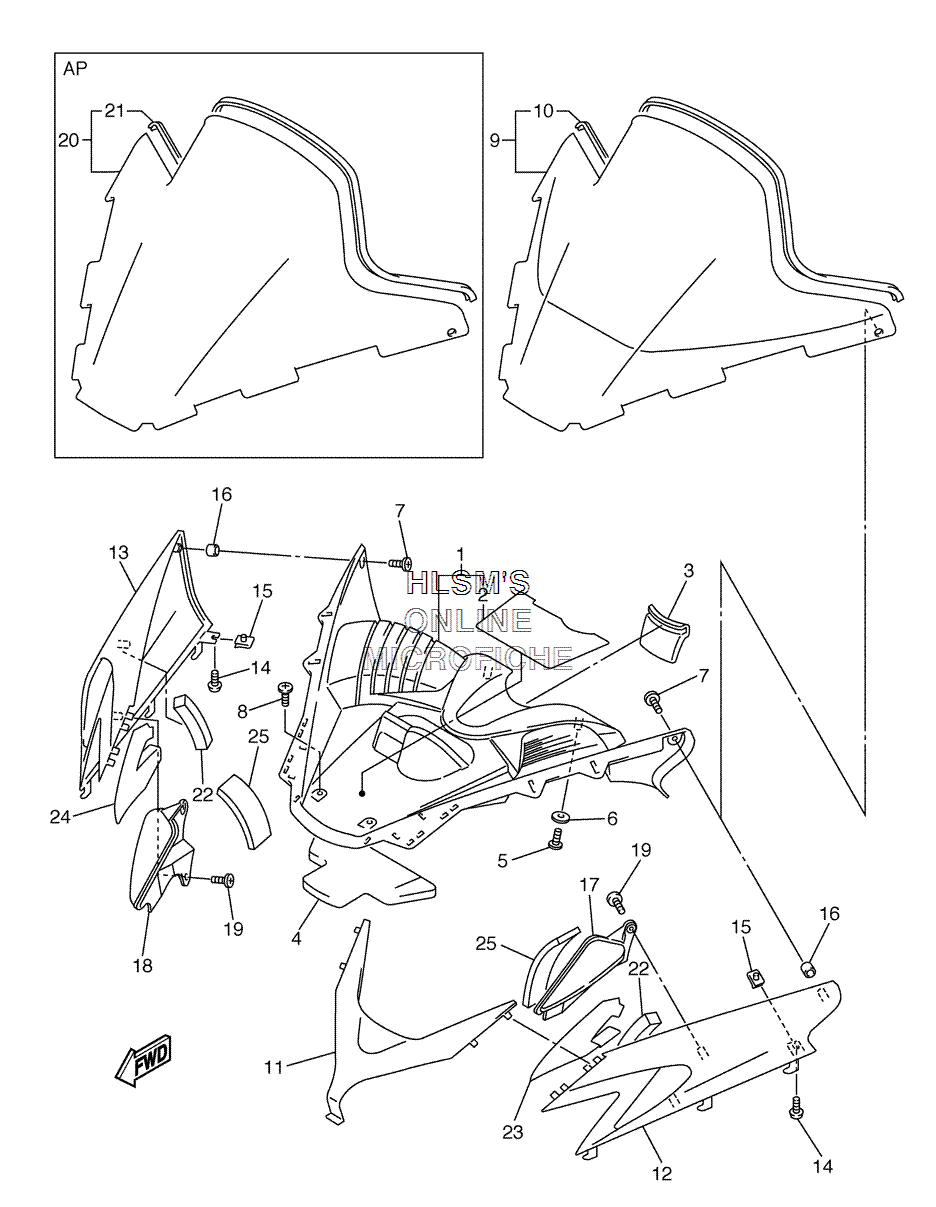

HOOD - WINDSHIELD ASSY для Yamaha SX VENOM - 2006 года выпуска`
-
№АртикулНазвание
-
18EK-W7725-10-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28EK-77198-10-00 ...DAMPER 1...DAMPER 1
-
38FE-78447-00-00 TRIM, SEATTRIM, SEAT
-
48EK-77277-00-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
590167-05078-00 SCREW, TAPPINGSCREW, TAPPING
-
690201-05029-00 WASHER, PLATEWASHER, PLATE
-
790167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
898907-06014-00 SCREW, BINDSCREW, BIND
-
98FB-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
108FB-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
118EK-77231-10-00 FAIRINGFAIRING
-
128EK-7723A-10-00 FAIRING 2FAIRING 2
-
138EK-7723B-10-00 FAIRING 3FAIRING 3
-
1498907-06020-00 SCREW, BINDSCREW, BIND
-
1590183-06053-00 NUT, SPRINGNUT, SPRING
-
168EK-77238-00-00 DAMPERDAMPER
-
178EN-77185-00-00 PLATE 1PLATE 1
-
188EN-77186-00-00 PLATE 2PLATE 2
-
1997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
208EK-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
218EK-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
228EY-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
238EY-7824H-00-00 TAPE 1TAPE 1
-
248EY-7824G-00-00 TAPE 2TAPE 2
-
258EY-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
