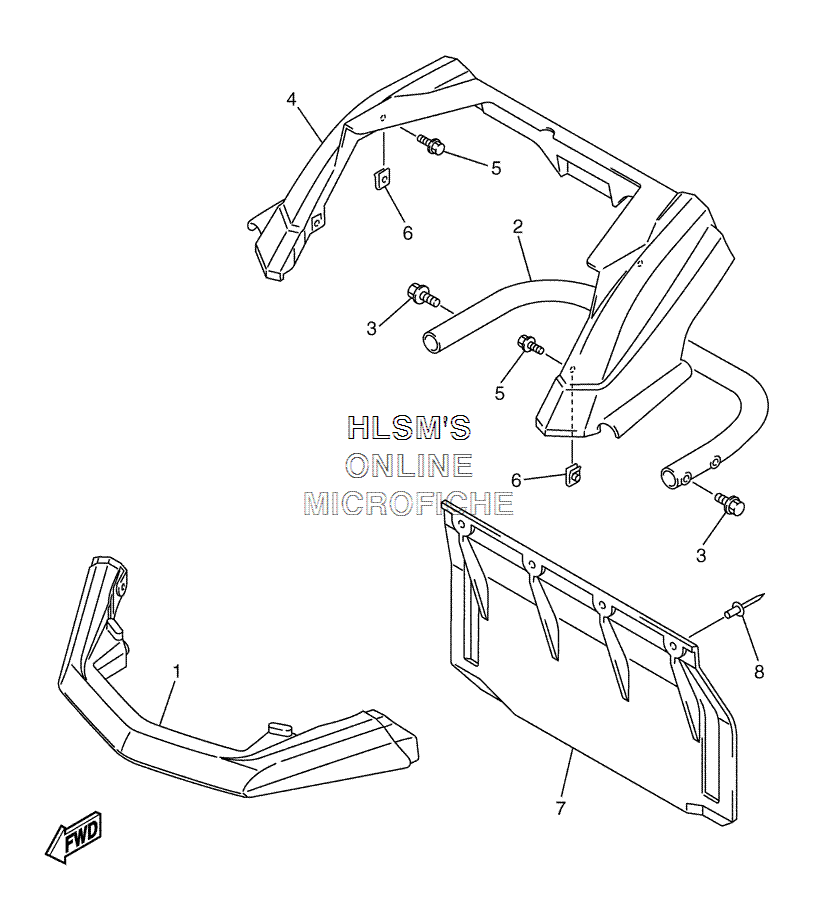

BUMPER - FRONT AND REAR для Yamaha SX VENOM - 2006 года выпуска`
-
№АртикулНазвание
-
18EK-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
28EK-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
395827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
48EK-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
595807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
690183-06053-00 NUT, SPRINGNUT, SPRING
-
78CR-K7595-01-00 FLAP, BLACKFLAP, BLACK
-
890267-47187-00 RIVET, BLINDRIVET, BLIND
