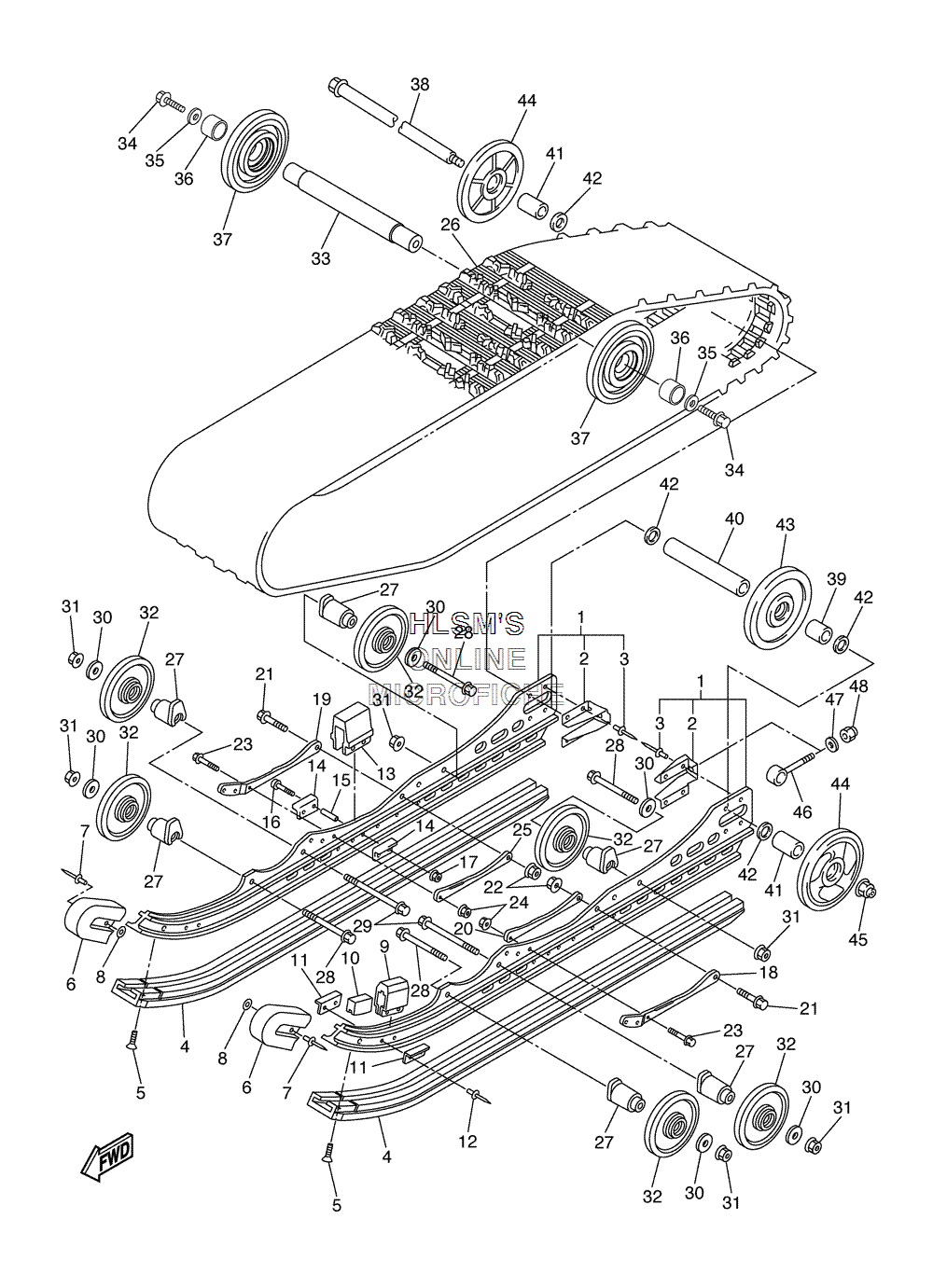

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RAGE - 2006 года выпуска`
-
№АртикулНазвание
-
18FT-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48FT-47421-00-00 SLIDE RUNNER BLK 136SLIDE RUNNER BLK 136
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98AC-47457-00-00 DAMPER 2DAMPER 2
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLINDRIVET, BLIND
-
138FT-47457-00-00 DAMPER 2DAMPER 2
-
148FT-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590387-05027-00 COLLARCOLLAR
-
1690110-05020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1795607-05200-00 NUT, U FLANGENUT, U FLANGE
-
188FT-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
198FT-4741D-00-00 FRAME, SLIDING DFRAME, SLIDING D
-
208FT-4741E-00-00 FRAME, SLIDING EFRAME, SLIDING E
-
2195827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
2295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390105-06059-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
258FT-4741F-00-00 FRAME, SLIDING FFRAME, SLIDING F
-
268FG-47110-00-00 TRACK ASSY 15X136X1.TRACK ASSY 15X136X1.
-
278ES-47419-20-00 BRACKET 7BRACKET 7
-
2890105-10711-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2990105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3090201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
328ES-47310-40-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
338FT-47488-00-00 SHAFT 6SHAFT 6
-
3490105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3590201-103U4-00 WASHER, PLATEWASHER, PLATE
-
3690387-25005-00 COLLARCOLLAR
-
378CR-47310-10-00 BOGEY WHEEL W/ SPACERBOGEY WHEEL W/ SPACER
-
388L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3990387-20015-00 COLLARCOLLAR
-
4090387-20016-00 COLLARCOLLAR
-
4190387-20019-00 COLLARCOLLAR
-
4290201-205R6-00 WASHER, PLATEWASHER, PLATE
-
438CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
448EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4595607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
468DM-47479-00-00 COLLAR 3COLLAR 3
-
4792907-10600-00 WASHER, PLATEWASHER, PLATE
-
4895707-10300-00 NUT, NYLONNUT, NYLON
