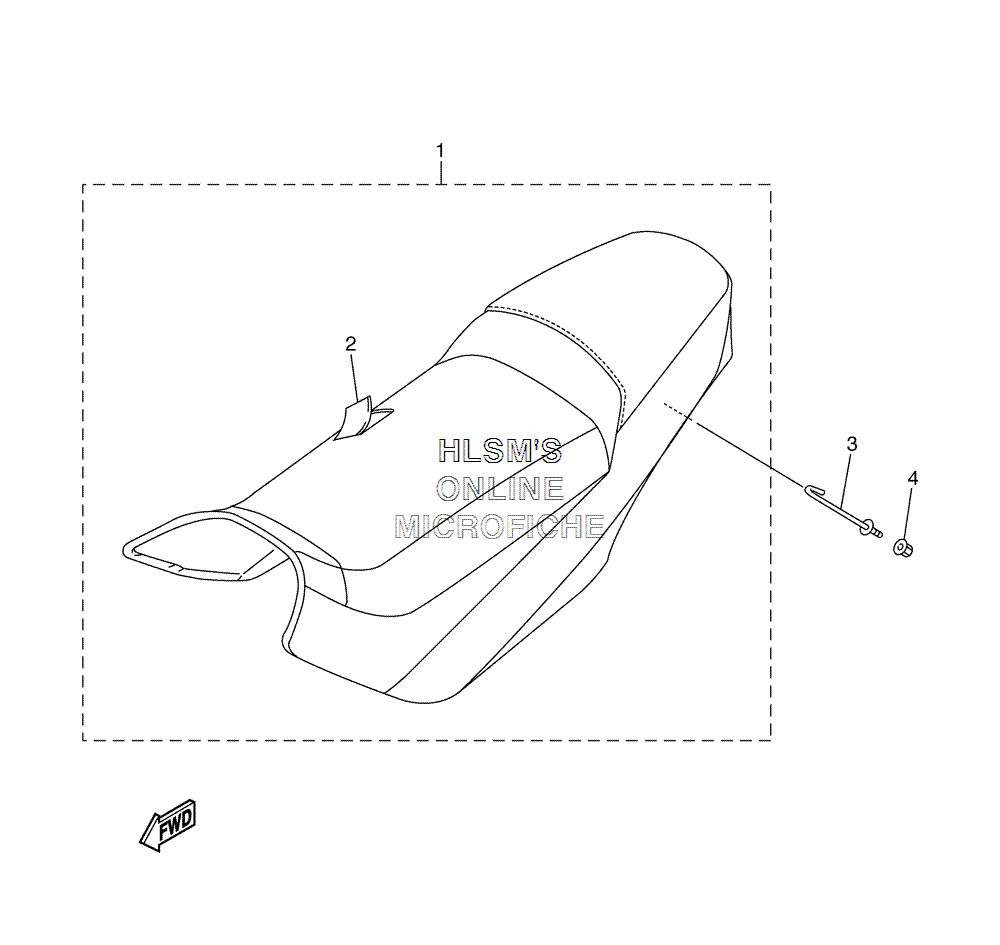

SEAT ASSY для Yamaha RAGE - 2006 года выпуска`
-
№АртикулНазвание
-
18ES-24710-30-00 SINGLE SEAT ASSY (RED)SINGLE SEAT ASSY (RED)
-
18ES-24710-40-00 SINGLE SEAT ASSY (BLUE)SINGLE SEAT ASSY (BLUE)
-
28ES-2470F-30-00 ...SEAT COVER COMP. (RED)...SEAT COVER COMP. (RED)
-
28ES-2470F-40-00 ...SEAT COVER COMP. (BLUE)...SEAT COVER COMP. (BLUE)
-
38FA-24755-00-00 HOOK, SEATHOOK, SEAT
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
