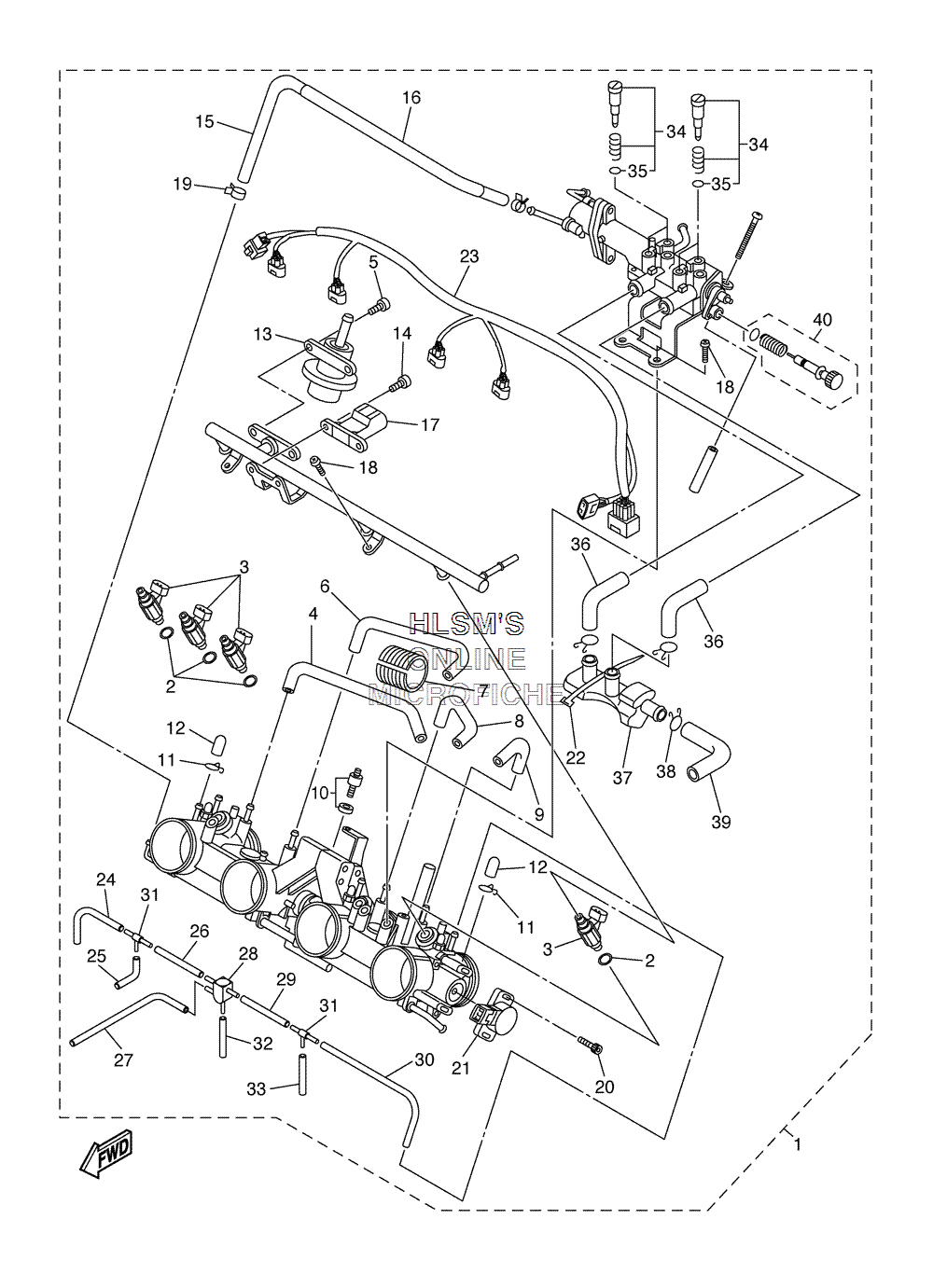

THROTTLE BODY ASSY для Yamaha ATTAK - 2006 года выпуска`
-
№АртикулНазвание
-
18FP-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
38FP-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
48FP-14987-00-00 ...HOSE...HOSE
-
598507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
68FP-14987-10-00 ...HOSE...HOSE
-
78FP-14396-00-00 ...PIPE...PIPE
-
88FP-14987-20-00 ...HOSE...HOSE
-
98FP-14987-30-00 ...HOSE...HOSE
-
105JW-14103-10-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
118A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
12895-14169-00-00 ...CAP...CAP
-
138FP-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
1492507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
158FP-14348-00-00 ...PIPE 1...PIPE 1
-
168FP-14348-10-00 ...PIPE 1...PIPE 1
-
175PS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1898507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1990467-11028-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
208CC-14216-10-00 ...SCREW...SCREW
-
215PS-85885-01-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
224KM-14137-00-00 ...CLIP...CLIP
-
238FP-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
245JW-14348-00-00 ...PIPE 1...PIPE 1
-
258FP-14349-00-00 ...PIPE...PIPE
-
265PS-14987-00-00 ...HOSE...HOSE
-
278FP-14349-10-00 ...PIPE...PIPE
-
285PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
298FP-14349-20-00 ...PIPE...PIPE
-
305JW-14987-00-00 ...HOSE...HOSE
-
3168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
325FL-14348-10-00 ...PIPE 1...PIPE 1
-
338FP-14349-30-00 ...PIPE...PIPE
-
345JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
353H1-14147-00-00 ...O-RING...O-RING
-
368FP-14148-00-00 ...PIPE...PIPE
-
378FP-14454-00-00 ...JOINT...JOINT
-
3890467-22080-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
398FP-14149-00-00 ...PIPE...PIPE
-
408FP-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
