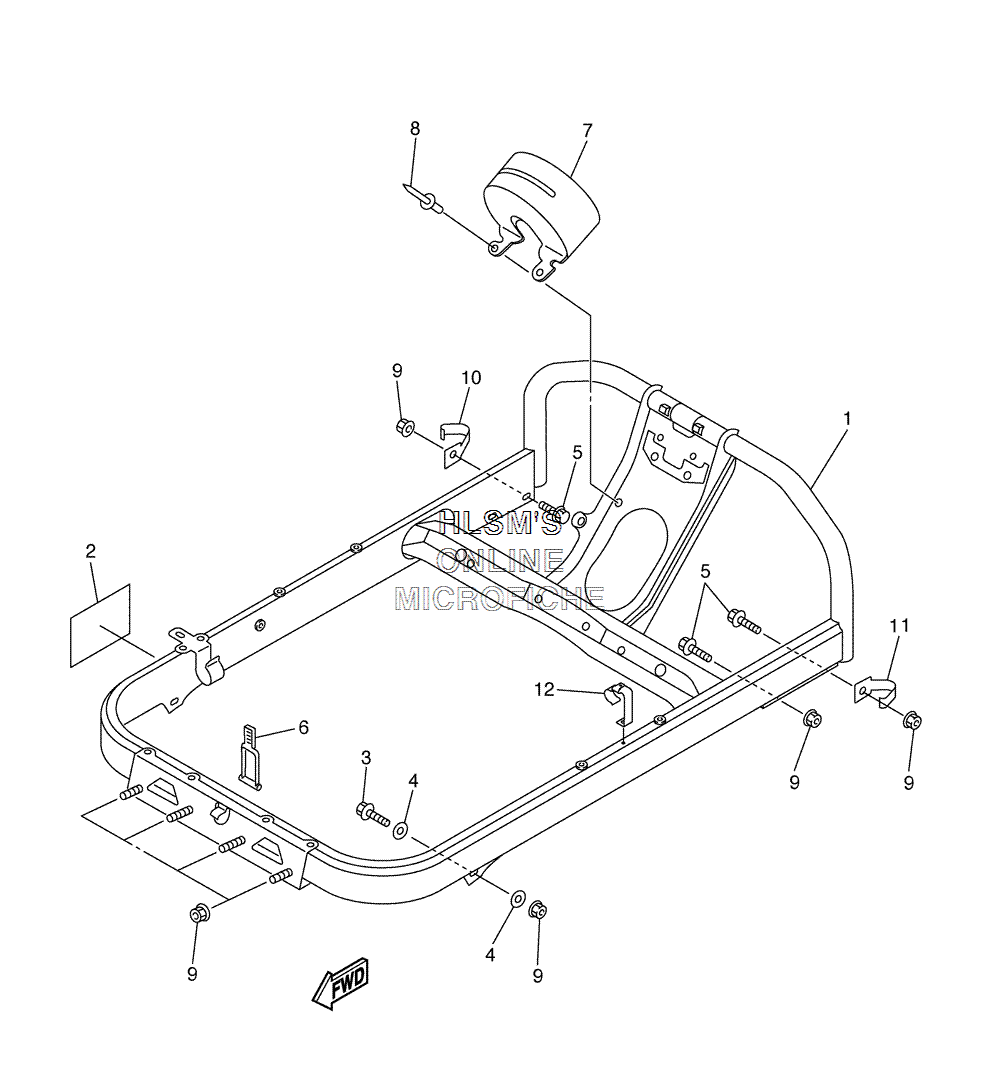

HANDLEBAR PAD W/ STEERING GATE для Yamaha ATTAK - 2006 года выпуска`
-
№АртикулНазвание
-
18FP-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
28FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
390105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490201-08326-00 WASHER, PLATEWASHER, PLATE
-
595827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-2389E-00-00 LATCHLATCH
-
78FP-2384G-00-00 CASE 1CASE 1
-
890269-06083-00 RIVETRIVET
-
995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090462-10022-00 CLAMPCLAMP
-
1190462-10035-00 CLAMPCLAMP
-
128FP-23466-00-00 CLAMPCLAMP
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- • HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- SUSPENSION - TORQUE ARM ASSY
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
