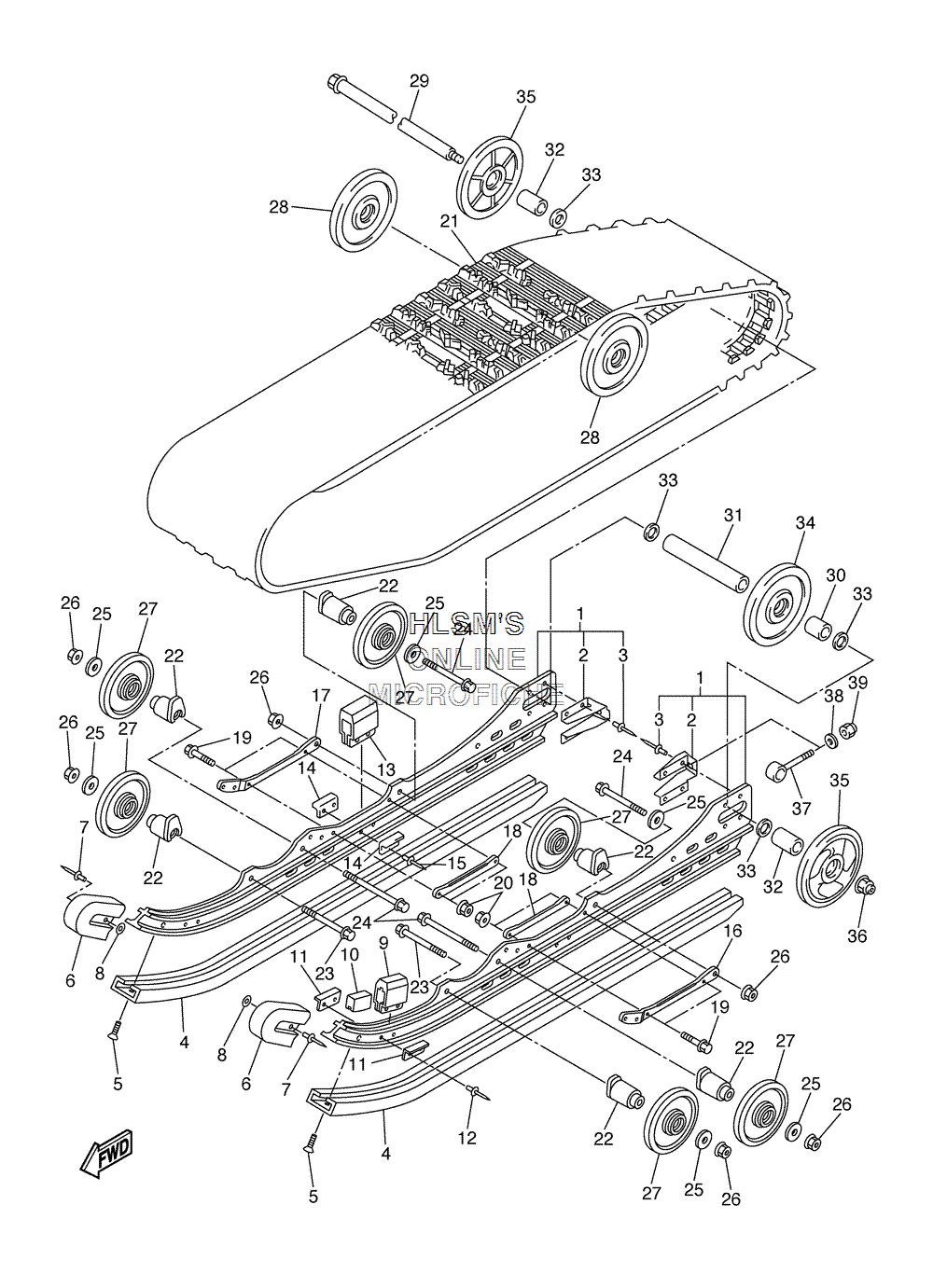

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX RTX - 2006 года выпуска`
-
№АртикулНазвание
-
18FU-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48FU-47421-00-00 RUNNER, SLIDING 121 (BLACK)RUNNER, SLIDING 121 (BLACK)
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98AC-47457-00-00 DAMPER 2DAMPER 2
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLINDRIVET, BLIND
-
138FP-47457-00-00 DAMPER 2DAMPER 2
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168FP-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
178FP-4741D-00-00 FRAME, SLIDING DFRAME, SLIDING D
-
188FP-4741E-00-00 FRAME, SLIDING EFRAME, SLIDING E
-
1995817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
218FA-47110-00-00 TRACK ASSY 15X121X1.TRACK ASSY 15X121X1.
-
228ES-47419-20-00 BRACKET 7BRACKET 7
-
2390105-10711-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2490105-10727-00 BOLT, FLANGEBOLT, FLANGE
-
2590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
2695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
278ES-47310-40-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
288CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
298L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3090387-20015-00 COLLARCOLLAR
-
3190387-20016-00 COLLARCOLLAR
-
3290387-20019-00 COLLARCOLLAR
-
3390201-205R6-00 WASHER, PLATEWASHER, PLATE
-
348CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
358EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3695607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
378DM-47479-00-00 COLLAR 3COLLAR 3
-
3892907-10600-00 WASHER, PLATEWASHER, PLATE
-
3995707-10300-00 NUT, NYLONNUT, NYLON
