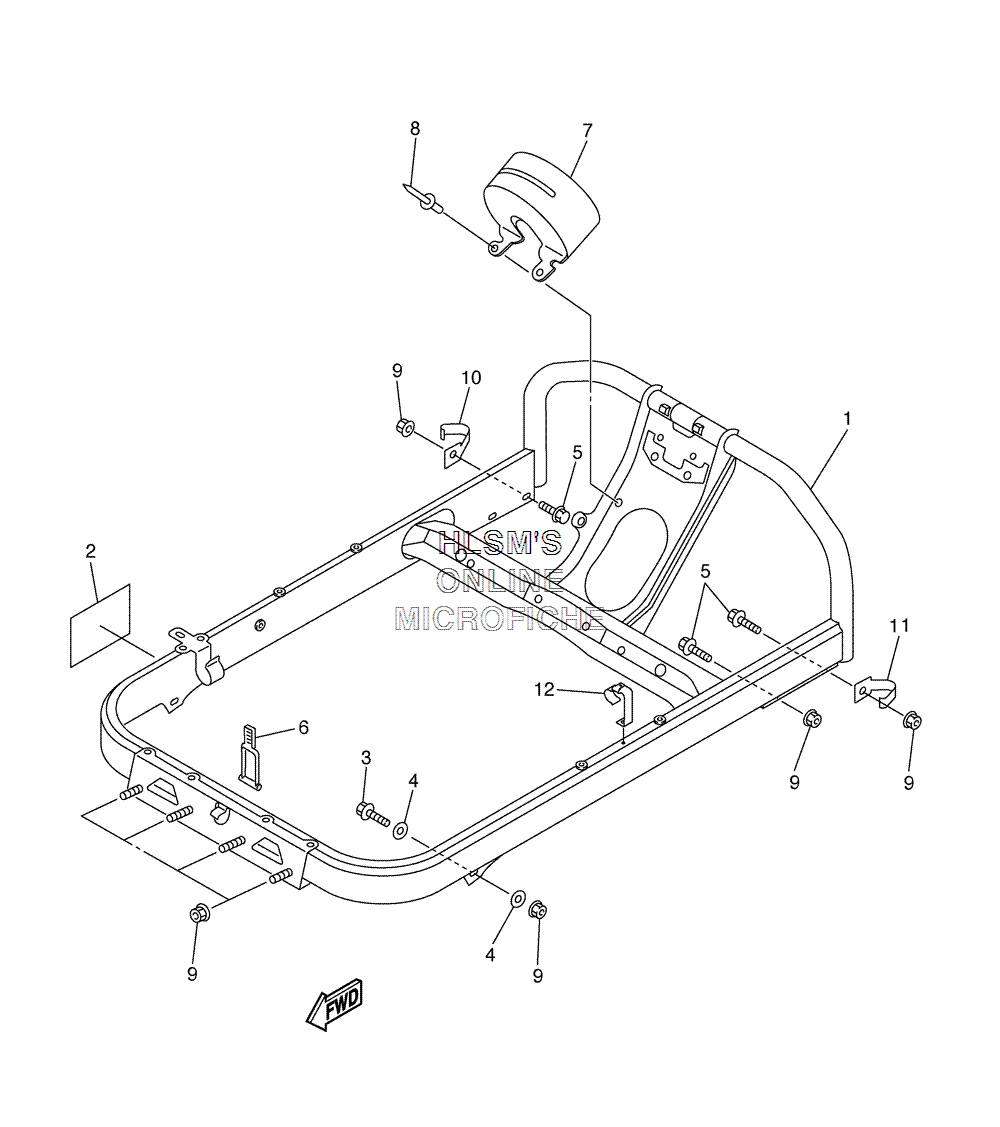

HANDLEBAR PAD W/ STEERING GATE для Yamaha APEX RTX - 2006 года выпуска`
-
№АртикулНазвание
-
18FP-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
28FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
390105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490201-08326-00 WASHER, PLATEWASHER, PLATE
-
595827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-2389E-00-00 LATCHLATCH
-
78FP-2384G-00-00 CASE 1CASE 1
-
890269-06083-00 RIVETRIVET
-
995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090462-10022-00 CLAMPCLAMP
-
1190462-10035-00 CLAMPCLAMP
-
128FP-23466-00-00 CLAMPCLAMP
