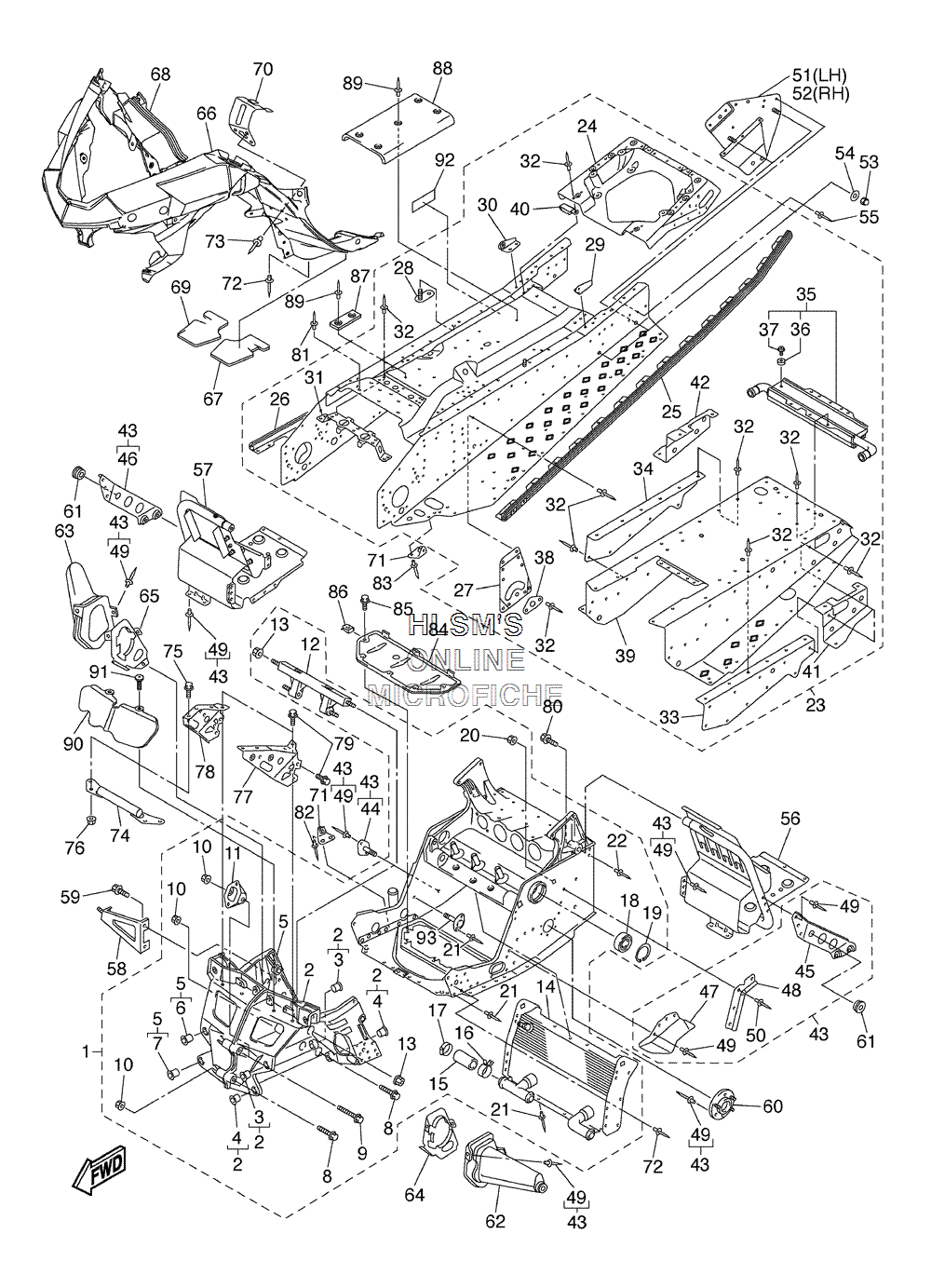

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha APEX MOUNTAIN - 2006 года выпуска
-
№АртикулНазвание
-
18FS-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148EP-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
2290267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
238FS-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
248FS-W2199-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
258FS-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268FS-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278FS-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
288CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
298FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
308FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
318FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3290267-47195-00 ...RIVET, BLIND (REQ. QTY:139)...RIVET, BLIND (REQ. QTY:139)
-
338FS-21963-00-00 ...PATCH 3...PATCH 3
-
348FS-21964-00-00 ...PATCH 4...PATCH 4
-
358FS-1241A-10-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3690210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
3798507-06008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
388FK-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
398FS-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
4090465-08125-00 ...CLAMP...CLAMP
-
418FS-21961-00-00 ...PATCH 1...PATCH 1
-
428FS-21962-00-00 ...PATCH 2...PATCH 2
-
438FS-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
448FN-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
458FP-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
468FP-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
478FP-2198G-00-00 ...COVER 2...COVER 2
-
488FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
4990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5090267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
518FS-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
528FS-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
5395304-10800-00 NUT, CROWNNUT, CROWN
-
5490201-104A7-00 WASHER, PLATEWASHER, PLATE
-
5590267-47197-00 RIVET, BLINDRIVET, BLIND
-
568FP-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
578FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
588ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
5995827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
608EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6190480-13567-00 GROMMETGROMMET
-
628FU-2198F-00-00 COVER 1COVER 1
-
638FU-2198J-00-00 COVER 3COVER 3
-
648FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
658FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
668FP-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
678FP-77374-00-00 DAMPER 2DAMPER 2
-
688FP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
698FP-77375-00-00 DAMPER 3DAMPER 3
-
708FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
718FA-2196F-00-00 BRACKET 3BRACKET 3
-
7290267-48018-00 RIVET, BLINDRIVET, BLIND
-
7390267-47200-00 RIVET, BLINDRIVET, BLIND
-
748FP-21979-00-00 BRACKET ,FR. FOODBRACKET ,FR. FOOD
-
7595827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
7695707-06500-00 NUT, FLANGENUT, FLANGE
-
778FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
788FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
7995827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
8095827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8190267-48169-00 RIVET, BLINDRIVET, BLIND
-
8290267-48083-00 RIVET, BLINDRIVET, BLIND
-
8390267-48095-00 RIVET, BLINDRIVET, BLIND
-
848FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8590109-065F3-00 BOLTBOLT
-
8690183-06053-00 NUT, SPRINGNUT, SPRING
-
878FA-21998-00-00 SPACERSPACER
-
888FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-48059-00 RIVET, BLINDRIVET, BLIND
-
908FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
9190150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
928FP-2179D-00-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
938FS-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
