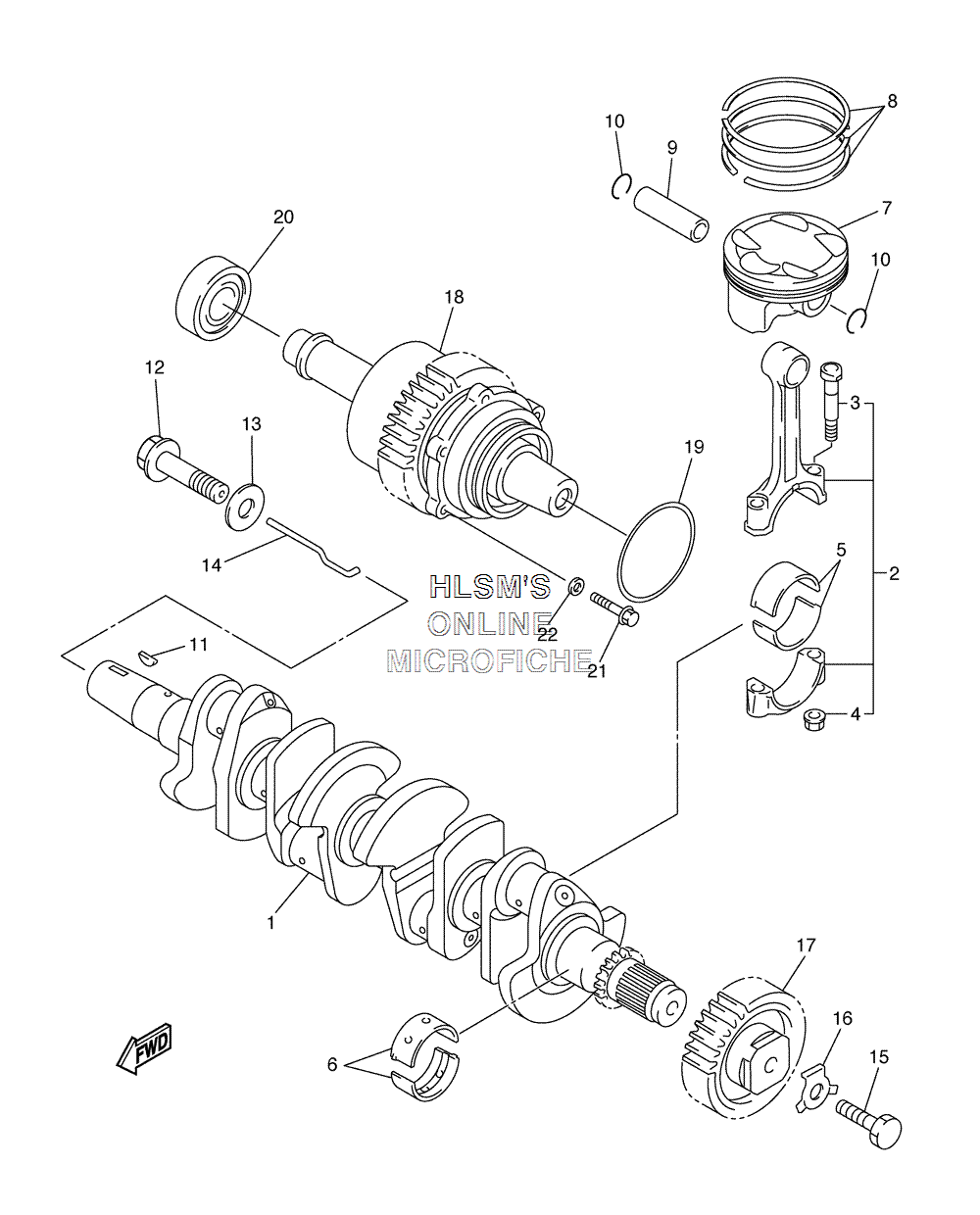

CRANKSHAFT W/ PISTON ASSY для Yamaha APEX MOUNTAIN - 2006 года выпуска`
-
№АртикулНазвание
-
18FP-11411-00-00 CRANKSHAFTCRANKSHAFT
-
25PW-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-08327-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
53GM-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
53GM-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
53GM-11656-A0-00 PLANE BEARING, CONNECTING ROD (WHITE)PLANE BEARING, CONNECTING ROD (WHITE)
-
53GM-11656-B0-00 PLANE BEARING, CONNECTING ROD (PURPLE)PLANE BEARING, CONNECTING ROD (PURPLE)
-
68FA-11416-B0-00 PLANE BEARING, CRANKSHAFT 1 (PURPLE)PLANE BEARING, CRANKSHAFT 1 (PURPLE)
-
68FA-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
68FA-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
68FA-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
68FA-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
74XV-11631-00-00 PISTON (STD)PISTON (STD)
-
88FU-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
94XV-11633-00-00 PIN, PISTONPIN, PISTON
-
1090468-12069-00 CLIPCLIP
-
1190280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
145JW-11455-00-00 SHAFT 1SHAFT 1
-
1590101-10009-00 BOLTBOLT
-
1690215-10001-00 WASHER, LOCKWASHER, LOCK
-
178FP-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
188FP-11406-00-00 SHAFT ASSYSHAFT ASSY
-
1993210-56459-00 O-RINGO-RING
-
2093306-27209-00 BEARINGBEARING
-
2195817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06166-00 GASKETGASKET
