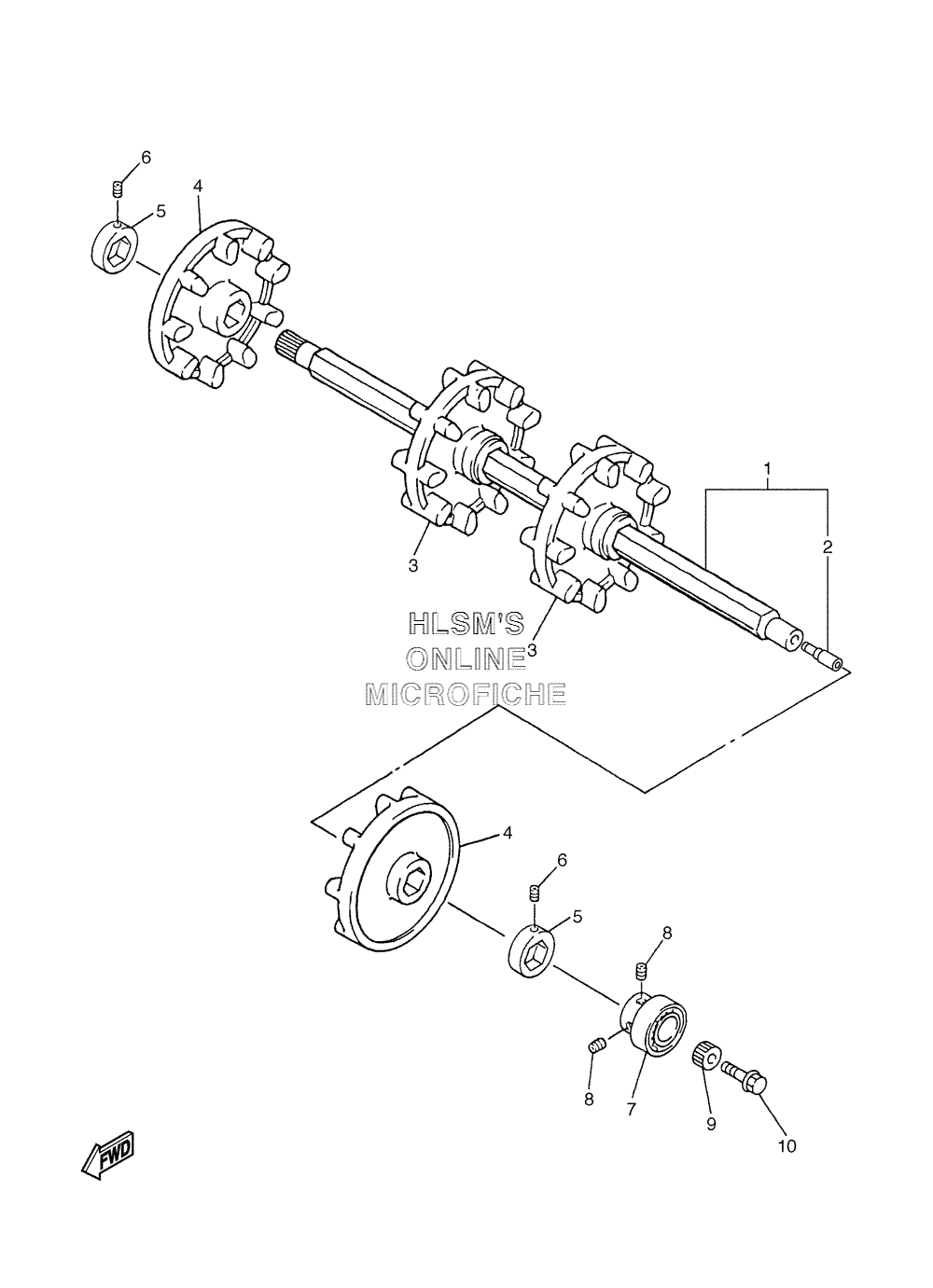

DRIVE TRAIN ASSEMBLY для Yamaha SX VENOM - 2005 года выпуска`
-
№АртикулНазвание
-
18EK-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38BW-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
48BW-47532-10-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
58BW-47526-00-00 COLLARCOLLAR
-
690113-06039-00 BOLT, SETBOLT, SET
-
793306-20589-00 BEARINGBEARING
-
890113-06064-00 BOLT, SETBOLT, SET
-
98EK-47715-00-00 JOINTJOINT
-
1090105-105A0-00 BOLT WASHER BASEDBOLT WASHER BASED
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- • DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE ASSY
- REVERSE KIT (OPTION)
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - ELECTRICAL STARTER ASSY (OPTION)
- STARTER - ELECTRICAL STARTER KIT W/ BATTERY AND STARTER (OPTION)
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
