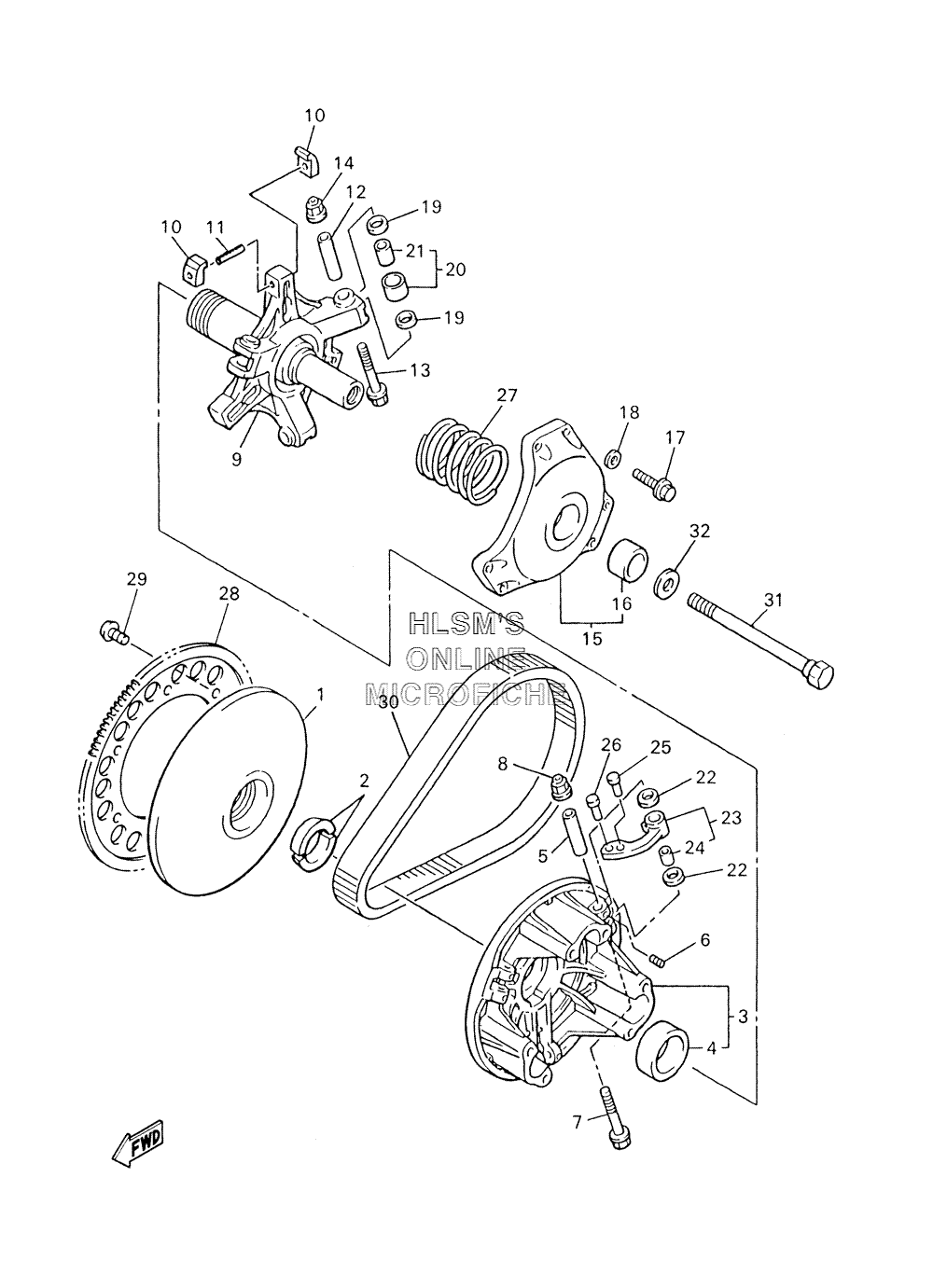

CLUTCH - DRIVE для Yamaha SX VENOM - 2005 года выпуска`
-
№АртикулНазвание
-
18CR-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
38BV-17620-11-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 COLLARCOLLAR
-
690113-05053-00 BOLT, SETBOLT, SET
-
790105-05644-00 BOLT WASHER BASEDBOLT WASHER BASED
-
895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
98CA-17640-12-00 SPIDER COMPLETESPIDER COMPLETE
-
108BW-17653-00-00 SLIDERSLIDER
-
1191609-50032-00 PIN, SPRINGPIN, SPRING
-
1290387-0514U-00 COLLARCOLLAR
-
1390105-05644-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1495607-05200-00 NUT, U FLANGENUT, U FLANGE
-
158DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1797017-06030-00 BOLTBOLT
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
-
1990202-09227-00 WASHER, PLATEWASHER, PLATE
-
208CR-17624-20-00 ROLLER, COMPROLLER, COMP
-
2190380-09245-00 ...BUSH, DURALON...BUSH, DURALON
-
2290202-08204-00 WASHER, PLATEWASHER, PLATE
-
238DG-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2490380-08244-00 ...BUSH, DURALON...BUSH, DURALON
-
2590261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (IN)RIVET, COUNTERSUNK (ST13.9MM) (IN)
-
2690261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OUT)RIVET, COUNTERSUNK (ST13.3MM) (OUT)
-
2790501-602L8-00 SPRING, COMPRESSION (GR-GR-GR)SPRING, COMPRESSION (GR-GR-GR)
-
288DM-1760A-18-00 GEAR 1GEAR 1
-
2990150-08008-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
308DN-17641-00-00 V-BELTV-BELT
-
318V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
3292907-16100-00 WASHERWASHER
