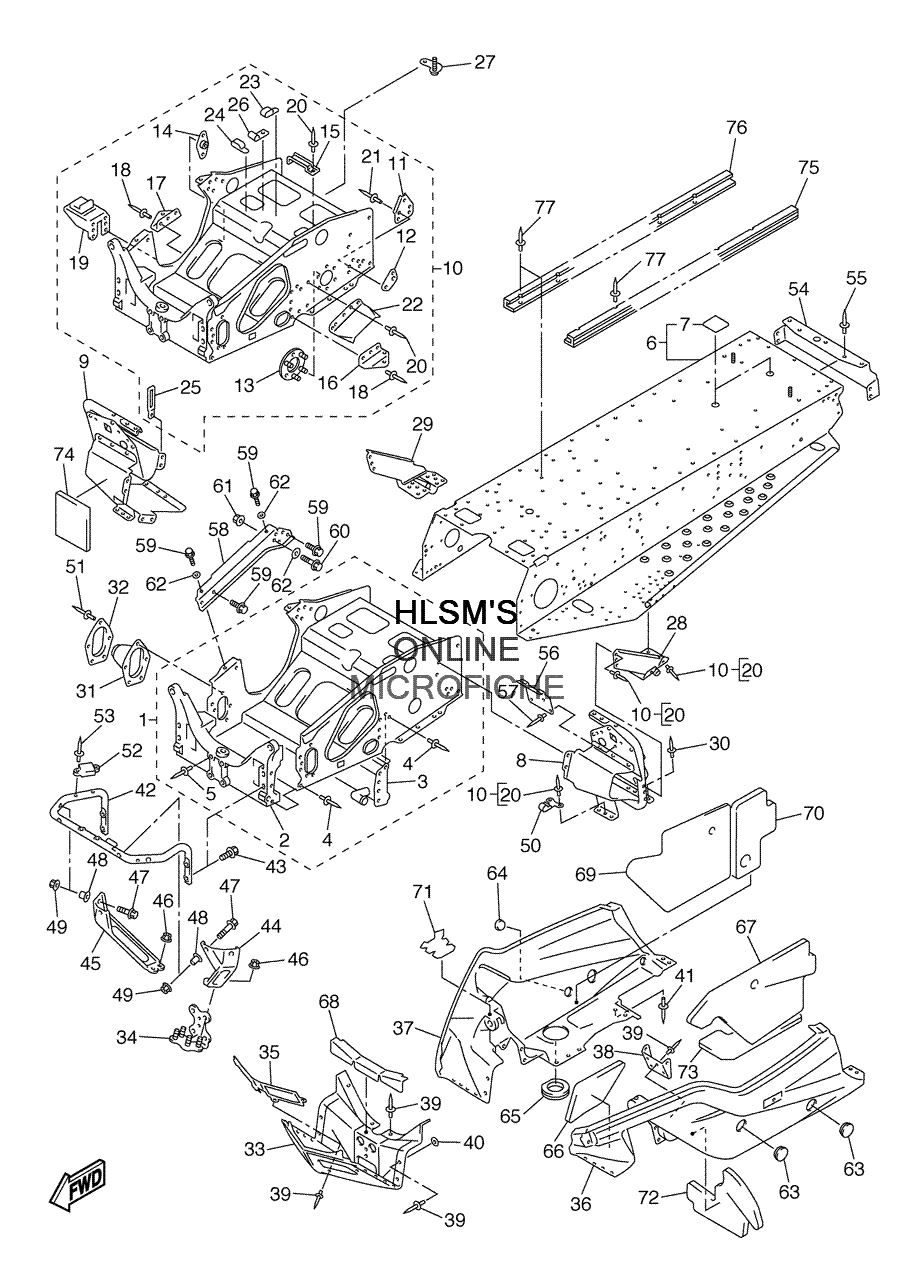

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SX VIPER ER - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-21940-28-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28EK-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38EK-12440-20-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
590267-48057-00 ...RIVET, BLIND...RIVET, BLIND
-
68EK-21950-07-00 REAR FRAME COMP.REAR FRAME COMP.
-
78CR-2198J-00-00 ...COVER 3...COVER 3
-
88EK-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
98EK-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
108EK-W2195-01-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
118CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
128CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
138EK-21920-01-00 ......HOUSING, REINF SUB-ASSY.......HOUSING, REINF SUB-ASSY.
-
148CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158DN-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
168EK-21917-00-00 ...PANEL, SUB-FRAME 6...PANEL, SUB-FRAME 6
-
178EK-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1890267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
198EK-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2090267-47186-00 ...RIVET, BLIND (QTY:125)...RIVET, BLIND (QTY:125)
-
2190267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
228CR-2198G-01-00 ...COVER 2...COVER 2
-
2390461-05003-00 ...CLAMP...CLAMP
-
2490461-06142-00 ...CLAMP...CLAMP
-
2590462-05059-00 ...CLAMP...CLAMP
-
2690461-10148-00 ...CLAMP...CLAMP
-
278EK-2196F-00-00 BRACKET 3BRACKET 3
-
288DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
298DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
3090269-07080-00 RIVETRIVET
-
318DN-2198F-00-00 COVER 1COVER 1
-
328CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
338EK-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
348EK-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
358CR-77128-00-00 STAY 4STAY 4
-
368EK-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
378EK-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
388EK-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3990267-48018-00 RIVET, BLINDRIVET, BLIND
-
4090201-05033-00 WASHER, PLATEWASHER, PLATE
-
4190267-47187-00 RIVET, BLINDRIVET, BLIND
-
428EK-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4395807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
448EK-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
458EK-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4795807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-08015-00 COLLARCOLLAR
-
4995707-08500-00 NUT, FLANGENUT, FLANGE
-
508EK-21999-00-00 CLAMP, WIREHARNESSCLAMP, WIREHARNESS
-
5190267-47197-00 RIVET, BLINDRIVET, BLIND
-
528DJ-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
5390267-48018-00 RIVET, BLINDRIVET, BLIND
-
548EK-21923-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5590267-47195-00 RIVET, BLINDRIVET, BLIND
-
568CR-21973-00-00 HOOKHOOK
-
5790267-48169-00 RIVET, BLINDRIVET, BLIND
-
588EK-21921-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5990105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6095827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6195707-10500-00 NUT, FLANGENUT, FLANGE
-
6292907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6390338-44093-00 PLUGPLUG
-
6490338-30256-00 PLUGPLUG
-
658DF-21998-10-00 SPACERSPACER
-
668EK-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
678EK-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
688EK-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
698EK-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
708EK-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
718EK-77266-10-00 LINING, SHROUD 6LINING, SHROUD 6
-
728EK-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
738EK-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
748EK-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
758FE-2195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
768FE-2195B-00-00 PROTECTOR, FRAME BPROTECTOR, FRAME B
-
7790267-50004-00 RIVET, BLINDRIVET, BLIND
