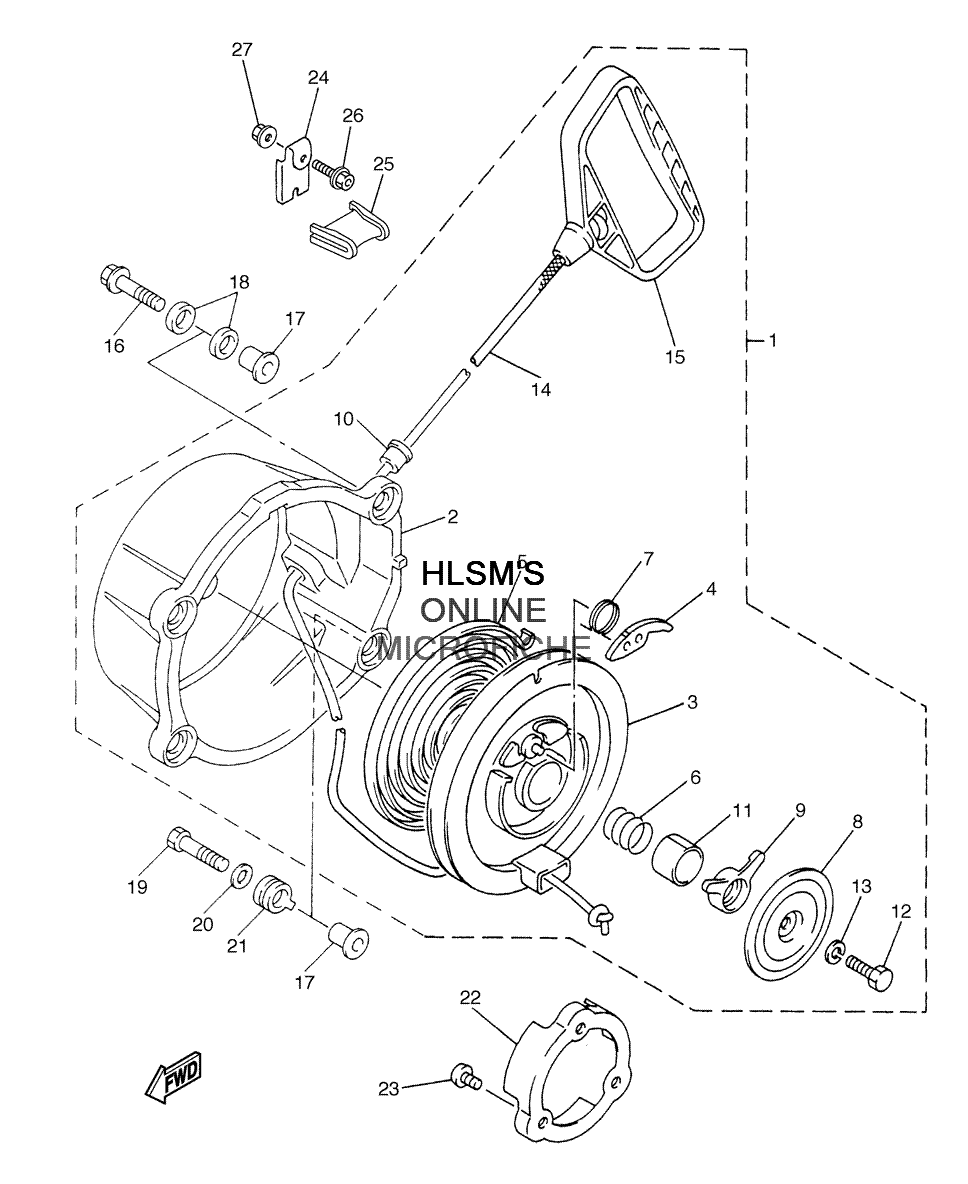

STARTER - RECOIL для Yamaha SX VIPER ER - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-15710-00-00 STARTER ASSY.STARTER ASSY.
-
28EK-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
38DF-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
48EK-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
58DF-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
68DF-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
78CH-15767-00-00 ...SPRING...SPRING
-
88DF-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
98DF-15735-00-00 ...GUIDE, CAM...GUIDE, CAM
-
108F3-15758-00-00 ...GUIDE, ROPE...GUIDE, ROPE
-
118DF-15753-00-00 ...BUSH...BUSH
-
128DF-15768-00-00 ...BOLT...BOLT
-
1392902-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
148CH-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
158F3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1690119-08240-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790387-0811L-00 COLLARCOLLAR
-
1890385-12036-00 BUSHBUSH
-
1997027-08035-00 BOLTBOLT
-
2092907-08600-00 WASHERWASHER
-
2190386-12001-00 BUSHBUSH
-
228DF-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
2392017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
248DF-15758-10-00 GUIDE, ROPEGUIDE, ROPE
-
258FF-1546C-00-00 HOLDERHOLDER
-
2695827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2795707-06500-00 NUT, FLANGENUT, FLANGE
