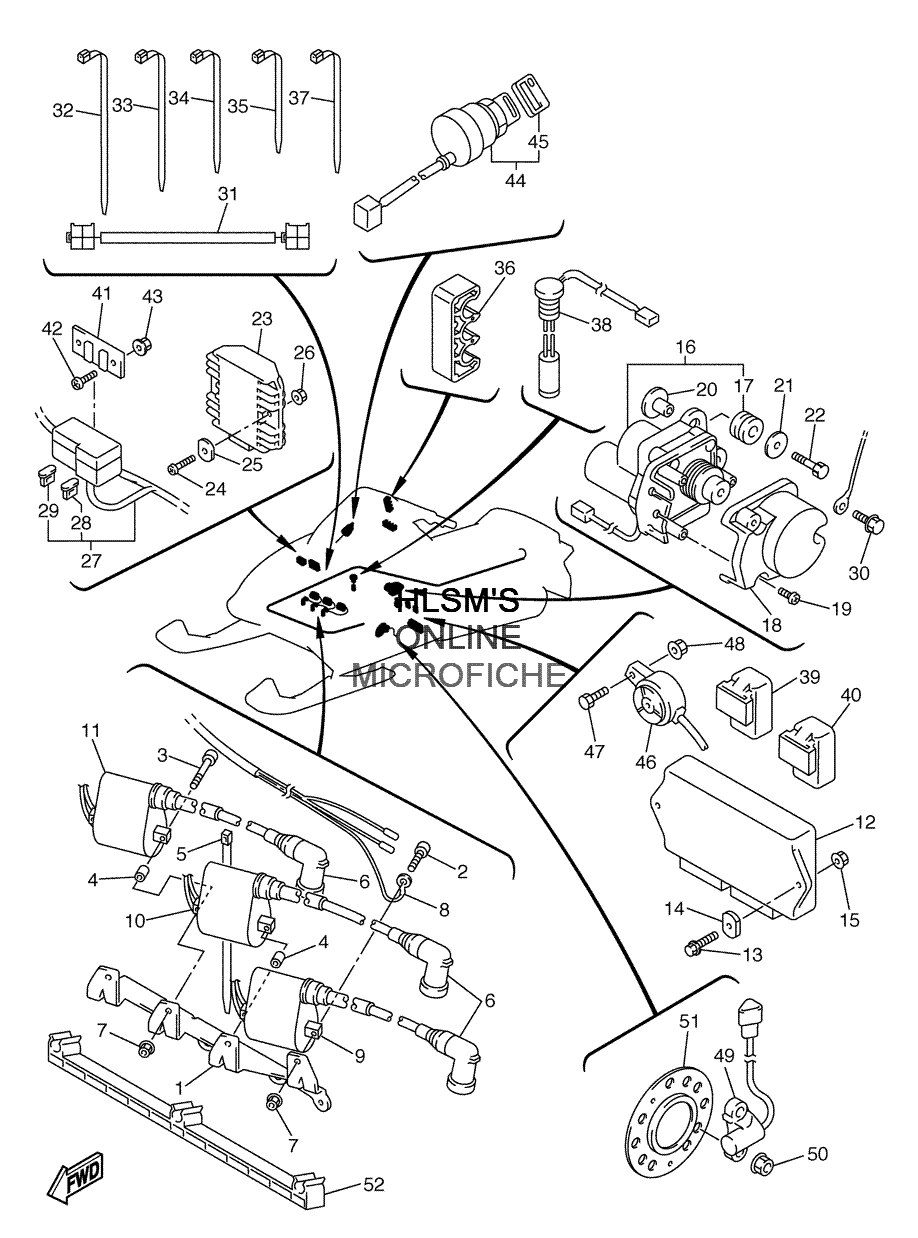

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SX VIPER ER - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLTBOLT
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590464-15195-00 CLAMPCLAMP
-
68DF-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
88EK-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
98DF-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
108DF-82310-20-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
118DF-82310-30-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
128FE-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1490179-06264-00 NUTNUT
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
168DF-85820-00-00 SERVO MOTOR ASSY.SERVO MOTOR ASSY.
-
1790480-14023-00 ...GROMMET...GROMMET
-
188DF-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
1998507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2090387-063G3-00 COLLARCOLLAR
-
2190201-06380-00 WASHER, PLATEWASHER, PLATE
-
2297007-06030-00 BOLTBOLT
-
235BN-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
2498907-06025-00 SCREW, BINDSCREW, BIND
-
2590179-06264-00 NUTNUT
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
-
278FB-82590-20-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
285JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
295JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
3097007-06010-00 BOLTBOLT
-
318DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
3290464-12045-00 CLAMPCLAMP
-
3390464-15195-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
3590464-13077-00 CLAMPCLAMP
-
3690464-07007-00 CLAMPCLAMP
-
3790460-15126-00 CLAMP, HOSECLAMP, HOSE
-
388CR-85720-01-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
398DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
405DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
41JT1-83614-00-00 BRACKETBRACKET
-
4298907-06014-00 SCREW, BINDSCREW, BIND
-
4395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
448FE-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
45526-82579-00-00 ...CAP, KEY...CAP, KEY
-
468CW-83383-00-00 BUZZERBUZZER
-
4797007-05020-00 BOLTBOLT
-
4895707-05500-00 NUT, FLANGENUT, FLANGE
-
498EK-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
5095707-08300-00 NUT, FLANGENUT, FLANGE
-
518EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
5290464-07005-00 CLAMPCLAMP
