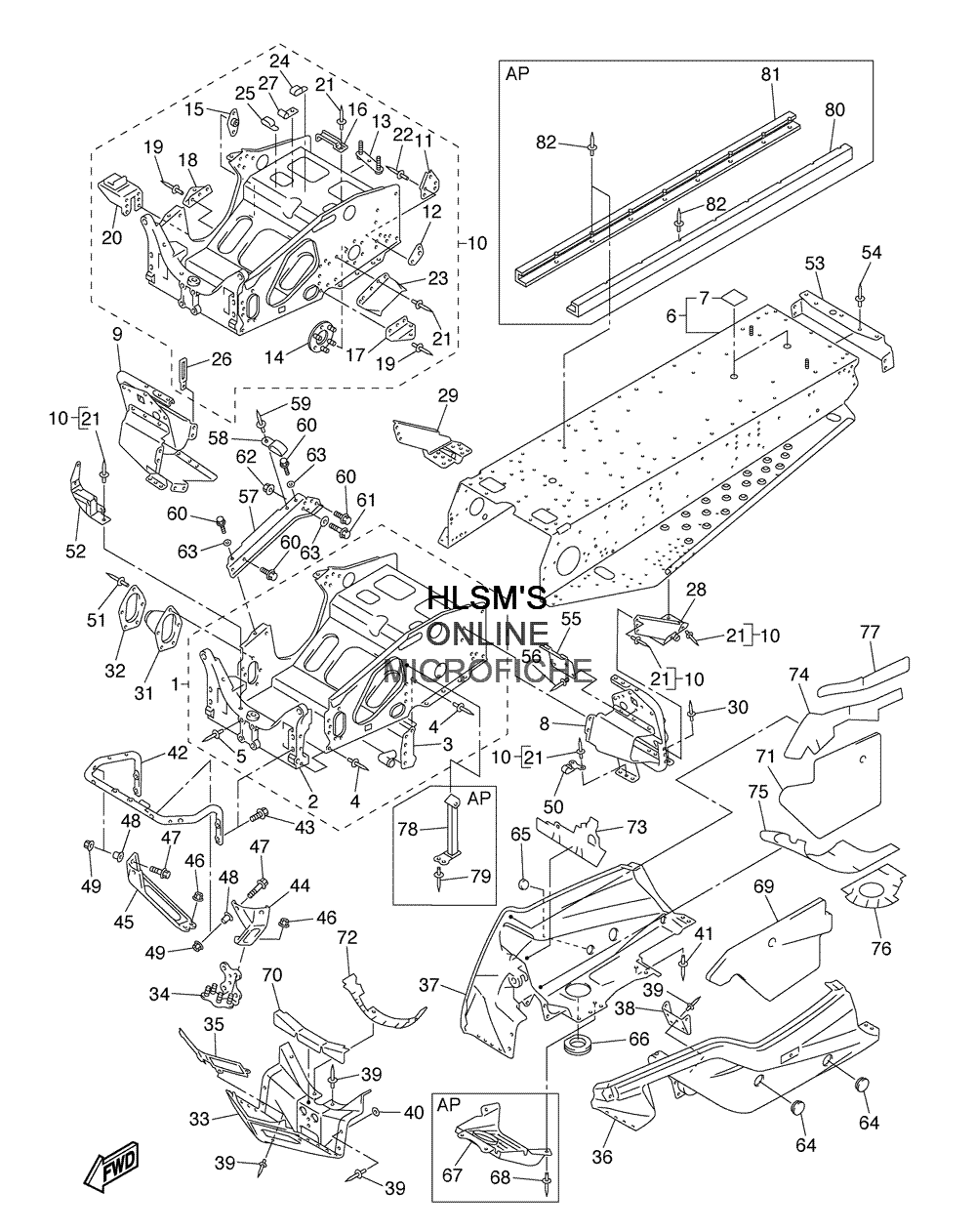

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SX VENOM - 2004 года выпуска
-
№АртикулНазвание
-
18FD-21940-09-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28EK-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38EX-12440-10-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
590267-48057-00 ...RIVET, BLIND...RIVET, BLIND
-
68EK-21950-07-00 REAR FRAME COMP.REAR FRAME COMP.
-
78CR-2198J-00-00 ...COVER 3...COVER 3
-
88EK-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
98EK-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
108EX-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
118CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
128CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
138CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
148EK-21920-01-00 ...HOUSING, REINF SUB-ASSY. (L.H)...HOUSING, REINF SUB-ASSY. (L.H)
-
158CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
168DN-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
178EK-21917-00-00 ......PANEL, SUB-FRAME 6......PANEL, SUB-FRAME 6
-
188EK-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1990267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
208EX-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2190267-47186-00 ...RIVET, BLIND (QTY:130)...RIVET, BLIND (QTY:130)
-
2290267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
238CR-2198G-01-00 ...COVER 2...COVER 2
-
2490461-05003-00 ...CLAMP...CLAMP
-
2590461-06142-00 ...CLAMP...CLAMP
-
2690462-05059-00 ...CLAMP...CLAMP
-
2790461-10148-00 ...CLAMP...CLAMP
-
288DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
298DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
3090269-07080-00 RIVETRIVET
-
318DN-2198F-00-00 COVER 1COVER 1
-
328CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
338EX-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
348EK-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
358CR-77128-00-00 STAY 4STAY 4
-
368EK-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
378EK-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
388EK-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3990267-48018-00 RIVET, BLINDRIVET, BLIND
-
4090201-05033-00 WASHER, PLATEWASHER, PLATE
-
4190267-47187-00 RIVET, BLINDRIVET, BLIND
-
428EK-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4395807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
448EK-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
458EK-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4795807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-08015-00 COLLARCOLLAR
-
4995707-08500-00 NUT, FLANGENUT, FLANGE
-
508EK-21999-00-00 CLAMP, WIREHARNESSCLAMP, WIREHARNESS
-
5190267-47197-00 RIVET, BLINDRIVET, BLIND
-
528EX-21971-00-00 BRACKET, SPRINGBRACKET, SPRING
-
538EK-21923-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5490267-47195-00 RIVET, BLINDRIVET, BLIND
-
558CR-21973-00-00 HOOKHOOK
-
5690267-48169-00 RIVET, BLINDRIVET, BLIND
-
578CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5890461-08113-00 CLAMPCLAMP
-
5990267-48095-00 RIVET, BLINDRIVET, BLIND
-
6090105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6195827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6295707-10500-00 NUT, FLANGENUT, FLANGE
-
6392907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6490338-44093-00 PLUGPLUG
-
6590338-30256-00 PLUGPLUG
-
668DF-21998-10-00 SPACERSPACER
-
678EN-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
6890267-49004-00 RIVET, BLINDRIVET, BLIND
-
698EK-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
708EK-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
718EK-77264-10-00 LINING, SHROUD 4LINING, SHROUD 4
-
728EX-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
738EX-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
748EX-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
758EX-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
768EX-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
778EX-7717J-00-00 TAPE, 5TAPE, 5
-
788DY-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
7990267-48016-00 RIVET, BLINDRIVET, BLIND
-
808FE-2195A-10-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
818FE-2195B-00-00 PROTECTOR, FRAME BPROTECTOR, FRAME B
-
8290267-50004-00 RIVET, BLINDRIVET, BLIND
