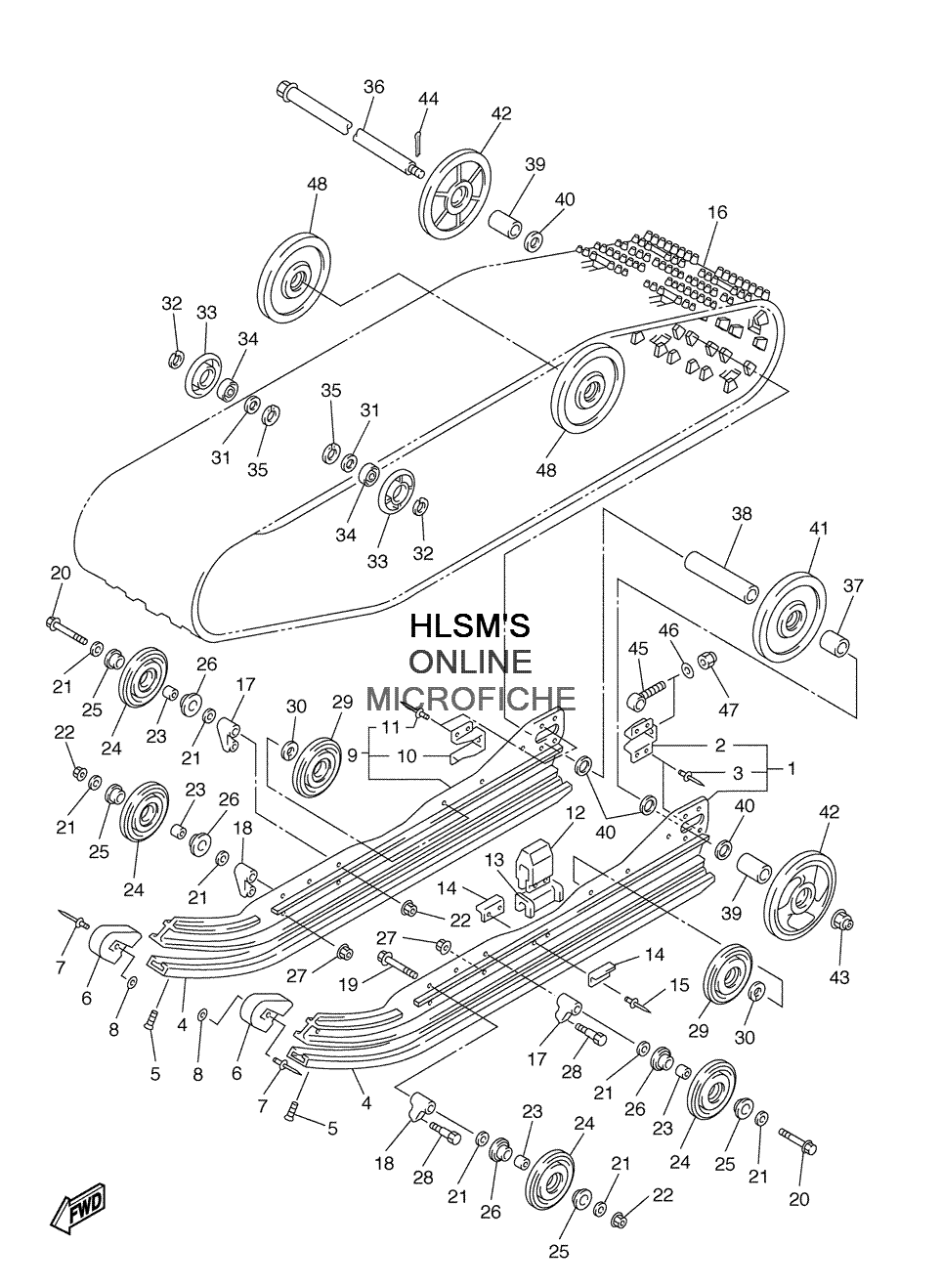

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SX VENOM - 2004 года выпуска`
-
№АртикулНазвание
-
18DY-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48CM-47421-40-00 RUNNER, SLIDING 121 BLACKRUNNER, SLIDING 121 BLACK
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68CM-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98DY-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108DM-4741B-00-00 ...BRACKET...BRACKET
-
118V0-47468-00-00 ...RIVET...RIVET
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168DY-47110-00-00 TRACK ASSY 15X121X1.TRACK ASSY 15X121X1.
-
178DF-47419-00-00 BRACKET 7BRACKET 7
-
188DF-47419-10-00 BRACKET 7BRACKET 7
-
1990105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
2095817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-100S0-00 WASHER, PLATEWASHER, PLATE
-
2295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390387-10079-00 COLLARCOLLAR
-
248CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
258CR-47341-01-00 SPACERSPACER
-
268CR-47341-11-00 SPACERSPACER
-
2795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890101-08774-00 BOLTBOLT
-
298CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
3099009-25400-00 CIRCLIPCIRCLIP
-
3190387-2004V-00 COLLARCOLLAR
-
3299009-20400-00 CIRCLIPCIRCLIP
-
338H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
3493306-00444-00 BEARINGBEARING
-
3599009-42500-00 CIRCLIPCIRCLIP
-
368L8-47520-02-00 REAR AXLE COMP.REAR AXLE COMP.
-
3790387-2012E-00 COLLARCOLLAR
-
3890387-2012C-00 COLLARCOLLAR
-
3990387-2012D-00 COLLARCOLLAR
-
4090201-205R6-00 WASHER, PLATEWASHER, PLATE
-
418CR-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
428EK-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
4395607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4491401-30025-00 PIN, SPLITPIN, SPLIT
-
458DM-47479-00-00 COLLAR 3COLLAR 3
-
4692907-10600-00 WASHER, PLATEWASHER, PLATE
-
4795707-10300-00 NUT, FLANGENUT, FLANGE
-
488CR-47550-00-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
