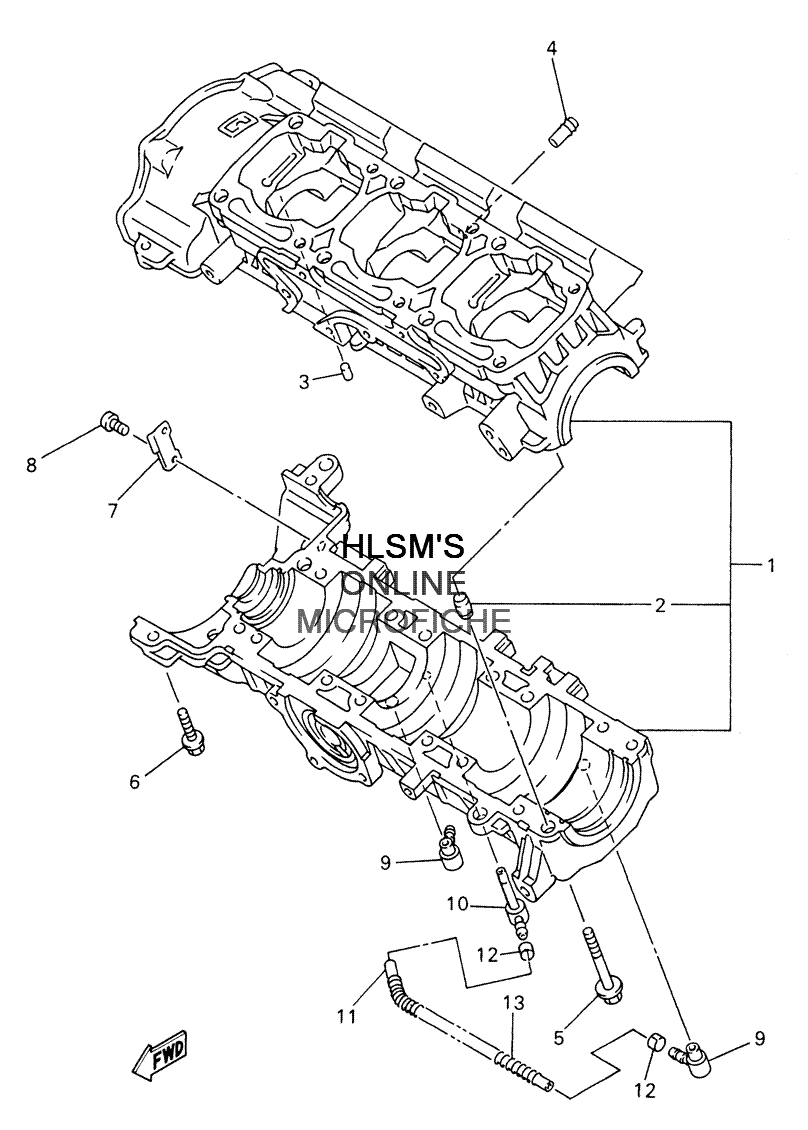

CRANKCASE ASSY для Yamaha SX VENOM ER - 2004 года выпуска`
-
№АртикулНазвание
-
18CH-15100-03-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
393605-10108-00 PIN, DOWELPIN, DOWEL
-
4J38-11116-00-00 JOINT, BREATHERJOINT, BREATHER
-
595817-08080-00 BOLT, FLANGEBOLT, FLANGE
-
695817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
790461-12145-00 CLAMPCLAMP
-
898507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
9353-13552-01-00 NOZZLENOZZLE
-
108CH-13552-00-00 NOZZLENOZZLE
-
1190446-08382-00 HOSEHOSE
-
1290468-02025-00 CLIPCLIP
-
1390501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
