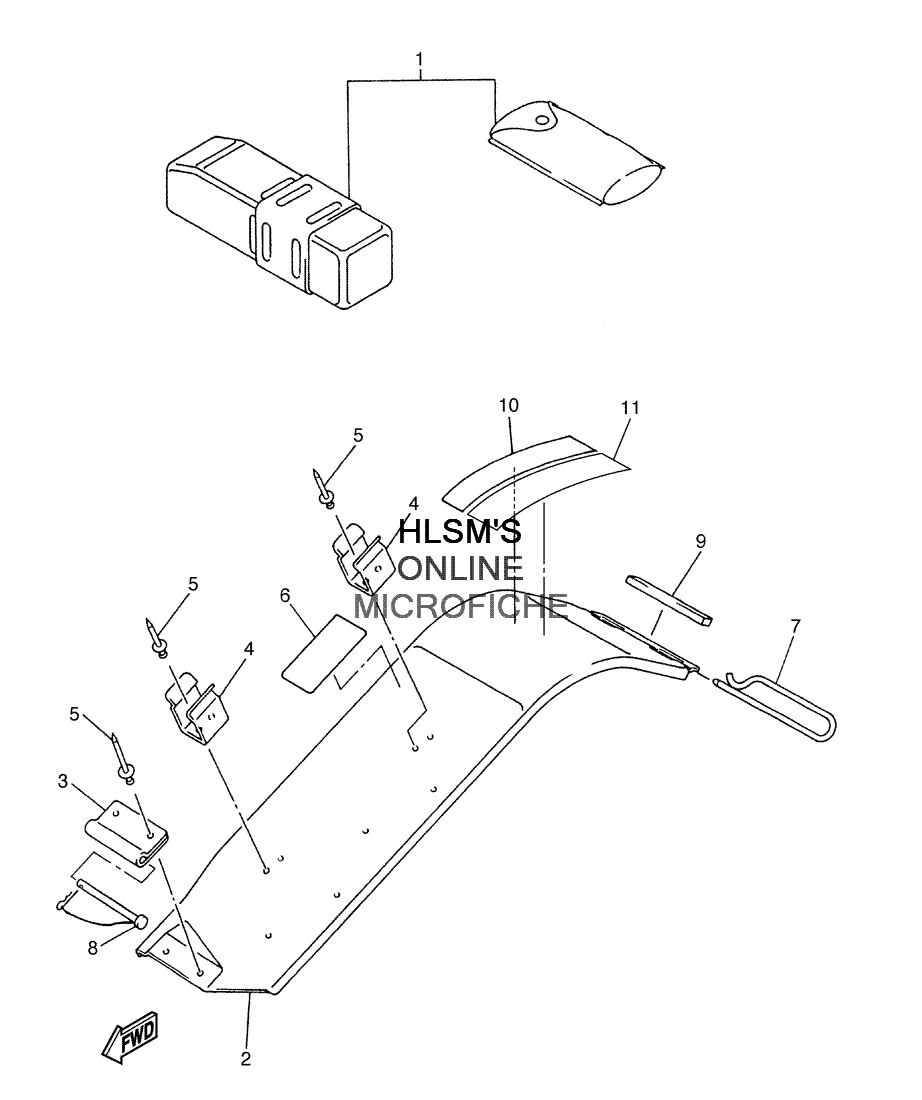

BELT GUARD W/ TOOL BOX для Yamaha SX VENOM ER - 2004 года выпуска`
-
№АртикулНазвание
-
18DF-28100-00-00 TOOL BOXTOOL BOX
-
28CR-77311-10-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77315-00-00 BRACKET 1BRACKET 1
-
48CR-77338-00-00 STAY, BELTSTAY, BELT
-
590267-48177-00 RIVET, BLINDRIVET, BLIND
-
68BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
78CR-77384-00-00 PINPIN
-
883R-77327-00-00 SHAFTSHAFT
-
98CR-77319-00-00 DAMPER 1DAMPER 1
-
108FD-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
118EK-47578-10-00 LABEL 1LABEL 1
