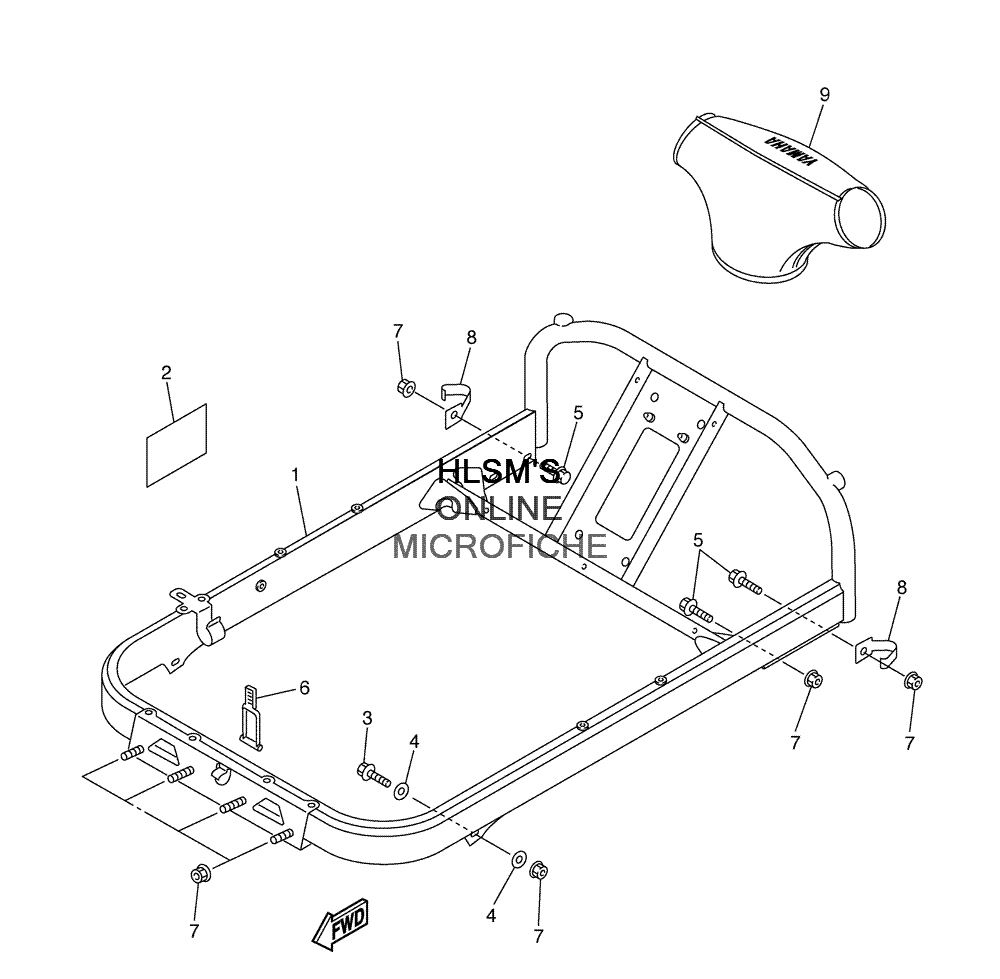

HANDLEBAR PAD W/ STEERING GATE для Yamaha RX WARRIOR - 2004 года выпуска
-
№АртикулНазвание
-
18FA-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
28FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
390105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
490201-08326-00 WASHER, PLATEWASHER, PLATE
-
595827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-2389E-00-00 LATCHLATCH
-
795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890462-10022-00 CLAMPCLAMP
-
98FA-23815-00-00 PAD, STEERINGPAD, STEERING
