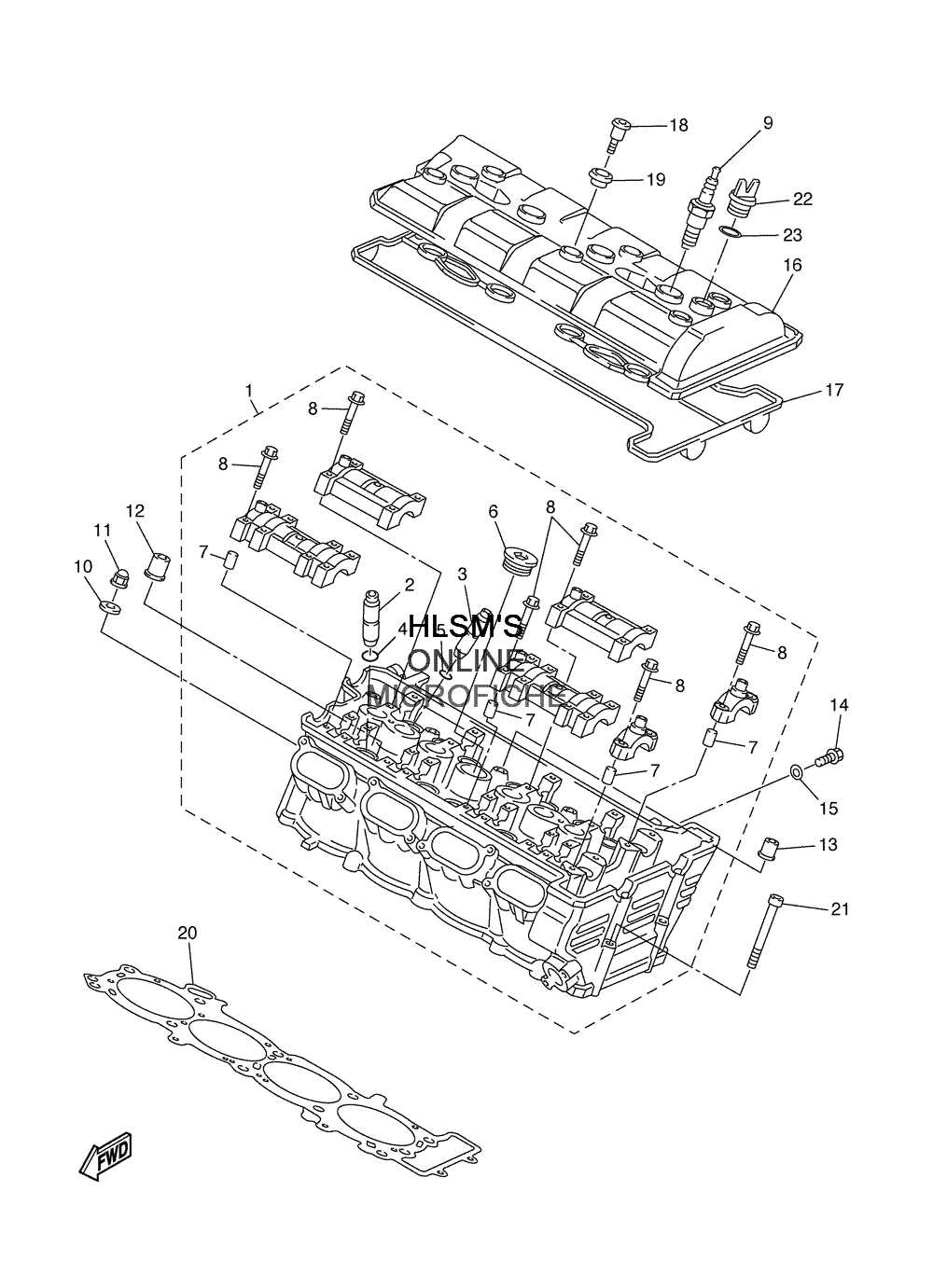

CYLINDER W/ HEAD ASSY для Yamaha RX WARRIOR - 2004 года выпуска`
-
№АртикулНазвание
-
18FA-11102-02-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
23TJ-11133-10-00 ...,GDE, INTK VLV 1 O/S...,GDE, INTK VLV 1 O/S
-
31WG-11133-11-00 ...GUIDE, VALVE...GUIDE, VALVE
-
493440-07149-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
593440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
890105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
994701-00410-00 PLUG, SPARK (NGK CR9E)PLUG, SPARK (NGK CR9E)
-
1090201-10013-00 WASHER, PLATEWASHER, PLATE
-
1190176-10075-00 NUT, CROWNNUT, CROWN
-
1290179-10006-00 NUTNUT
-
1390179-10414-00 NUTNUT
-
1495027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1590430-06014-00 GASKETGASKET
-
168FA-11191-00-00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
178FA-11193-00-00 GASKET, HEAD COVERGASKET, HEAD COVER
-
1890109-066F0-00 BOLTBOLT
-
194KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
208FA-11181-01-00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2191317-06060-00 BOLTBOLT
-
223Y1-15363-00-00 PLUG, OILPLUG, OIL
-
2393210-19123-00 O-RINGO-RING
