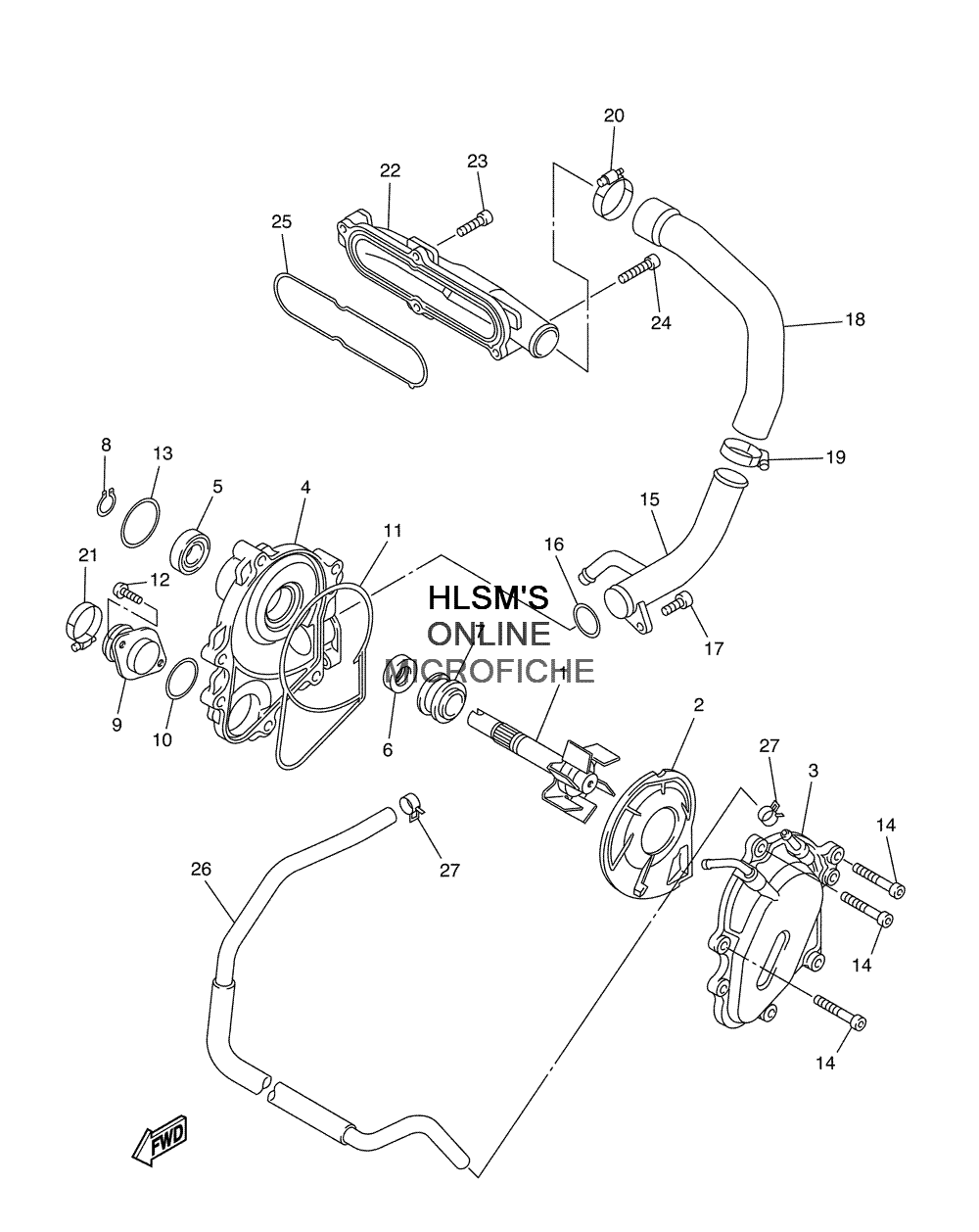

WATER PUMP ASSY для Yamaha RX WARRIOR LIMITED EDITION - 2004 года выпуска`
-
№АртикулНазвание
-
18FA-12450-00-00 IMPELLER SHAFT ASSY.IMPELLER SHAFT ASSY.
-
28FA-1243G-00-00 COVER, IMPELLERCOVER, IMPELLER
-
38FA-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
48FA-12421-00-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
593306-00106-00 BEARINGBEARING
-
693101-12173-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
711H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
899009-12400-00 CIRCLIPCIRCLIP
-
98FA-1247A-00-00 JOINT 2JOINT 2
-
1093210-22M93-00 O-RINGO-RING
-
118FA-12439-00-00 O-RINGO-RING
-
1290167-05004-00 SCREW, TAPPINGSCREW, TAPPING
-
1393210-386A6-00 O-RINGO-RING
-
1491317-06035-00 BOLTBOLT
-
158FA-12481-00-00 PIPE 1PIPE 1
-
1693210-235A1-00 O-RINGO-RING
-
1791317-06012-00 BOLTBOLT
-
188FA-12552-00-00 HOSE 8HOSE 8
-
1990450-35001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2090450-38040-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2190450-35001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
228FA-12469-00-00 JOINT 1JOINT 1
-
2391317-06020-00 BOLTBOLT
-
2491317-06035-00 BOLTBOLT
-
258FA-12435-00-00 GASKETGASKET
-
268FA-12485-00-00 PIPE 5PIPE 5
-
2790467-11090-00 CLIP, SCISSORCLIP, SCISSOR
