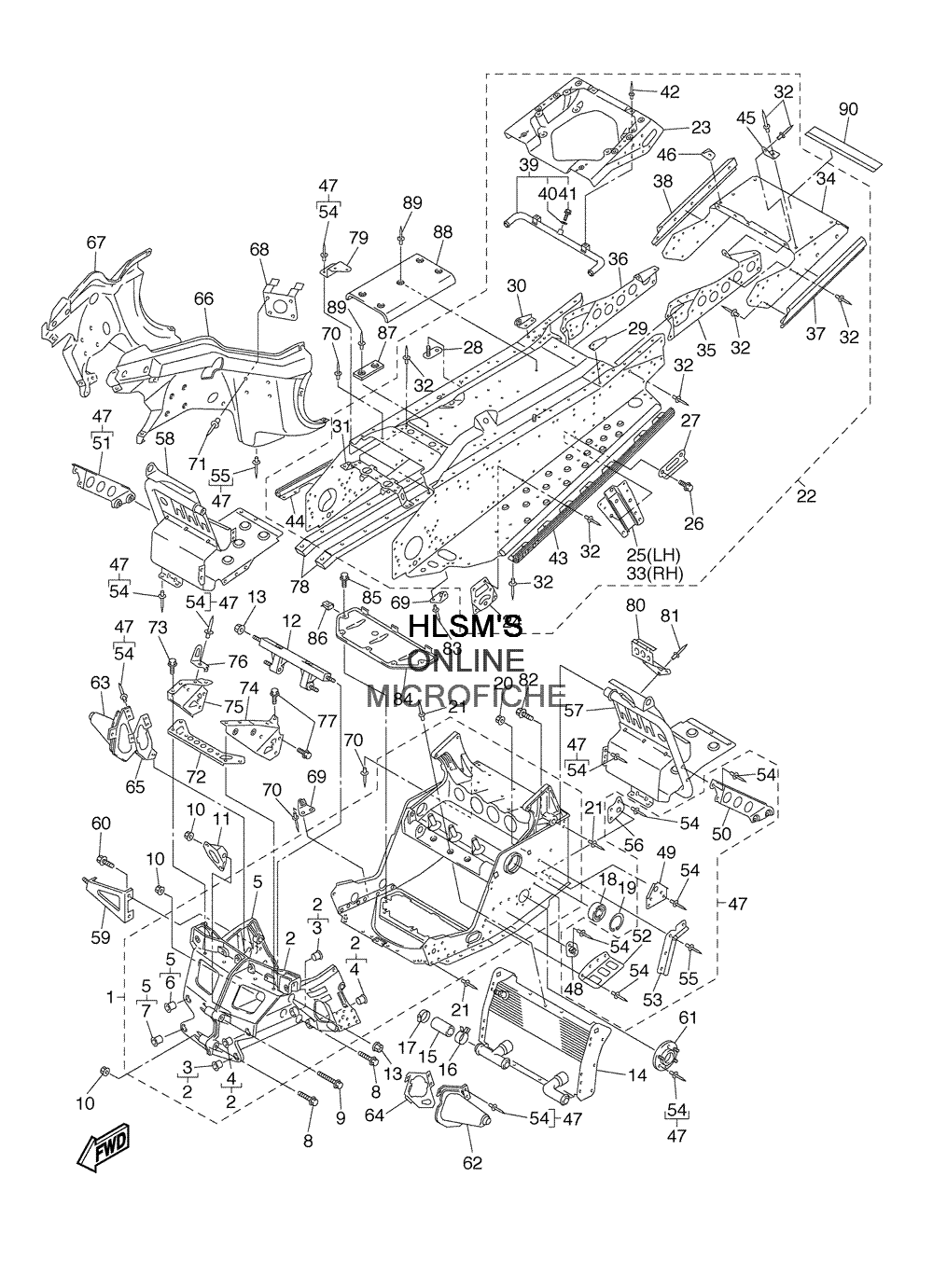

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RX WARRIOR LIMITED EDITION - 2004 года выпуска
-
№АртикулНазвание
-
18FA-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148FA-12440-00-00 HEAT EXCHANGER ASSY.HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 HOSE 7HOSE 7
-
1690467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1790450-35001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
1893306-20650-00 BEARINGBEARING
-
1999009-62500-00 CIRCLIPCIRCLIP
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190267-47195-00 RIVET, BLINDRIVET, BLIND
-
228FG-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
238FA-W2199-01-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
248FG-21965-00-00 ...PATCH 5...PATCH 5
-
258FG-21944-00-00 ......BRACKET, RR. TRACK SUSPENS......BRACKET, RR. TRACK SUSPENS
-
2695817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
278FG-47467-00-00 ...PLATE, GUIDE...PLATE, GUIDE
-
288CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
298FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
308FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
318FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3290267-47195-00 ...RIVET, BLIND (QTY:131)...RIVET, BLIND (QTY:131)
-
338FG-21954-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
348FG-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
358FG-21963-00-00 ...PATCH 3...PATCH 3
-
368FG-21964-00-00 ...PATCH 4...PATCH 4
-
378FG-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
388FG-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
398FA-1241A-00-00 ...HEAT EXCHANGER ASSY. 4...HEAT EXCHANGER ASSY. 4
-
4090210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
4195817-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4290267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
438FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
448FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
458FG-21988-00-00 ...PATCH 8...PATCH 8
-
468FG-21989-00-00 ...PATCH 9...PATCH 9
-
478FG-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
488CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
498CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
508FG-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
518FG-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
528FA-2198G-00-00 ...COVER 2...COVER 2
-
538FA-21999-00-00 ...CLAMP, WIREHARNESS...CLAMP, WIREHARNESS
-
5490267-47195-00 ...RIVET, BLIND (QTY:104)...RIVET, BLIND (QTY:104)
-
5590267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
568FA-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
578FG-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
588FG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
598FA-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6095827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
618EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
628FA-2198F-00-00 COVER 1COVER 1
-
638FA-2198J-00-00 COVER 3COVER 3
-
648FA-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
658FA-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
668FA-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
668FA-2196A-00-00 FRAME UNDER 1 FOR BLACKFRAME UNDER 1 FOR BLACK
-
668FA-2196A-10-00 FRAME UNDER 1 SILVER 3FRAME UNDER 1 SILVER 3
-
678FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
678FA-2196E-00-00 FRAME, UNDER 2 FOR BLACKFRAME, UNDER 2 FOR BLACK
-
678FA-2196E-10-00 FRAME, UNDER 2 SILVER 3FRAME, UNDER 2 SILVER 3
-
688FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
698FA-2196F-00-00 BRACKET 3BRACKET 3
-
7090267-48083-00 RIVET, BLINDRIVET, BLIND
-
7190267-47200-00 RIVET, BLINDRIVET, BLIND
-
728FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
748FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
758FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
768FA-77125-00-00 STAY 1STAY 1
-
7795827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
788FG-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
798FA-2197N-00-00 BRACKET 7BRACKET 7
-
808FA-21973-00-00 HOOKHOOK
-
8190267-47195-00 RIVET, BLINDRIVET, BLIND
-
8295827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8390267-48095-00 RIVET, BLINDRIVET, BLIND
-
848FA-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8590109-065F3-00 BOLTBOLT
-
8690183-06053-00 NUT, SPRINGNUT, SPRING
-
878FA-21998-00-00 SPACERSPACER
-
888FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-48059-00 RIVET, BLINDRIVET, BLIND
-
9088X-77762-10-00 LABEL, WARNINGLABEL, WARNING
