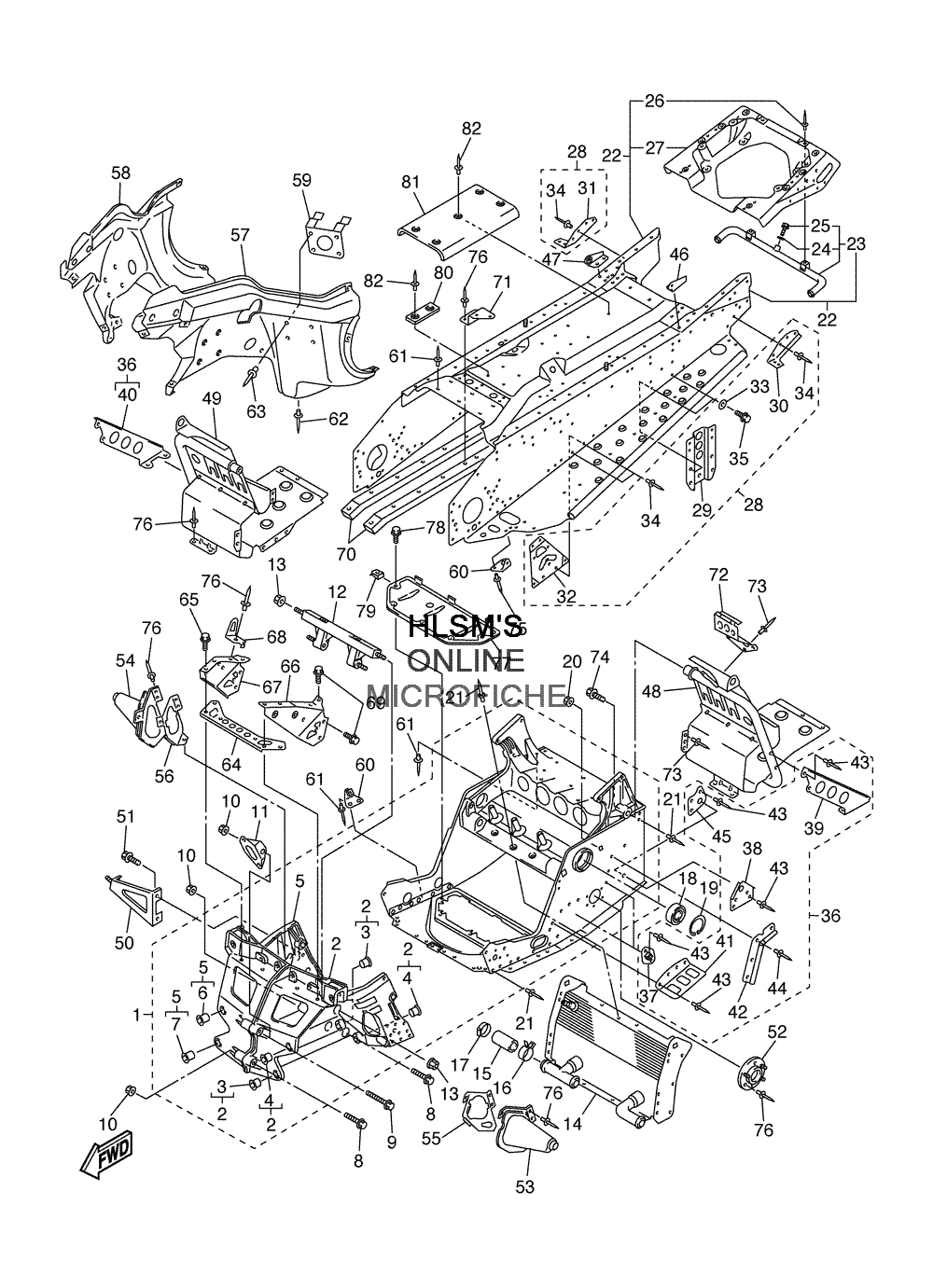

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RX-1 LIMITED EDITION - 2004 года выпуска
-
№АртикулНазвание
-
18FA-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148FA-12440-00-00 HEAT EXCHANGER ASSY.HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 HOSE 7HOSE 7
-
1690467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1790450-35001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
1893306-20650-00 BEARINGBEARING
-
1999009-62500-00 CIRCLIPCIRCLIP
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190267-47195-00 RIVET, BLINDRIVET, BLIND
-
228FA-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
238FA-1241A-00-00 ...HEAT EXCHANGER ASSY. 4...HEAT EXCHANGER ASSY. 4
-
2490210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
2595817-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
2690267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
278FA-W2199-00-00 ...REINEFORCEMENT, FRAME REAR...REINEFORCEMENT, FRAME REAR
-
288FA-W2196-00-00 PANEL, SUB-FRAME KITPANEL, SUB-FRAME KIT
-
298FA-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
308FA-21963-00-00 ...PATCH 3...PATCH 3
-
318FA-21964-00-00 ...PATCH 4...PATCH 4
-
328FA-21965-00-00 ...PATCH 5...PATCH 5
-
3390201-100S0-00 ...WASHER, PLATE...WASHER, PLATE
-
3490267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
3595817-10022-00 ...BOLT, FLANGE...BOLT, FLANGE
-
368FA-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
378CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
388CR-21943-01-00 ...BRACKET, MAIN TRACK...BRACKET, MAIN TRACK
-
398FA-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
408FA-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
418FA-2198G-00-00 ...COVER 2...COVER 2
-
428FA-21999-00-00 ......CLAMP, WIREHARNESS......CLAMP, WIREHARNESS
-
4390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
4490267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
458FA-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
468FA-2194X-00-00 BRACKET 1BRACKET 1
-
478FA-2195X-00-00 BRACKET 2BRACKET 2
-
488FG-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
498FG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
508FA-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
5195827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
528EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
538FA-2198F-00-00 COVER 1COVER 1
-
548FA-2198J-00-00 COVER 3COVER 3
-
558FA-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
568FA-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
578FA-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
578FA-2196A-00-00 FRAME UNDER 1 (FOR YB)FRAME UNDER 1 (FOR YB)
-
578FA-2196A-10-00 FRAME UNDER 1 (FOR S3)FRAME UNDER 1 (FOR S3)
-
588FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
588FA-2196E-00-00 FRAME, UNDER 2 (FOR YB)FRAME, UNDER 2 (FOR YB)
-
588FA-2196E-10-00 FRAME, UNDER 2 (FOR S3)FRAME, UNDER 2 (FOR S3)
-
598FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
608FA-2196F-00-00 BRACKET 3BRACKET 3
-
6190267-48083-00 RIVET, BLINDRIVET, BLIND
-
6290267-48018-00 RIVET, BLINDRIVET, BLIND
-
6390267-47200-00 RIVET, BLINDRIVET, BLIND
-
648FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
6595827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
668FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
678FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
688FA-77125-00-00 STAY 1STAY 1
-
6995827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
708FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
718FA-2197N-00-00 BRACKET 7BRACKET 7
-
728FA-21973-00-00 HOOKHOOK
-
7390267-47195-00 RIVET, BLINDRIVET, BLIND
-
7495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7590267-48095-00 RIVET, BLINDRIVET, BLIND
-
7690267-47195-00 RIVET, BLIND (QTY:104)RIVET, BLIND (QTY:104)
-
778FA-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
7890109-065F3-00 BOLTBOLT
-
7990183-06053-00 NUT, SPRINGNUT, SPRING
-
808FA-21998-00-00 SPACERSPACER
-
818FA-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8290267-48059-00 RIVET, BLINDRIVET, BLIND
