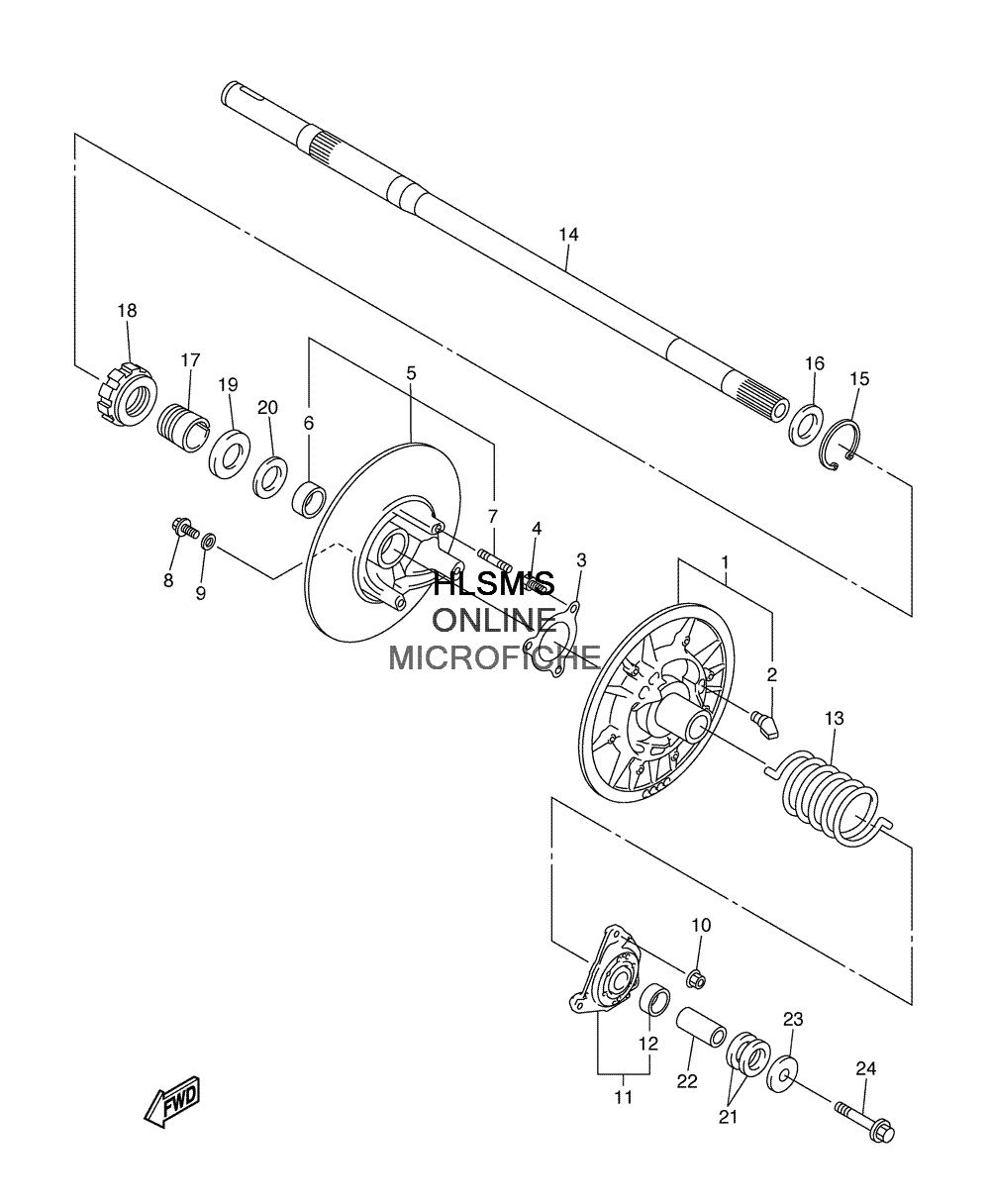

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha RX-1 LIMITED EDITION - 2004 года выпуска`
-
№АртикулНазвание
-
18ER-17660-20-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28ER-17688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
38BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
490154-06062-00 SCREW, BINDINGSCREW, BINDING
-
58BU-17670-20-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
795617-08630-00 ...BOLT, STUD...BOLT, STUD
-
890105-06734-00 BOLT, FLANGEBOLT, FLANGE
-
990201-061H1-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
990201-06037-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
1090179-08655-00 NUTNUT
-
118FA-17604-00-00 SEAT SPRING SETSEAT SPRING SET
-
1290384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1390508-60012-00 SPRING, TORSION (PINK)SPRING, TORSION (PINK)
-
148FA-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
1599009-30400-00 CIRCLIPCIRCLIP
-
1690201-30666-00 WASHER, PLATEWASHER, PLATE
-
178FA-17645-10-00 COLLARCOLLAR
-
188FA-17642-00-00 NUT, BEARINGNUT, BEARING
-
1990209-25012-00 WASHERWASHER
-
2090201-25289-00 WASHER, PLATE (T1.6)WASHER, PLATE (T1.6)
-
2190201-225A4-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2190201-222F0-00 WASHER, PLATE (T=0.5)WASHER, PLATE (T=0.5)
-
2290387-1407L-00 COLLARCOLLAR
-
2390201-141A3-00 WASHER, PLATEWASHER, PLATE
-
2490105-14766-00 BOLT, FLANGEBOLT, FLANGE
