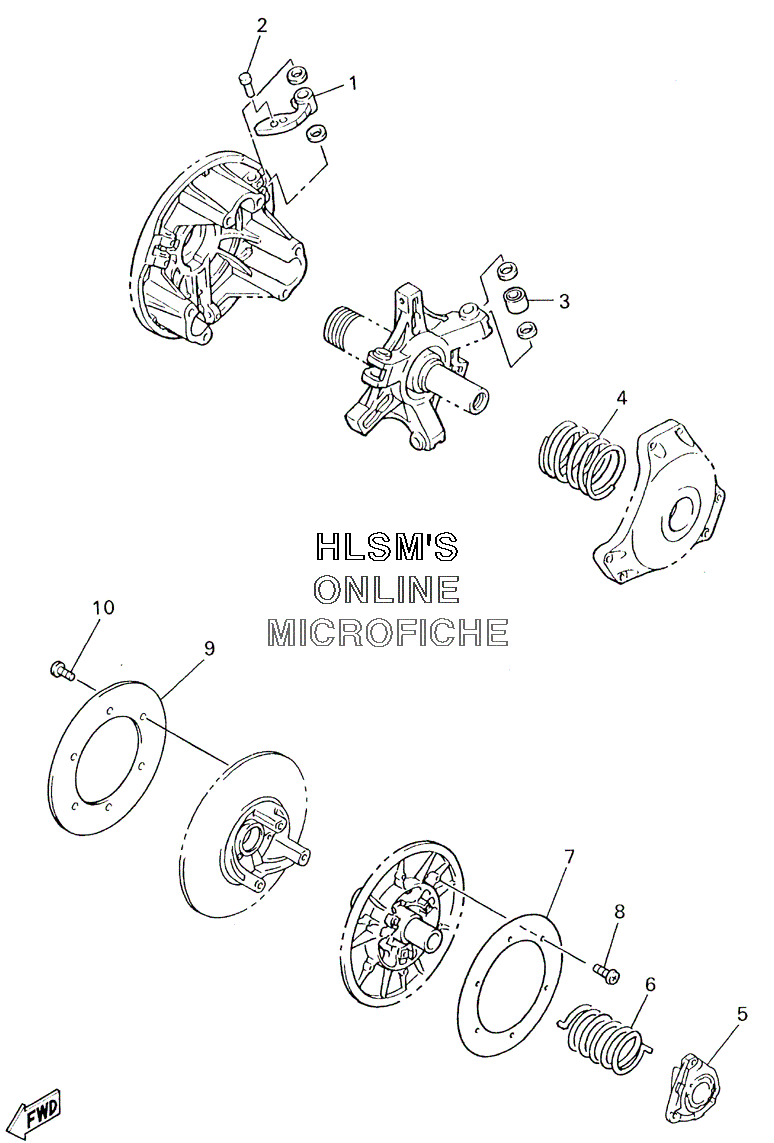

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha VMAX 600 ER - 2003 года выпуска`

№

Артикул

Название
1

8CR-17605-10-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

10 700 ₽
1

8CH-17605-10-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

8 340 ₽
1

8DG-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

8 500 ₽
1

8DJ-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

7 550 ₽
1

8DN-17605-20-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

9 130 ₽
1

8EK-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)

9 760 ₽
2

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)

RIVET, COUNTERSUNK (ST13.3MM) (OPT)

180 ₽
2

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)

RIVET, COUNTERSUNK (ST13.9MM) (OPT)

250 ₽
2

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)

RIVET, COUNTERSUNK (ST10.3MM) (OPT)

320 ₽
2

90261-06017-00 RIVET, COUNTERSUNK (ST11.3MM) (OPT)

RIVET, COUNTERSUNK (ST11.3MM) (OPT)

380 ₽
2

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)

RIVET, COUNTERSUNK (ST17.2MM) (OPT)

290 ₽
2

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)

RIVET, COUNTERSUNK (AL10.3MM) (OPT)

160 ₽
3

8CR-17624-10-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

4 720 ₽
3

8CR-17624-30-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

6 920 ₽
3

8CR-17624-20-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

6 920 ₽
3

8CR-17624-00-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)

8 500 ₽
4

90501-551L3-00 SPRING, COMPRESSION (OPT) (BL-P-BL)

SPRING, COMPRESSION (OPT) (BL-P-BL)

3 770 ₽
4

90501-624L8-00 SPRING, COMPRESSION (OPT) (OR-SL-OR)

SPRING, COMPRESSION (OPT) (OR-SL-OR)

4 400 ₽
4

90501-603L3-00 SPRING, COMPRESSION (OPT) (GR-WH-GR)

SPRING, COMPRESSION (OPT) (GR-WH-GR)

3 620 ₽
4

90501-603L2-00 SPRING, COMPRESSION (OPT) (Y-WH-Y)

SPRING, COMPRESSION (OPT) (Y-WH-Y)

4 250 ₽
4

90501-602L9-00 SPRING, COMPRESSION (OPT) (P-GR-P)

SPRING, COMPRESSION (OPT) (P-GR-P)

4 250 ₽
4

90501-602L8-00 SPRING, COMPRESSION (OPT) (GR-GR-GR)

SPRING, COMPRESSION (OPT) (GR-GR-GR)

4 250 ₽
4

90501-602L3-00 SPRING, COMPRESSION (OPT) (P-SL-P)

SPRING, COMPRESSION (OPT) (P-SL-P)

4 250 ₽
4

90501-601L8-00 SPRING, COMPRESSION (OPT) (OR-P-OR)

SPRING, COMPRESSION (OPT) (OR-P-OR)

4 250 ₽
4

90501-601L7-00 SPRING, COMPRESSION (OPT) (P-P-P)

SPRING, COMPRESSION (OPT) (P-P-P)

4 250 ₽
4

90501-583L5-00 SPRING, COMPRESSION (OPT) (WH-P-WH)

SPRING, COMPRESSION (OPT) (WH-P-WH)

4 250 ₽
4

90501-583L4-00 SPRING, COMPRESSION (OPT) (WH-SL-WH)

SPRING, COMPRESSION (OPT) (WH-SL-WH)

5 030 ₽
4

90501-583L1-00 SPRING, COMPRESSION (OPT) (WH-WH-WH)

SPRING, COMPRESSION (OPT) (WH-WH-WH)

4 250 ₽
4

90501-583L0-00 SPRING, COMPRESSION (OPT) (BL-WH-BL)

SPRING, COMPRESSION (OPT) (BL-WH-BL)

4 250 ₽
4

90501-582L7-00 SPRING, COMPRESSION (OPT) (Y-GR-Y)

SPRING, COMPRESSION (OPT) (Y-GR-Y)

3 300 ₽
4

90501-582L6-00 SPRING, COMPRESSION (OPT) (WH-GR-WH)

SPRING, COMPRESSION (OPT) (WH-GR-WH)

3 770 ₽
4

90501-552L5-00 SPRING, COMPRESSION (OPT) (BL-GR-BL)

SPRING, COMPRESSION (OPT) (BL-GR-BL)

3 770 ₽
4

90501-581L5-00 SPRING, COMPRESSION (OPT) (Y-P-Y)

SPRING, COMPRESSION (OPT) (Y-P-Y)

3 300 ₽
4

90501-581L6-00 SPRING, COMPRESSION (OPT) (GR-P-GR)

SPRING, COMPRESSION (OPT) (GR-P-GR)

3 300 ₽
4

90501-582L2-00 SPRING, COMPRESSION (OPT) (GR-SL-GR)

SPRING, COMPRESSION (OPT) (GR-SL-GR)

3 300 ₽
4

90501-582L1-00 SPRING, COMPRESSION (OPT) (Y-SL-Y)

SPRING, COMPRESSION (OPT) (Y-SL-Y)

3 300 ₽
4

90501-551L9-00 SPRING, COMPRESSION (OPT) (BL-SL-BL)

SPRING, COMPRESSION (OPT) (BL-SL-BL)

2 990 ₽
5

8BV-17604-31-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

16 690 ₽
5

8BV-17604-11-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

16 690 ₽
5

8BV-17604-71-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

16 690 ₽
5

8BV-17604-91-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

16 690 ₽
5

8BV-17604-51-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)

16 690 ₽
6

90508-556A7-00 SPRING, TORSION (OPT) (SILVER)

SPRING, TORSION (OPT) (SILVER)

4 400 ₽
6

90508-500B1-00 SPRING, TORSION (OPT) (BROWN)

SPRING, TORSION (OPT) (BROWN)

2 200 ₽
6

90508-536A9-00 SPRING, TORSION (OPT) (RED)

SPRING, TORSION (OPT) (RED)

2 200 ₽
6

90508-556A2-00 SPRING, TORSION (OPT) (GREEN)

SPRING, TORSION (OPT) (GREEN)

3 300 ₽
7

8CM-17665-00-00 PLATE 1 (OPT)

PLATE 1 (OPT)

4 250 ₽
8

90150-05040-00 SCREW, ROUND HEAD (OPT)

SCREW, ROUND HEAD (OPT)

150 ₽
9

8CM-17675-00-00 PLATE 2 (OPT)

PLATE 2 (OPT)

4 250 ₽
10

90150-05040-00 SCREW, ROUND HEAD (OPT)

SCREW, ROUND HEAD (OPT)

150 ₽
