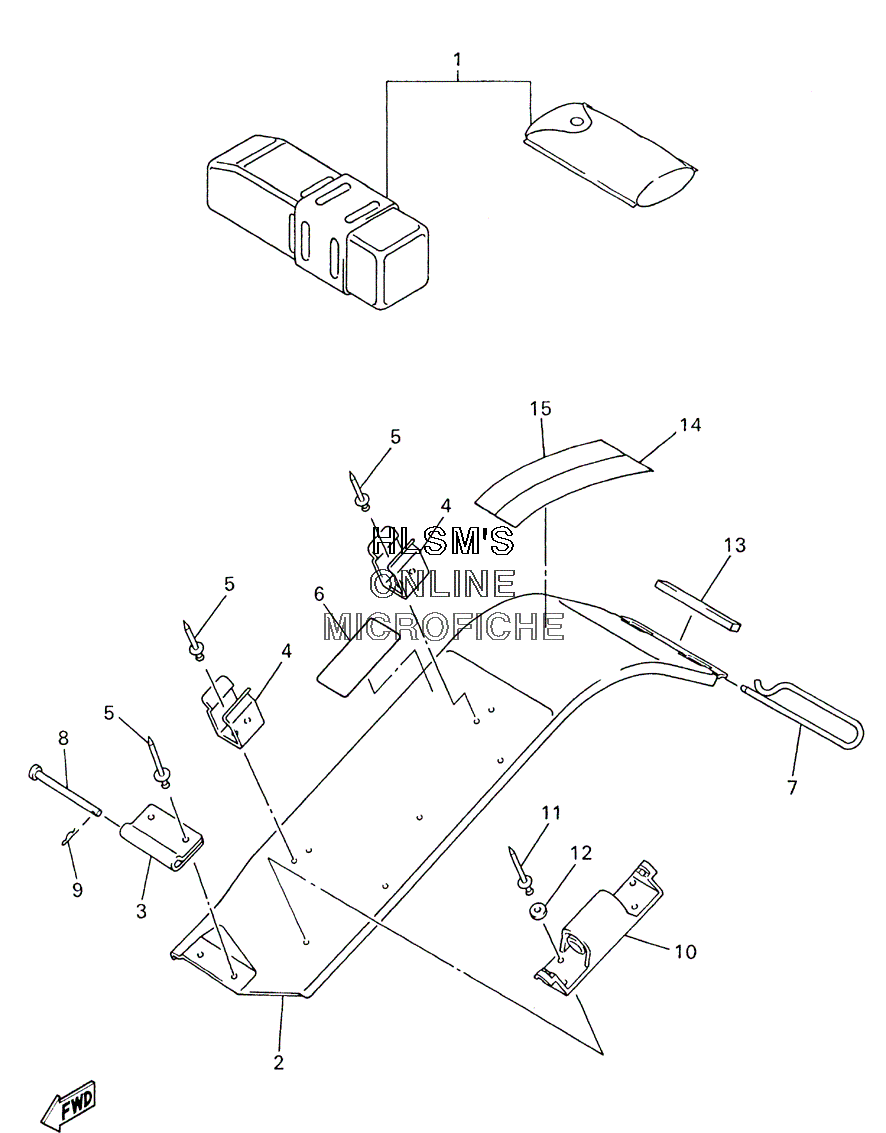

BELT GUARD W/ TOOL BOX для Yamaha VMAX 600 ER - 2003 года выпуска`
-
№АртикулНазвание
-
18DF-28100-00-00 TOOL KITTOOL KIT
-
28CR-77311-10-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77315-00-00 BRACKET 1BRACKET 1
-
48CR-77338-00-00 STAY, BELTSTAY, BELT
-
590267-48177-00 RIVET, BLINDRIVET, BLIND
-
68BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
78CR-77384-00-00 PINPIN
-
891701-06082-00 PIN, CLEVISPIN, CLEVIS
-
990468-18121-00 CLIPCLIP
-
108CR-77378-00-00 PLUG HOLDER ASSYPLUG HOLDER ASSY
-
1190267-48060-00 RIVET, BLINDRIVET, BLIND
-
1290201-057H5-00 WASHER, PLATEWASHER, PLATE
-
138CR-77319-00-00 DAMPER 1DAMPER 1
-
148CW-47578-00-00 LABEL 1LABEL 1
-
158DG-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
