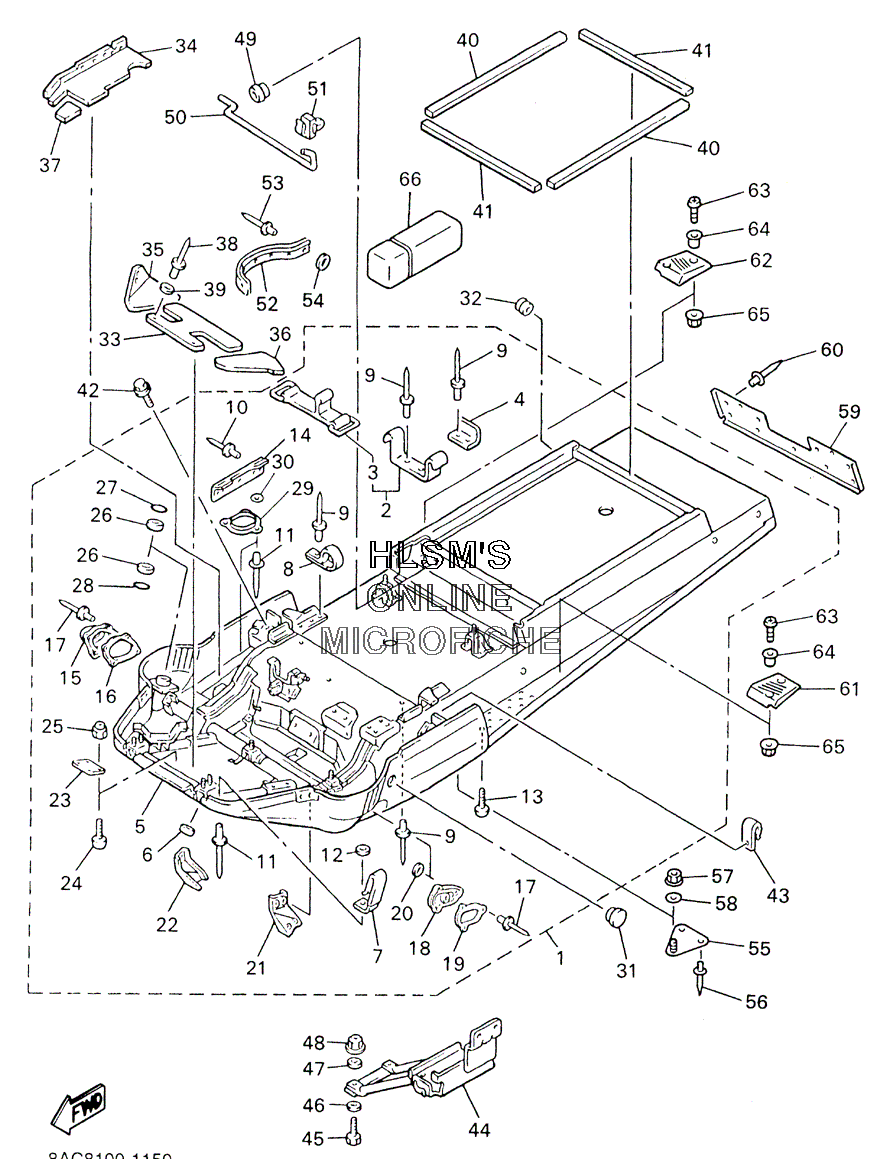

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VK 540 III - 2003 года выпуска`
-
№АртикулНазвание
-
18AC-21910-00-00 FRAME COMP.FRAME COMP.
-
281E-21945-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
34J2-82131-01-00 ......BAND, BATTERY......BAND, BATTERY
-
483R-21955-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
58AC-21912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
690387-081R2-00 ...COLLAR...COLLAR
-
790465-08368-00 ...CLAMP...CLAMP
-
890462-05059-00 ...CLAMP...CLAMP
-
990267-48060-00 ...RIVET, BLIND...RIVET, BLIND
-
1090267-48051-00 ...RIVET, BLIND...RIVET, BLIND
-
1190267-48141-00 ...RIVET, BLIND...RIVET, BLIND
-
1290201-04325-00 ...WASHER, PLATE...WASHER, PLATE
-
1398907-06016-00 ...SCREW, BIND...SCREW, BIND
-
148AT-77527-01-00 ...PLATE, BACK UP...PLATE, BACK UP
-
158AT-23818-00-00 ...COVER, STEERING...COVER, STEERING
-
168AT-77526-00-00 ...WASHER 2...WASHER 2
-
1790267-40029-00 ...RIVET, BLIND...RIVET, BLIND
-
188M6-2198F-00-00 ...COVER 1...COVER 1
-
198M6-21998-00-00 ...SPACER...SPACER
-
2090201-043H5-00 ...WASHER, PLATE...WASHER, PLATE
-
218AT-2194Y-00-00 ...BRACKET, FRONT GUARD 3...BRACKET, FRONT GUARD 3
-
228AT-2195Y-00-00 ...BRACKET, FRONT GUARD 4...BRACKET, FRONT GUARD 4
-
2389X-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
2498907-05014-00 ...SCREW, BIND...SCREW, BIND
-
2595707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
2690384-36134-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2793102-36232-00 ...OIL SEAL...OIL SEAL
-
2893103-36117-00 ...OIL SEAL...OIL SEAL
-
2983R-2198F-00-00 ...COVER 1...COVER 1
-
3090201-04325-00 ...WASHER, PLATE...WASHER, PLATE
-
3190338-44093-00 PLUGPLUG
-
3290480-15061-00 GROMMETGROMMET
-
338AT-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
348AC-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
358AT-77273-10-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
368AT-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
378AT-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
3890267-48141-00 RIVET, BLINDRIVET, BLIND
-
3990201-04325-00 WASHER, PLATEWASHER, PLATE
-
4083R-7717E-00-00 TAPE 1TAPE 1
-
4183R-7717F-00-00 TAPE 2TAPE 2
-
4295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4390465-08125-00 CLAMPCLAMP
-
448AT-2199G-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
4597027-06025-00 BOLTBOLT
-
4690201-06778-00 WASHER, PLATEWASHER, PLATE
-
4790201-063A5-00 WASHER, PLATEWASHER, PLATE
-
4895707-06300-00 NUT, FLANGENUT, FLANGE
-
4990480-10348-00 GROMMETGROMMET
-
5085R-2471A-00-00 STAY, SEATSTAY, SEAT
-
5185R-2639F-00-00 HOLDER, 2HOLDER, 2
-
528AT-2196T-00-00 TRIM 1TRIM 1
-
5390267-40172-00 RIVET, BLINDRIVET, BLIND
-
5490201-042E0-00 WASHER, PLATEWASHER, PLATE
-
558AC-2198G-00-00 COVER 2COVER 2
-
5690267-47186-00 RIVET, BLINDRIVET, BLIND
-
5795707-06300-00 NUT, FLANGENUT, FLANGE
-
5890201-067A0-00 WASHER, PLATEWASHER, PLATE
-
598AC-21933-00-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
6090267-47186-00 RIVET, BLINDRIVET, BLIND
-
6188T-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
6288T-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
6398907-06025-00 SCREW, BINDSCREW, BIND
-
6490387-063E6-00 COLLARCOLLAR
-
6595707-06500-00 NUT, FLANGENUT, FLANGE
-
6685L-28100-00-00 TOOL KITTOOL KIT
