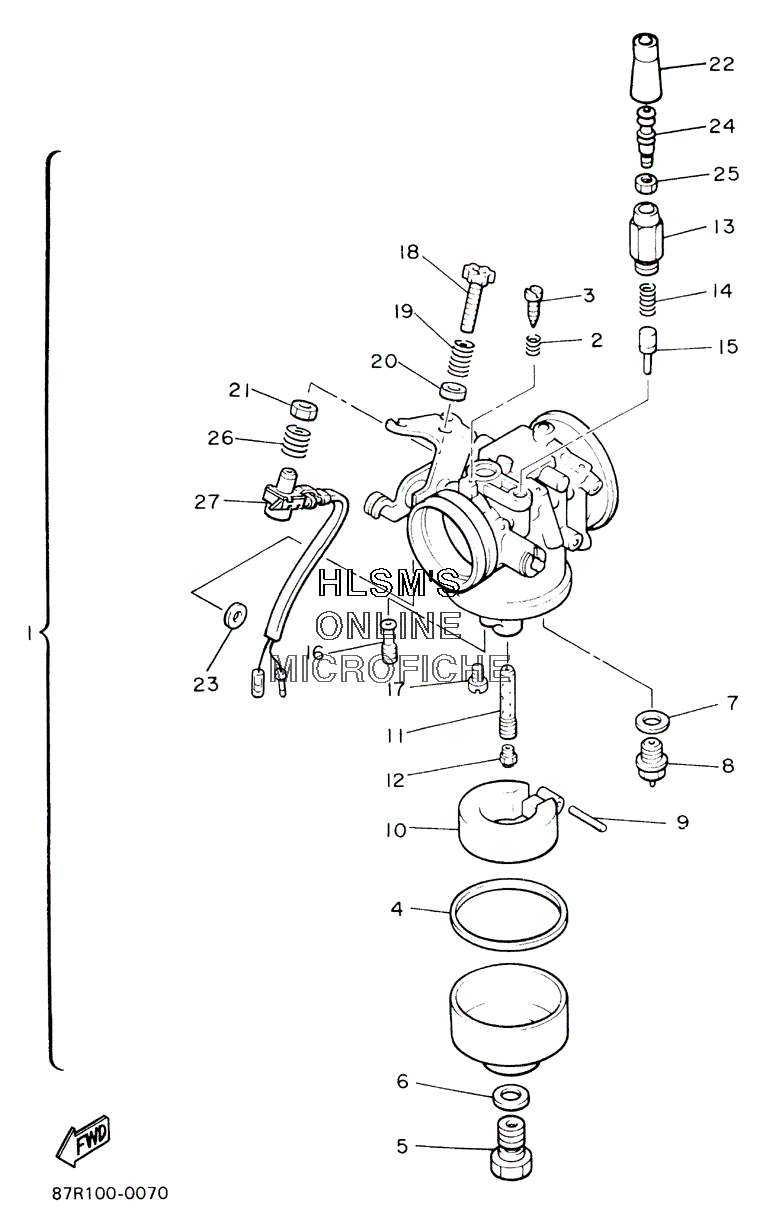

CARBURETOR ASSY для Yamaha VK 540 III - 2003 года выпуска`
-
№АртикулНазвание
-
184R-14101-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
282A-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
3620-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
48M6-14126-00-00 ...GASKET...GASKET
-
58M6-14261-00-00 ...HOLDER...HOLDER
-
6286-14198-00-00 ...GASKET...GASKET
-
7214-14195-00-00 ...WASHER, NEEDLE VALVE...WASHER, NEEDLE VALVE
-
883R-14190-15-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
98M6-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
108M6-14185-00-00 ...FLOAT...FLOAT
-
1183R-14941-4E-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
123G2-14231-27-00 ...JET, MAIN (#135) (OPT)...JET, MAIN (#135) (OPT)
-
123G2-14231-28-00 ...JET, MAIN (#140) (OPT)...JET, MAIN (#140) (OPT)
-
123G2-1414E-56-00 ...JET, MAIN (#141.3) (STD)...JET, MAIN (#141.3) (STD)
-
123G2-14231-77-00 ...JET, MAIN (#132.5) (OPT)...JET, MAIN (#132.5) (OPT)
-
123G2-14231-78-00 ...JET, MAIN (#137.5) (OPT)...JET, MAIN (#137.5) (OPT)
-
123G2-14231-79-00 ...JET, MAIN (#142.5) (OPT)...JET, MAIN (#142.5) (OPT)
-
138G8-14174-00-00 ...CAP, PLUNGER...CAP, PLUNGER
-
14127-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
158G8-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
16193-14142-90-00 ...JET, PILOT (# 90) (STD)...JET, PILOT (# 90) (STD)
-
16193-1414F-00-00 ...JET, PILOT (# 100) (OPT)...JET, PILOT (# 100) (OPT)
-
178V0-14118-00-00 ...CAP...CAP
-
188V0-14122-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
198X0-14500-00-00 ...SPRING...SPRING
-
208X0-14184-00-00 ...RING...RING
-
218V0-14358-00-00 ...NUT...NUT
-
228A7-14169-00-00 ...CAP...CAP
-
2380L-14227-00-00 ...WASHER...WASHER
-
24127-14124-20-00 ...SCREW, CABLE ADJUSTING...SCREW, CABLE ADJUSTING
-
25802-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
268X0-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
2787S-8259A-00-00 ...SWITCH, CARBURETOR...SWITCH, CARBURETOR
