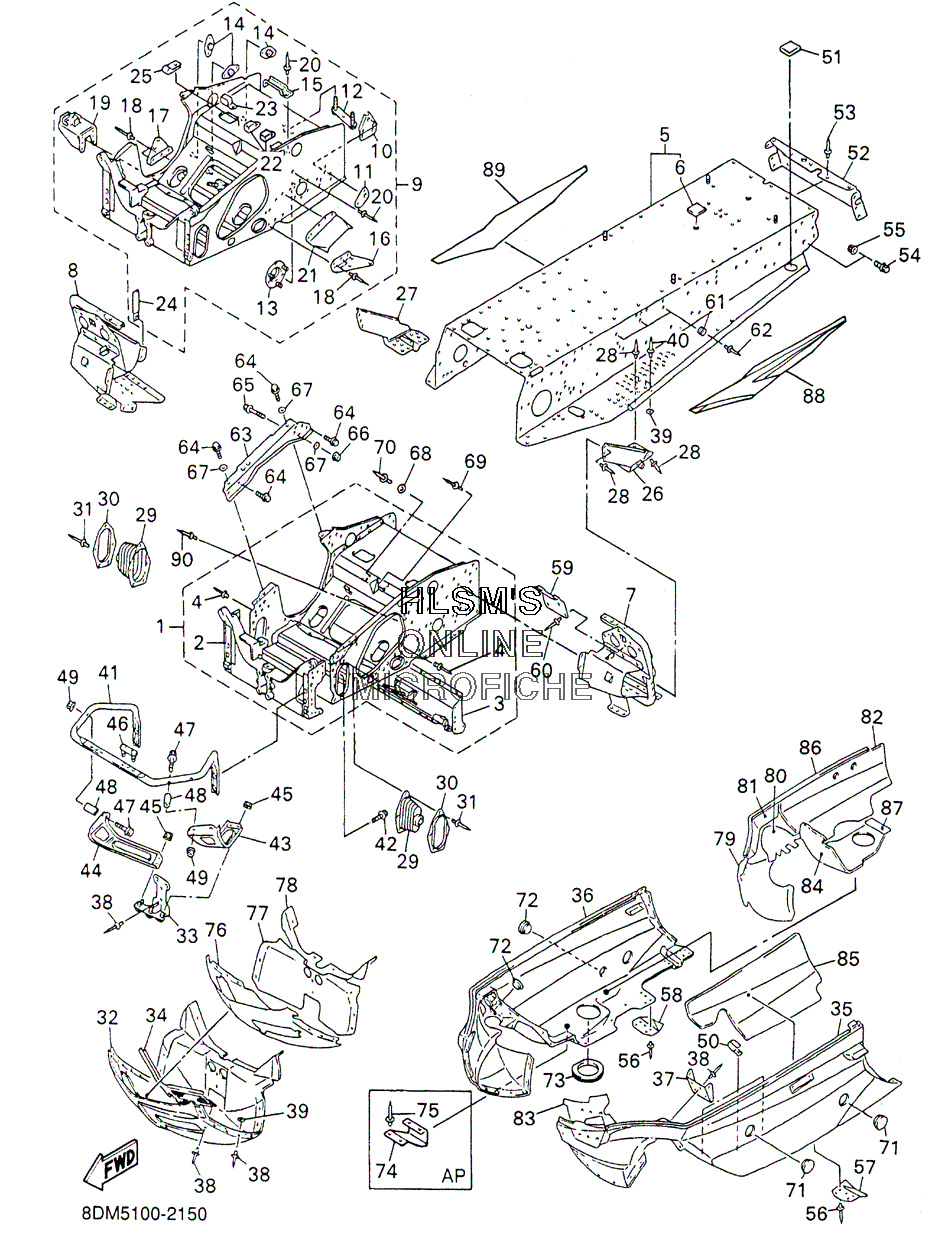

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VENTURE 600 - 2003 года выпуска`
-
№АртикулНазвание
-
18DG-21940-07-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28CR-2191A-02-00 ...BULKHEAD...BULKHEAD
-
38DG-12440-01-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
490267-48015-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
490267-48016-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
58EB-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
68DM-2198J-00-00 ...COVER 3...COVER 3
-
78CR-21960-08-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
88CR-21970-08-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
98CR-W2195-03-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
108CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
118CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
128CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
138CR-21920-00-00 ...HOUSING, REINF SUB-ASSY(L.H)...HOUSING, REINF SUB-ASSY(L.H)
-
148CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
168CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
178CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1890267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
198CR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2090267-47186-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
2090267-47197-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
218CR-2198G-00-00 ...COVER 2...COVER 2
-
2290461-05003-00 ...CLAMP...CLAMP
-
2390461-06142-00 ...CLAMP...CLAMP
-
2490462-05059-00 ...CLAMP...CLAMP
-
2590461-10148-00 ...CLAMP...CLAMP
-
268DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
278DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2890269-07080-00 RIVETRIVET
-
298CR-2198F-00-00 COVER 1COVER 1
-
308CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3190267-47197-00 RIVET, BLINDRIVET, BLIND
-
328CR-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
338CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
348CR-77128-00-00 STAY 4STAY 4
-
358CR-2196A-03-00 FRAME UNDER 1FRAME UNDER 1
-
368CR-2196E-03-00 FRAME, UNDER 2FRAME, UNDER 2
-
378CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3890267-48018-00 RIVET, BLINDRIVET, BLIND
-
3990201-05033-00 WASHER, PLATEWASHER, PLATE
-
4090267-47187-00 RIVET, BLINDRIVET, BLIND
-
418CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4295807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
438CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
448CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
468CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4795807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-0810F-00 COLLARCOLLAR
-
4995707-08500-00 NUT, FLANGENUT, FLANGE
-
5090465-08146-00 CLAMPCLAMP
-
518DM-2198J-00-00 COVER 3COVER 3
-
528CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5390267-47186-00 RIVET, BLINDRIVET, BLIND
-
5495027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
5595707-08500-00 NUT, FLANGENUT, FLANGE
-
5690267-48018-00 RIVET, BLINDRIVET, BLIND
-
578CR-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
588CR-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
598CR-21973-00-00 HOOKHOOK
-
6090267-48169-00 RIVET, BLINDRIVET, BLIND
-
6181K-2471F-00-00 BUTTONBUTTON
-
6290267-40069-00 RIVET, BLINDRIVET, BLIND
-
638CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6490105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6595827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6695707-10500-00 NUT, FLANGENUT, FLANGE
-
6792907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6890201-05033-00 WASHER, PLATEWASHER, PLATE
-
6990267-48016-00 RIVET, BLINDRIVET, BLIND
-
7090267-47187-00 RIVET, BLINDRIVET, BLIND
-
7190338-44093-00 PLUGPLUG
-
7290338-30256-00 PLUGPLUG
-
738DF-21998-00-00 SPACERSPACER
-
748CS-2197C-00-00 PROTECTOR, FRAME 3 (OPT)PROTECTOR, FRAME 3 (OPT)
-
7590267-48018-00 RIVET, BLIND (OPT)RIVET, BLIND (OPT)
-
768CR-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
778CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
788CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
798CR-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
808CR-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
818CR-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
828CR-77267-01-00 LINING, SHROUD 7LINING, SHROUD 7
-
838CR-77268-00-00 LINING,SHROUD 8LINING,SHROUD 8
-
848CR-77269-00-00 LINING,SHROUD 9LINING,SHROUD 9
-
858CR-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
868CR-7717J-00-00 TAPE,5TAPE,5
-
878CR-77165-00-00 TRIM 1TRIM 1
-
888DM-7711G-00-00 GRAPHIC 7 (VT600)GRAPHIC 7 (VT600)
-
888DM-7711G-10-00 GRAPHIC 7 (VT700)GRAPHIC 7 (VT700)
-
898DM-7711H-00-00 GRAPHIC 8 (VT600)GRAPHIC 8 (VT600)
-
898DM-7711H-10-00 GRAPHIC 8 (VT700)GRAPHIC 8 (VT700)
-
9090267-48016-00 RIVET, BLINDRIVET, BLIND
