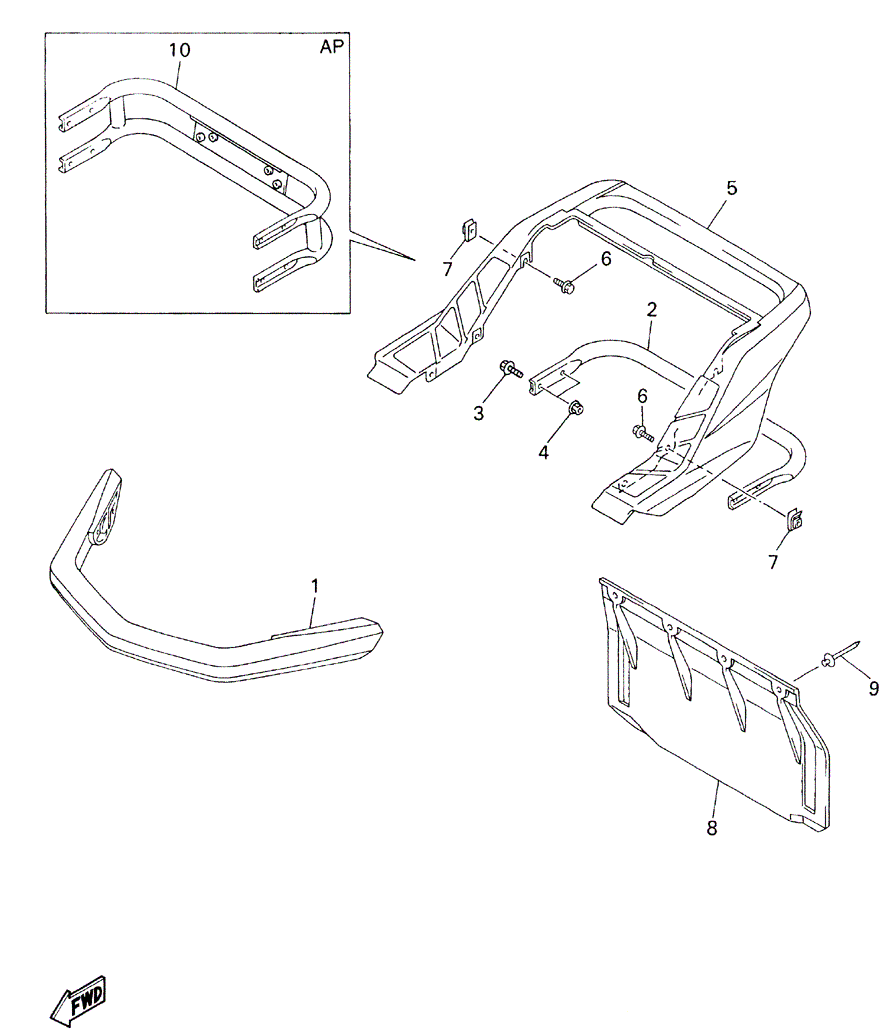

BUMPER - FRONT AND REAR для Yamaha VENTURE 600 - 2003 года выпуска`
-
№АртикулНазвание
-
18CR-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
28DF-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
395027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
495707-08500-00 NUT, FLANGENUT, FLANGE
-
58CW-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88DM-77595-00-00 FLAPFLAP
-
990267-47187-00 RIVET, BLINDRIVET, BLIND
-
108EB-77541-00-00 BUMPER, REAR 1 (OPT)BUMPER, REAR 1 (OPT)
