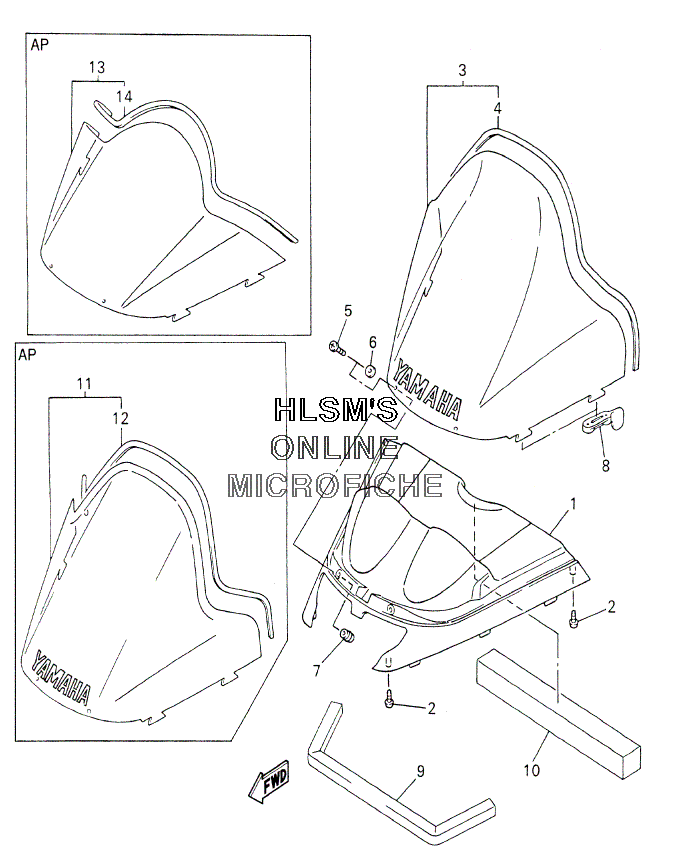

HOOD - WINDSHIELD ASSY для Yamaha VENTURE 600 - 2002 года выпуска`
-
№АртикулНазвание
-
18DN-77251-20-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
38DY-77210-10-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
48DM-77213-00-00 ....TRIM, UPPER (OPT)....TRIM, UPPER (OPT)
-
590150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690201-106H5-00 WASHER, PLATEWASHER, PLATE
-
790179-05523-00 NUTNUT
-
882H-77223-00-00 FASTNERFASTNER
-
98CR-77279-00-00 DAMPER, NOISE 19DAMPER, NOISE 19
-
108CR-2199J-00-00 SHIELD, NOISE 2SHIELD, NOISE 2
-
118DS-77210-10-00 WINDSHIELD COMP. (OPT)WINDSHIELD COMP. (OPT)
-
128CR-77213-00-00 ....TRIM, UPPER (OPT)....TRIM, UPPER (OPT)
-
138DN-77210-20-00 WINDSHIELD COMP. (OPT)WINDSHIELD COMP. (OPT)
-
148CV-77213-00-00 ....TRIM, UPPER (OPT)....TRIM, UPPER (OPT)
