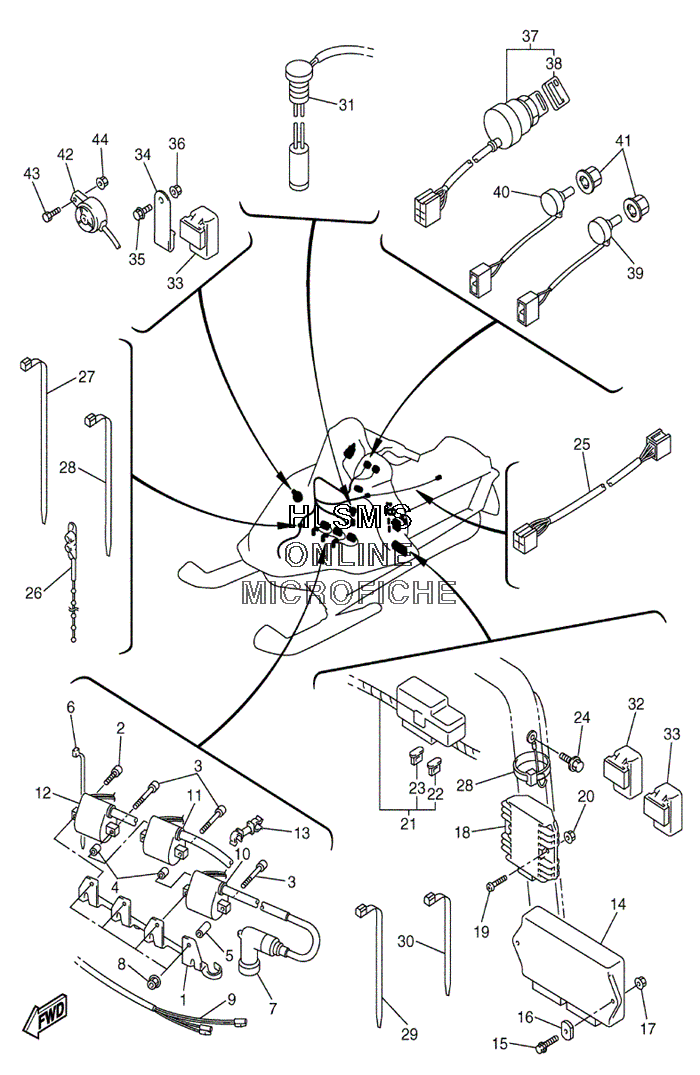

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VENTURE 600 - 2002 года выпуска`
-
№АртикулНазвание
-
18DM-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLTBOLT
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590387-07393-00 COLLARCOLLAR
-
690464-15195-00 CLAMPCLAMP
-
78DF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
98DM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
108DM-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118DF-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
128DM-82310-30-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1390464-10002-00 CLAMPCLAMP
-
148DM-85540-10-00 C.D.I. UNIT ASSY (VT700G)C.D.I. UNIT ASSY (VT700G)
-
148EA-85540-00-00 C.D.I. UNIT ASSY (VT600G)C.D.I. UNIT ASSY (VT600G)
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1690179-06264-00 NUTNUT
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
184JH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1998507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
218DM-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2242X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
232GV-82151-00-00 FUSE, 20 AMPFUSE, 20 AMP
-
2495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
258DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
2690464-20031-00 CLAMPCLAMP
-
2790464-12045-00 CLAMPCLAMP
-
2890464-15195-00 CLAMPCLAMP
-
2990464-13073-00 CLAMPCLAMP
-
3090464-13077-00 CLAMPCLAMP
-
318CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
325DM-81950-00-00 RELAY HEADLIGHTRELAY HEADLIGHT
-
338DM-81950-00-00 RELAY MAIN (LOAD)RELAY MAIN (LOAD)
-
348DM-85152-00-00 BRACKET 3BRACKET 3
-
3595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3695707-06500-00 NUT, FLANGENUT, FLANGE
-
378DM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
38526-82579-00-00 ......CAP, KEY......CAP, KEY
-
398DM-87283-00-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
408DM-87283-10-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
418DM-87284-00-00 KNOB, VARIABLE RESISTORKNOB, VARIABLE RESISTOR
-
428CW-83383-00-00 BUZZERBUZZER
-
4397007-05020-00 BOLTBOLT
-
4495707-05500-00 NUT, FLANGENUT, FLANGE
